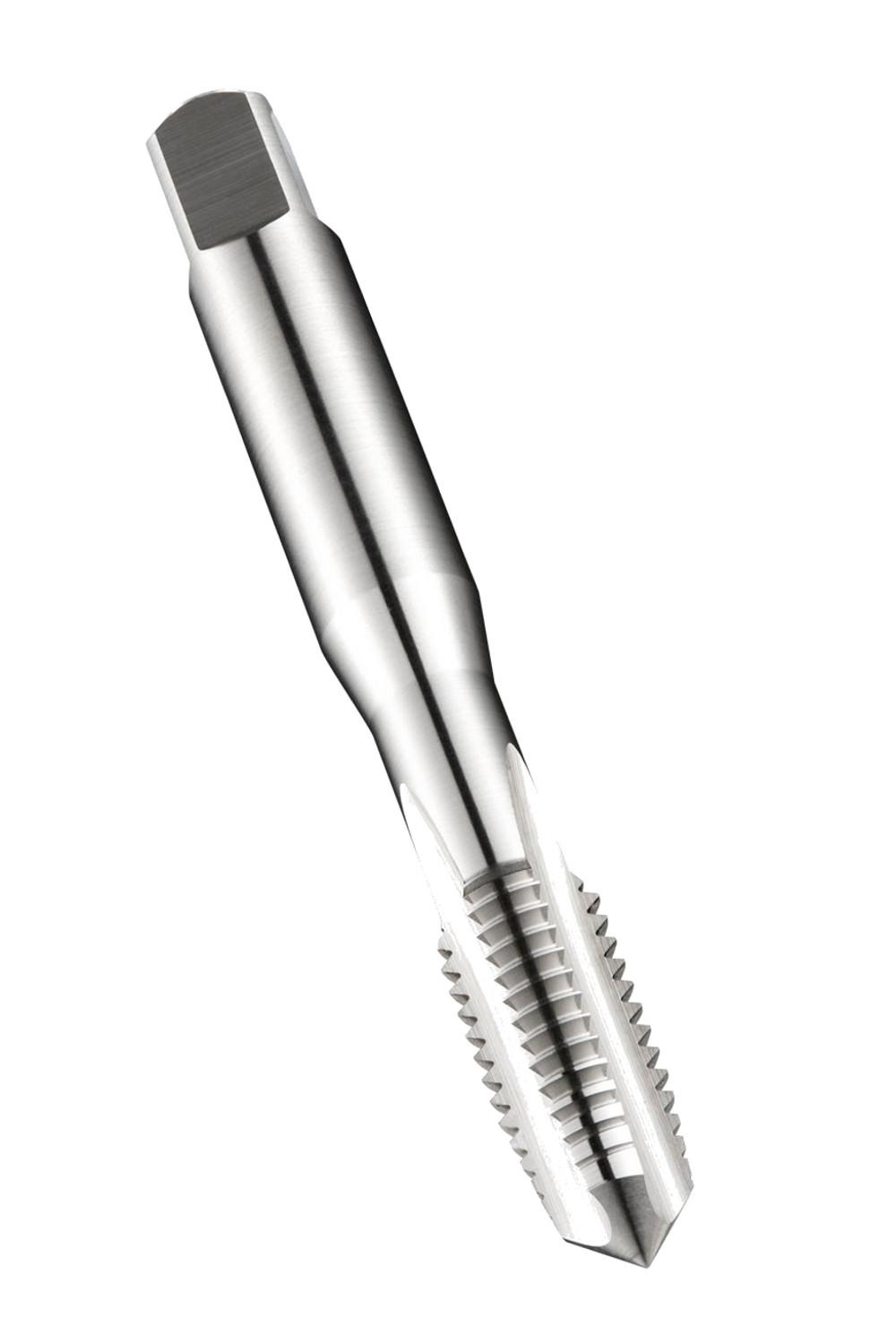

DORMER E500M1.4NO2 HSS Straight Flute Taps

Description: Value
Product name: E500M1.4NO2
Product number (SAP): 86016251
EAN number: 7320760160206

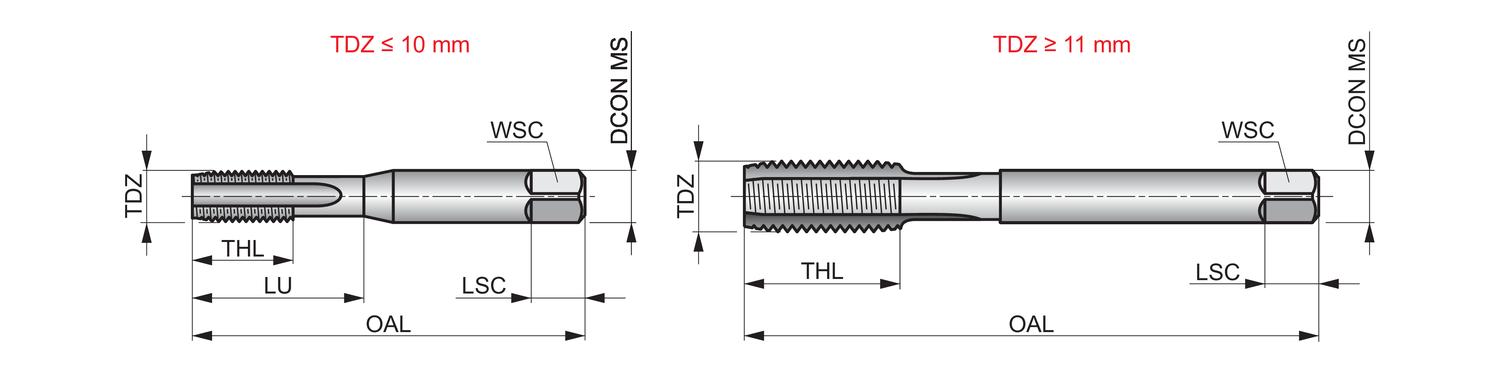

Thread diameter size (TDZ): 1.4
Thread pitch – millimeter (TP): 0.3 mm
Overall length – millimeter (OAL): 40 mm
Overall length – inch (OAL): 1.5748 inch
Threading length – millimeter (THL): 6 mm
Threading length – inch (THL): 0.2362 inch
Connection diameter – inch (DCON MS): 0.0984 inch
Connection diameter – millimeter (DCON MS): 2.5 mm
Flute count (NOF): 2
Usable Length – inch (LU): 0.2362 inch
Usable Length – millimeter (LU): 6 mm
Clamping width – inch (WSC): 0.0787 inch
Clamping width – millimeter (WSC): 2 mm
Clamping Length – inch (LCS): 0.1575 inch
Clamping Length – millimeter (LSC): 4 mm
Premachined hole diameter – inch (PHD): 0.0433 inch
Premachined hole diameter – millimeter (PHD): 1.1 mm
Gross weight – grams: 4
ISO: E500M1.4NO2
Ordering code ANSI: E500M1.4NO2
