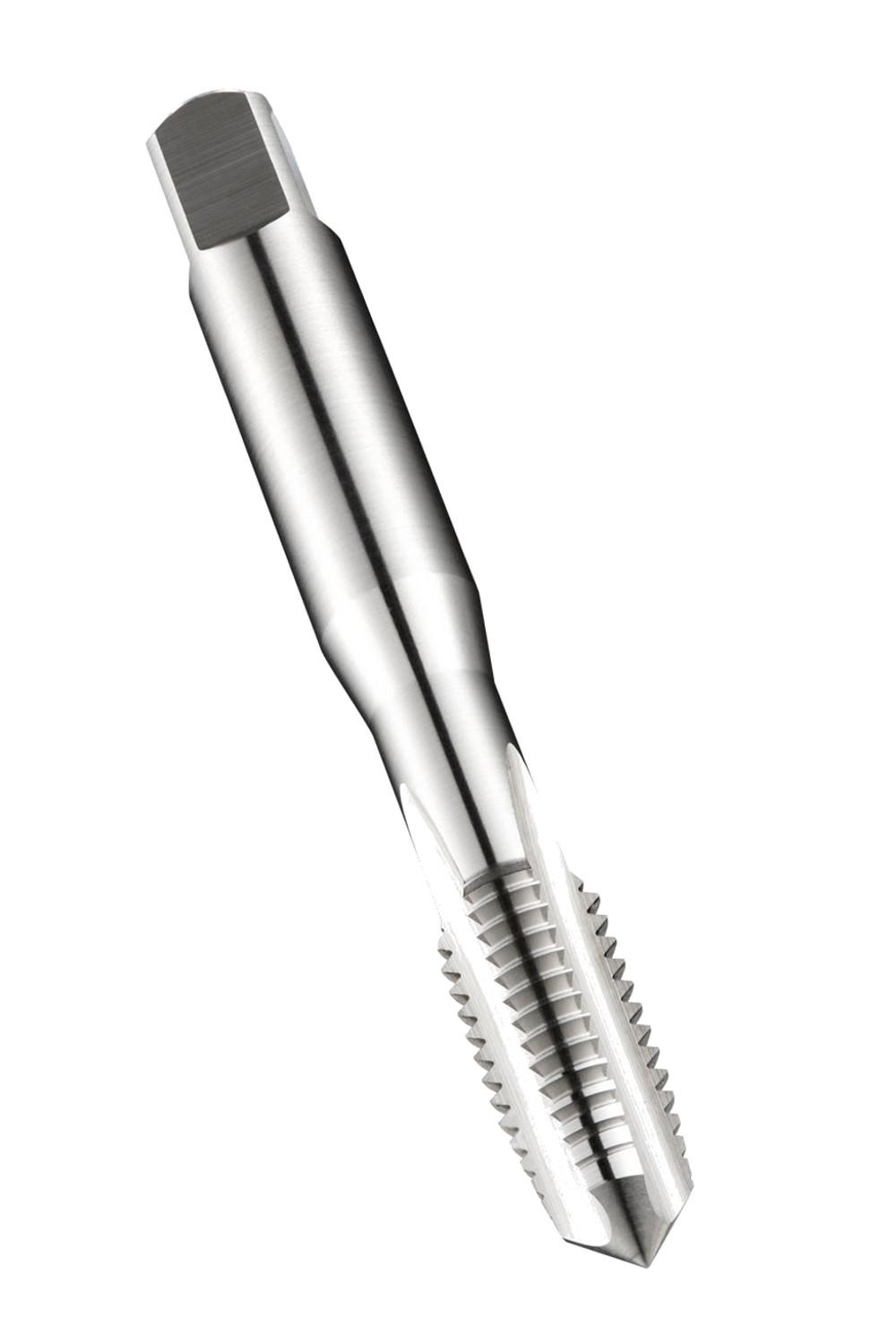

DORMER E500M1.6NO2 HSS Straight Flute Taps

Description: Value
Product name: E500M1.6NO2
Product number (SAP): 86016255
EAN number: 7320760139950

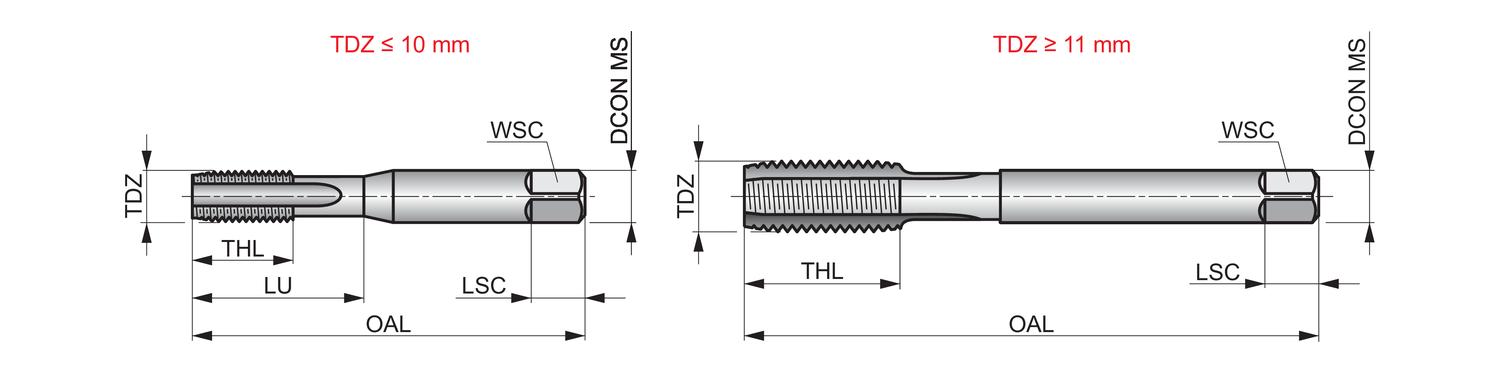

Thread diameter size (TDZ): 1.6
Thread pitch – millimeter (TP): 0.35 mm
Overall length – millimeter (OAL): 41 mm
Overall length – inch (OAL): 1.6142 inch
Threading length – millimeter (THL): 8 mm
Threading length – inch (THL): 0.315 inch
Connection diameter – inch (DCON MS): 0.0984 inch
Connection diameter – millimeter (DCON MS): 2.5 mm
Flute count (NOF): 2
Usable Length – inch (LU): 0.315 inch
Usable Length – millimeter (LU): 8 mm
Clamping width – inch (WSC): 0.0787 inch
Clamping width – millimeter (WSC): 2 mm
Clamping Length – inch (LCS): 0.1575 inch
Clamping Length – millimeter (LSC): 4 mm
Premachined hole diameter – inch (PHD): 0.0492 inch
Premachined hole diameter – millimeter (PHD): 1.25 mm
Gross weight – grams: 3.5
ISO: E500M1.6NO2
Ordering code ANSI: E500M1.6NO2
