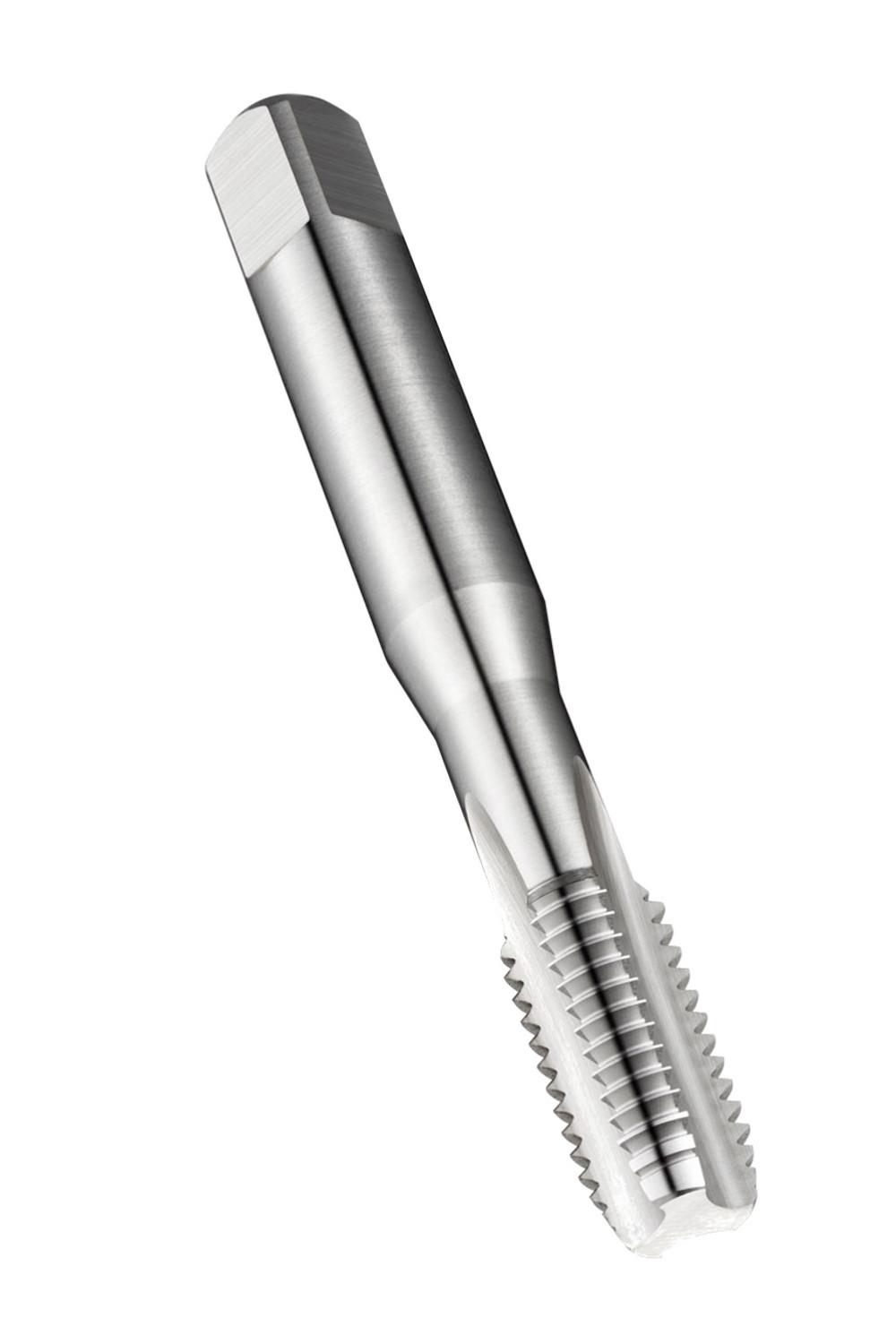

DORMER E500M11NO3 HSS Straight Flute Taps

Description: Value
Product name: E500M11NO3
Product number (SAP): 86016277
EAN number: 7320760094013

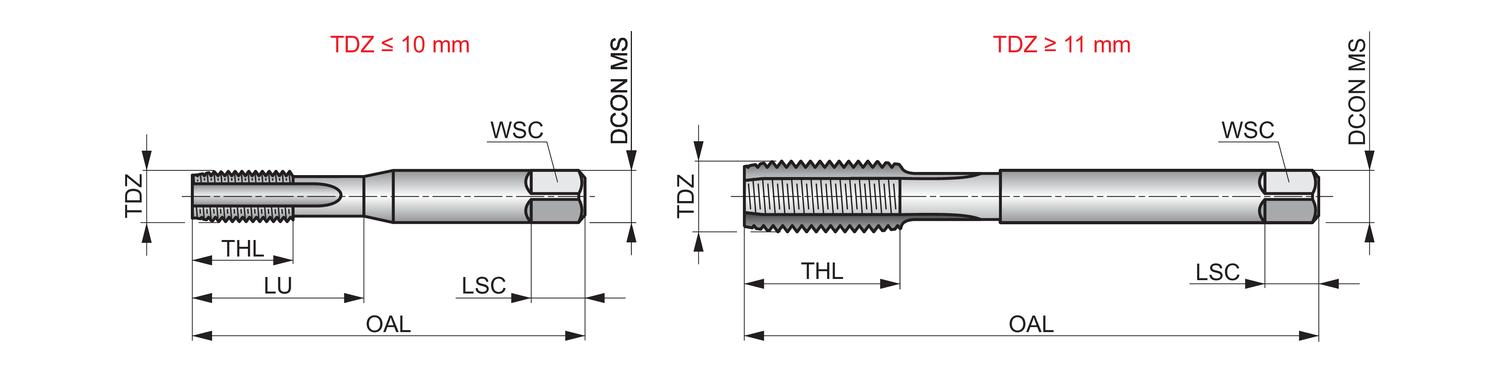

Thread diameter size (TDZ): 11
Thread pitch – millimeter (TP): 1.5 mm
Overall length – millimeter (OAL): 85 mm
Overall length – inch (OAL): 3.3465 inch
Threading length – millimeter (THL): 19 mm
Threading length – inch (THL): 0.748 inch
Connection diameter – inch (DCON MS): 0.315 inch
Connection diameter – millimeter (DCON MS): 8 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.248 inch
Clamping width – millimeter (WSC): 6.3 mm
Clamping Length – inch (LCS): 0.3543 inch
Clamping Length – millimeter (LSC): 9 mm
Premachined hole diameter – inch (PHD): 0.374 inch
Premachined hole diameter – millimeter (PHD): 9.5 mm
Gross weight – grams: 40.6
ISO: E500M11NO3
Ordering code ANSI: E500M11NO3
