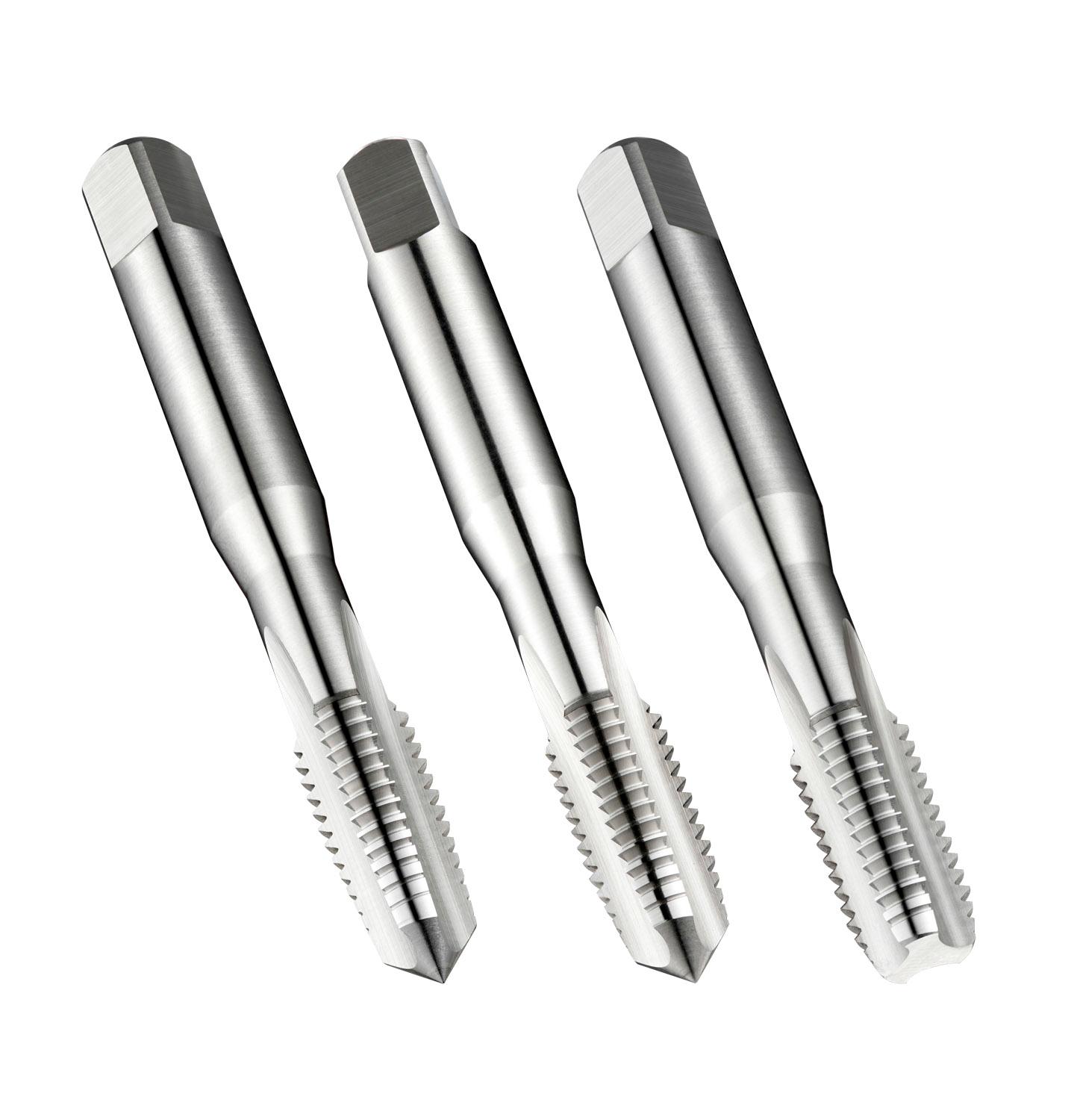

DORMER E500M11NO6 HSS Straight Flute Taps

Description

Set of straight flute hand taps NO6 for ISO-Metric thread M11 with 1.50 mm pitch and 6H class of fit, consisting of 1 tap with a 6-8xP taper lead, 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ISO 529 standard with 8.0mm shank and 6.3mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Additional information

Weight	0.1914 kg
Dimensions
barcode

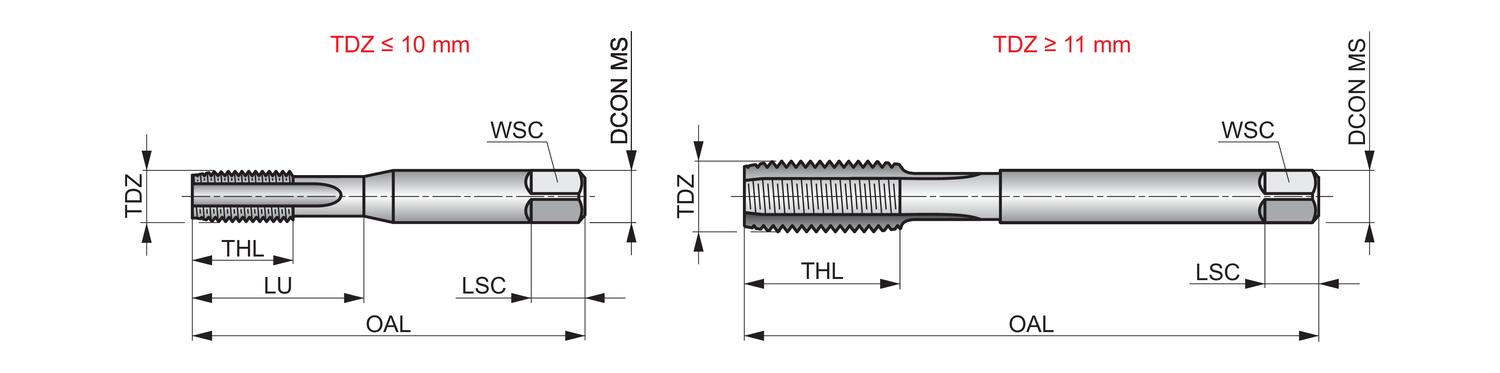

Additional Information	Description: Value Product name: E500M11NO6 Product number (SAP): 86016278 EAN number: 7320760154588 Thread diameter size (TDZ): 11 Thread pitch – millimeter (TP): 1.5 mm Overall length – millimeter (OAL): 85 mm Overall length – inch (OAL): 3.3465 inch Threading length – millimeter (THL): 19 mm Threading length – inch (THL): 0.748 inch Connection diameter – inch (DCON MS): 0.315 inch Connection diameter – millimeter (DCON MS): 8 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.248 inch Clamping width – millimeter (WSC): 6.3 mm Clamping Length – inch (LCS): 0.3543 inch Clamping Length – millimeter (LSC): 9 mm Premachined hole diameter – inch (PHD): 0.374 inch Premachined hole diameter – millimeter (PHD): 9.5 mm Gross weight – grams: 132 ISO: E500M11NO6 Ordering code ANSI: E500M11NO6

Need Technical Advice?

Description

Additional information

Brand

DORMER
