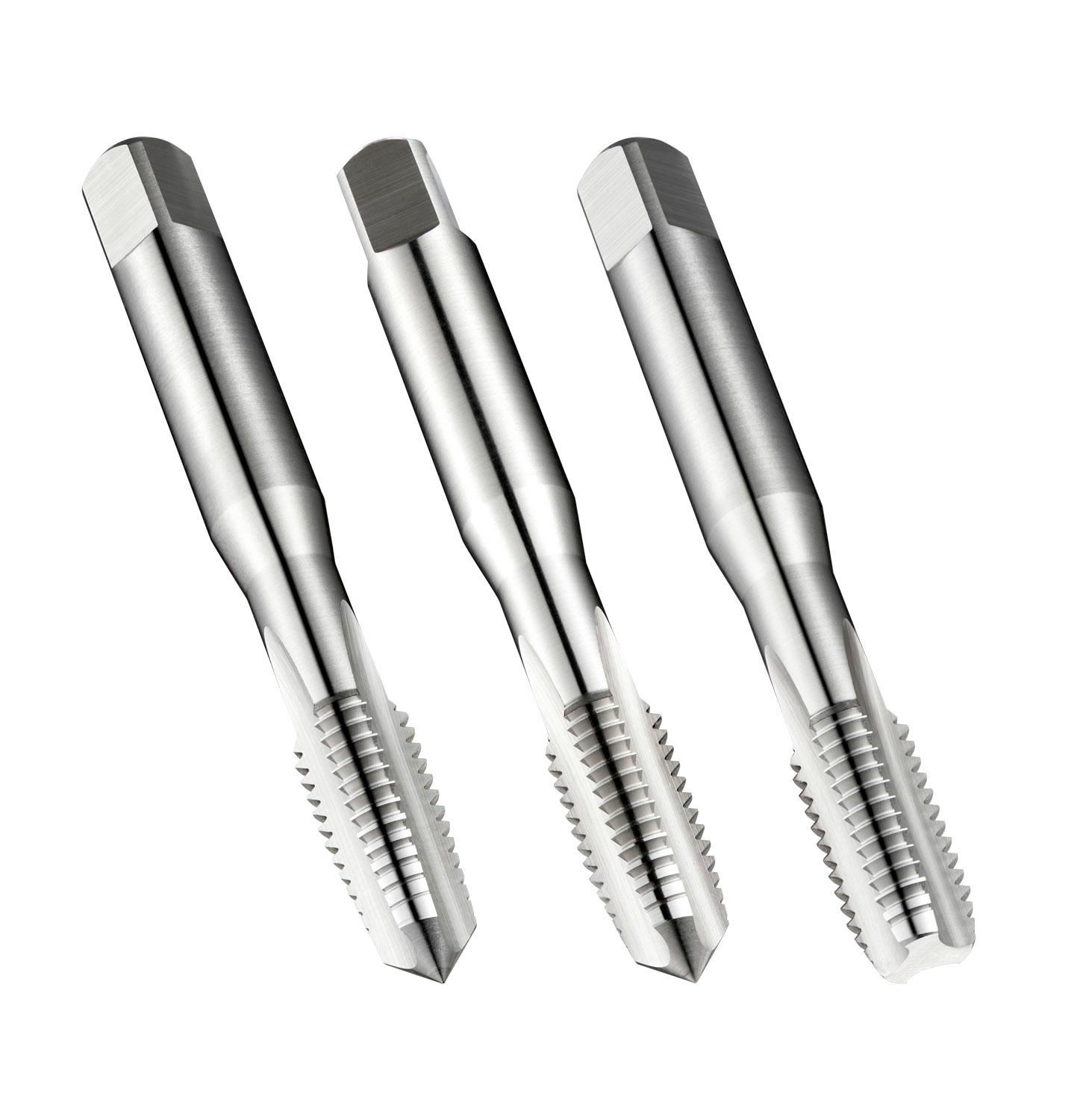

DORMER E500M12NO6 HSS Straight Flute Taps

Description: Value
Product name: E500M12NO6
Product number (SAP): 86016283
EAN number: 7320760094051

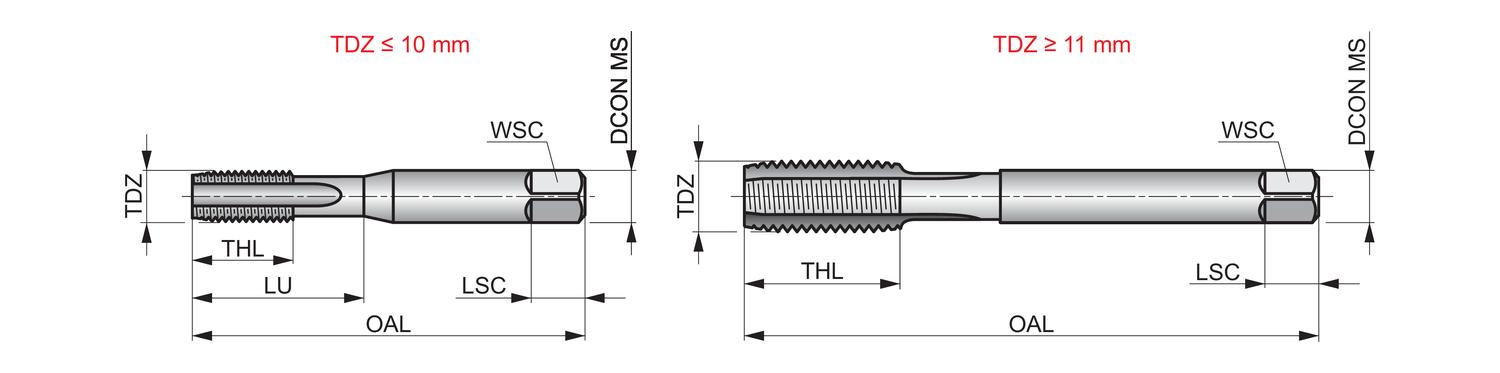

Thread diameter size (TDZ): 12
Thread pitch – millimeter (TP): 1.75 mm
Overall length – millimeter (OAL): 89 mm
Overall length – inch (OAL): 3.5039 inch
Threading length – millimeter (THL): 22 mm
Threading length – inch (THL): 0.8661 inch
Connection diameter – inch (DCON MS): 0.3543 inch
Connection diameter – millimeter (DCON MS): 9 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.2795 inch
Clamping width – millimeter (WSC): 7.1 mm
Clamping Length – inch (LCS): 0.3937 inch
Clamping Length – millimeter (LSC): 10 mm
Premachined hole diameter – inch (PHD): 0.4055 inch
Premachined hole diameter – millimeter (PHD): 10.3 mm
Gross weight – grams: 160.7
ISO: E500M12NO6
Ordering code ANSI: E500M12NO6
