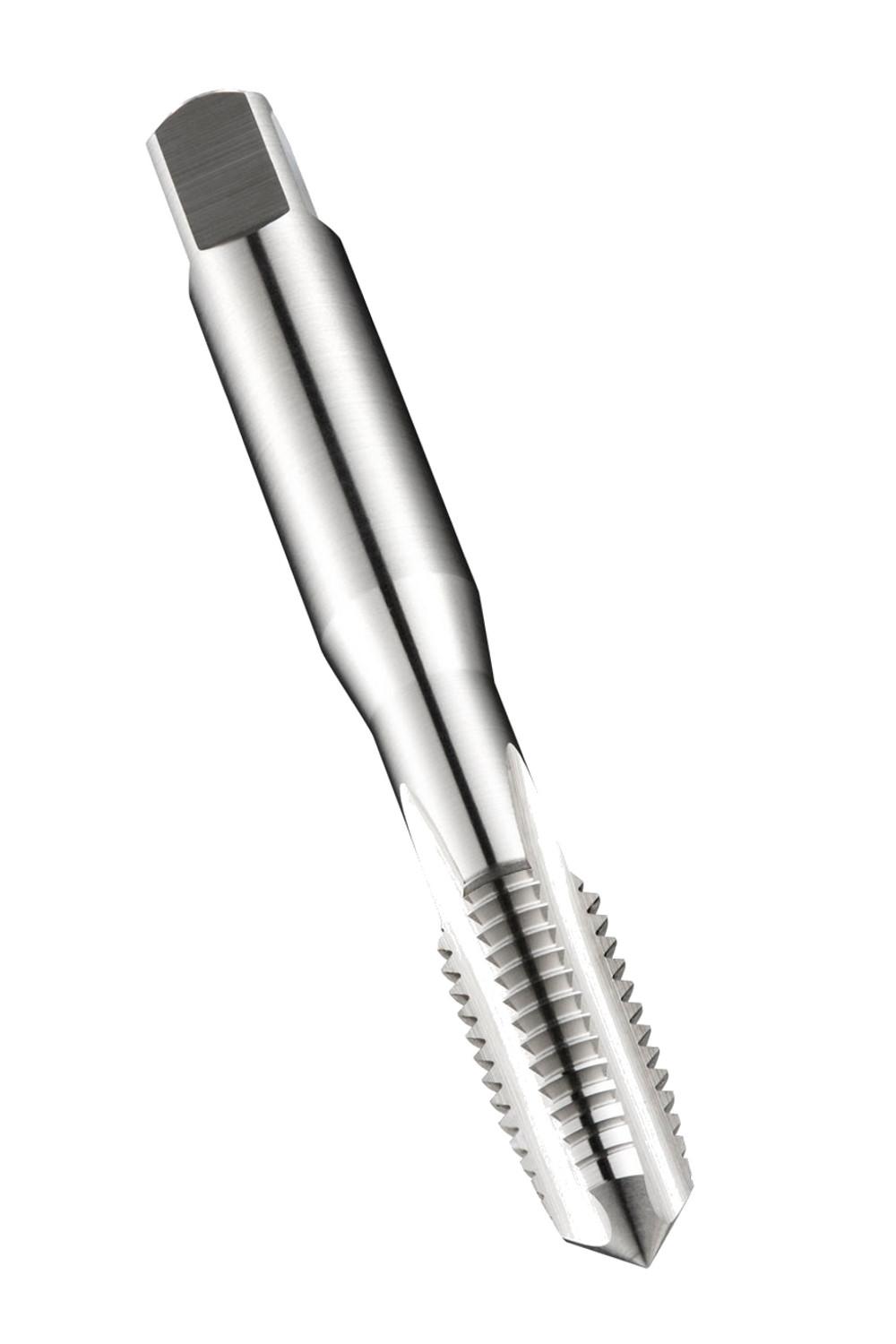

DORMER E500M16NO2 HSS Straight Flute Taps

Description: Value
Product name: E500M16NO2
Product number (SAP): 86016293
EAN number: 7320760094105
Thread diameter size (TDZ): 16
Thread pitch – millimeter (TP): 2 mm
Overall length – millimeter (OAL): 102 mm
Overall length – inch (OAL): 4.0157 inch
Threading length – millimeter (THL): 24 mm
Threading length – inch (THL): 0.9449 inch
Connection diameter – inch (DCON MS): 0.4921 inch
Connection diameter – millimeter (DCON MS): 12.5 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.3937 inch
Clamping width – millimeter (WSC): 10 mm
Clamping Length – inch (LCS): 0.5118 inch
Clamping Length – millimeter (LSC): 13 mm
Premachined hole diameter – inch (PHD): 0.5512 inch
Premachined hole diameter – millimeter (PHD): 14 mm
Gross weight – grams: 97.6
ISO: E500M16NO2
Ordering code ANSI: E500M16NO2
