DORMER E500M16NO7 HSS Straight Flute Taps

Description

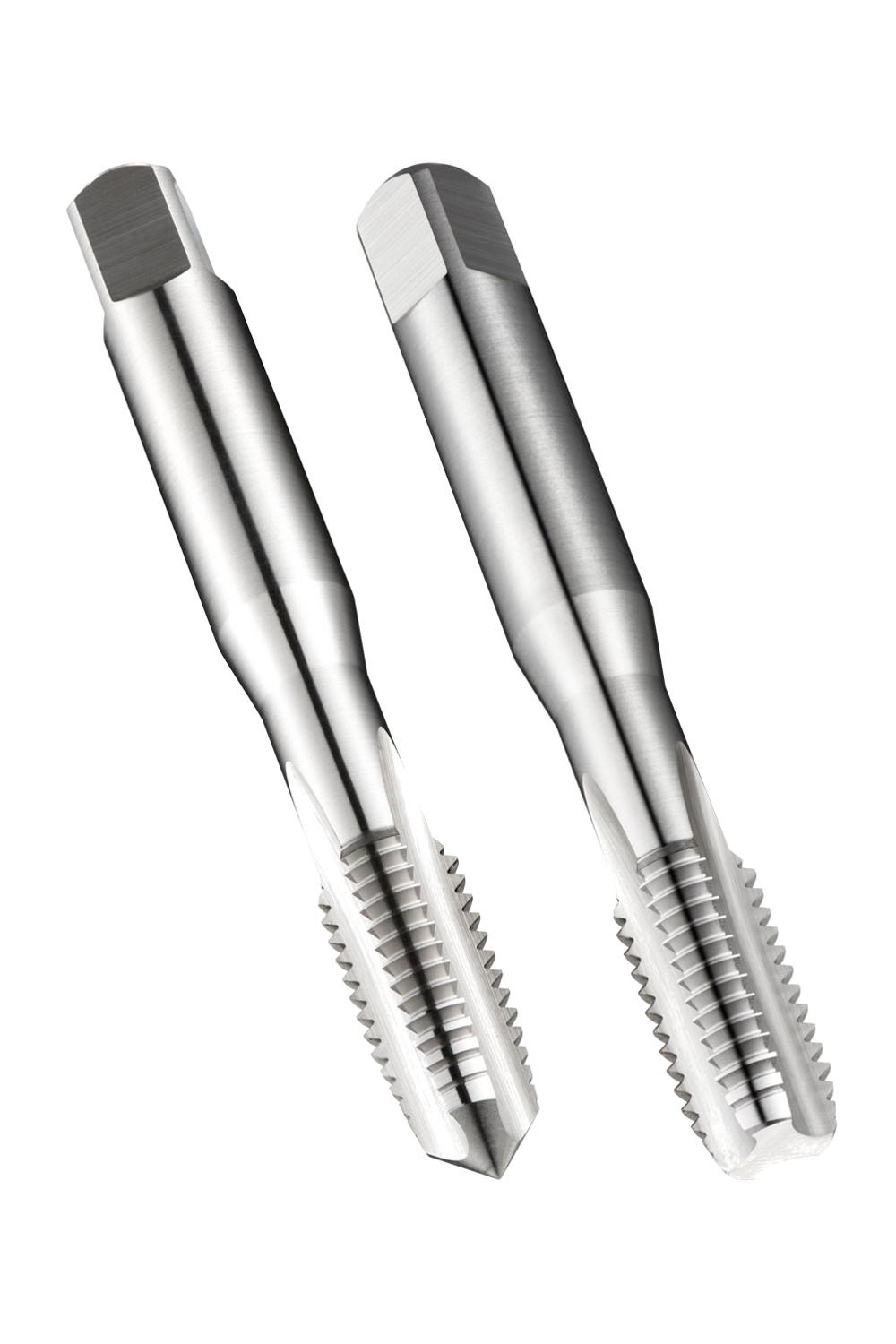

Set of straight flute hand taps NO7 for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, consisting of 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ISO 529 standard with 12.5mm shank and 10.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Additional information

Weight	0.1419 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E500M16NO7 Product number (SAP): 86016296 EAN number: 7320760154502 Thread diameter size (TDZ): 16 Thread pitch – millimeter (TP): 2 mm Overall length – millimeter (OAL): 102 mm Overall length – inch (OAL): 4.0157 inch Threading length – millimeter (THL): 24 mm Threading length – inch (THL): 0.9449 inch Connection diameter – inch (DCON MS): 0.4921 inch Connection diameter – millimeter (DCON MS): 12.5 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.3937 inch Clamping width – millimeter (WSC): 10 mm Clamping Length – inch (LCS): 0.5118 inch Clamping Length – millimeter (LSC): 13 mm Premachined hole diameter – inch (PHD): 0.5512 inch Premachined hole diameter – millimeter (PHD): 14 mm Gross weight – grams: 215.4 ISO: E500M16NO7 Ordering code ANSI: E500M16NO7

Need Technical Advice?

Description

Additional information

Brand

DORMER
