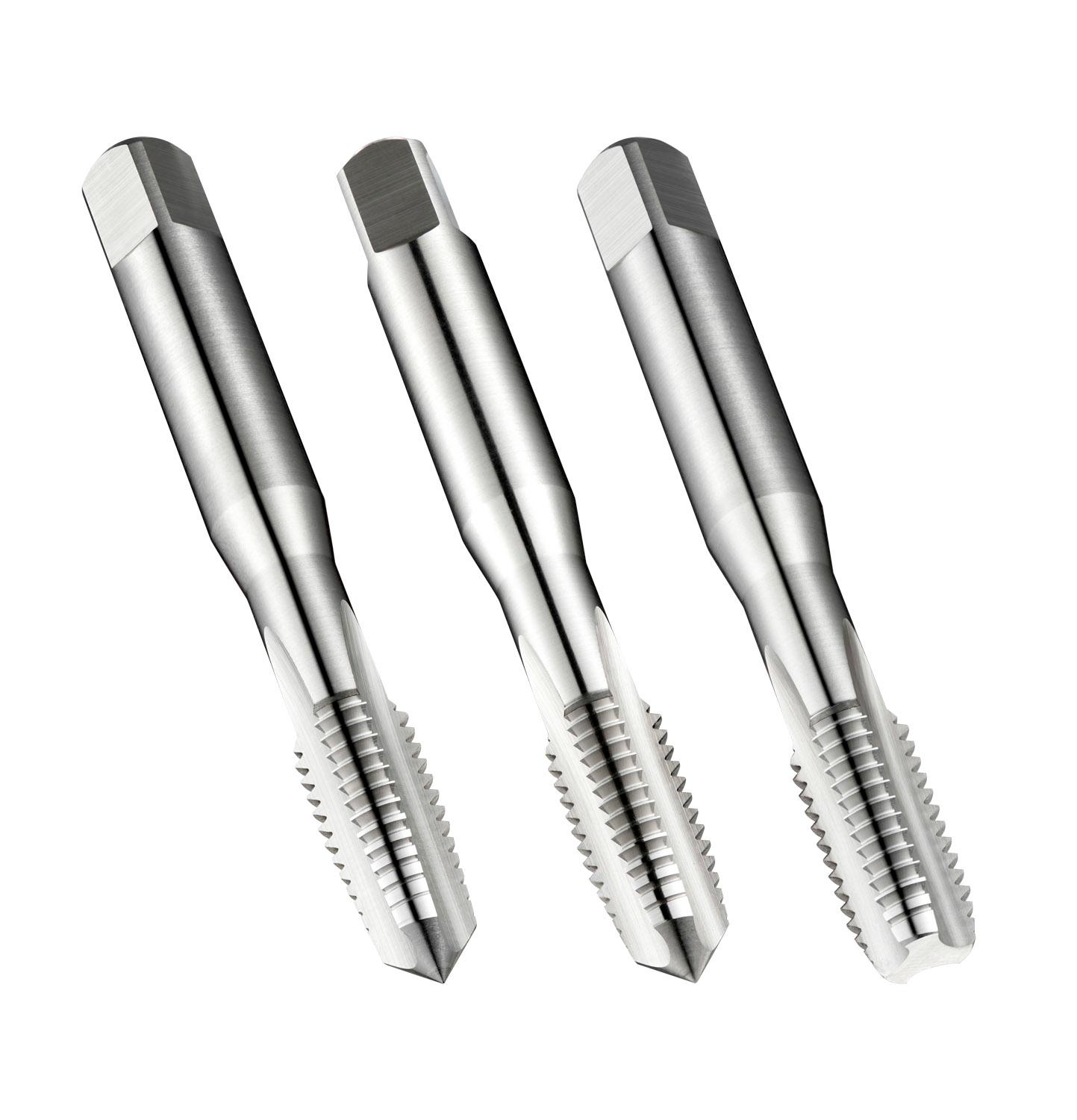

DORMER E500M2.5NO6 HSS Straight Flute Taps

Description: Value
Product name: E500M2.5NO6
Product number (SAP): 86016320
EAN number: 7320760154847
Thread diameter size (TDZ): 2.5
Thread pitch – millimeter (TP): 0.45 mm
Overall length – millimeter (OAL): 44.5 mm
Overall length – inch (OAL): 1.752 inch
Threading length – millimeter (THL): 9.5 mm
Threading length – inch (THL): 0.374 inch
Connection diameter – inch (DCON MS): 0.1102 inch
Connection diameter – millimeter (DCON MS): 2.8 mm
Flute count (NOF): 3
Usable Length – inch (LU): 0.374 inch
Usable Length – millimeter (LU): 9.5 mm
Clamping width – inch (WSC): 0.0882 inch
Clamping width – millimeter (WSC): 2.24 mm
Clamping Length – inch (LCS): 0.1969 inch
Clamping Length – millimeter (LSC): 5 mm
Premachined hole diameter – inch (PHD): 0.0807 inch
Premachined hole diameter – millimeter (PHD): 2.05 mm
Gross weight – grams: 13
ISO: E500M2.5NO6
Ordering code ANSI: E500M2.5NO6
