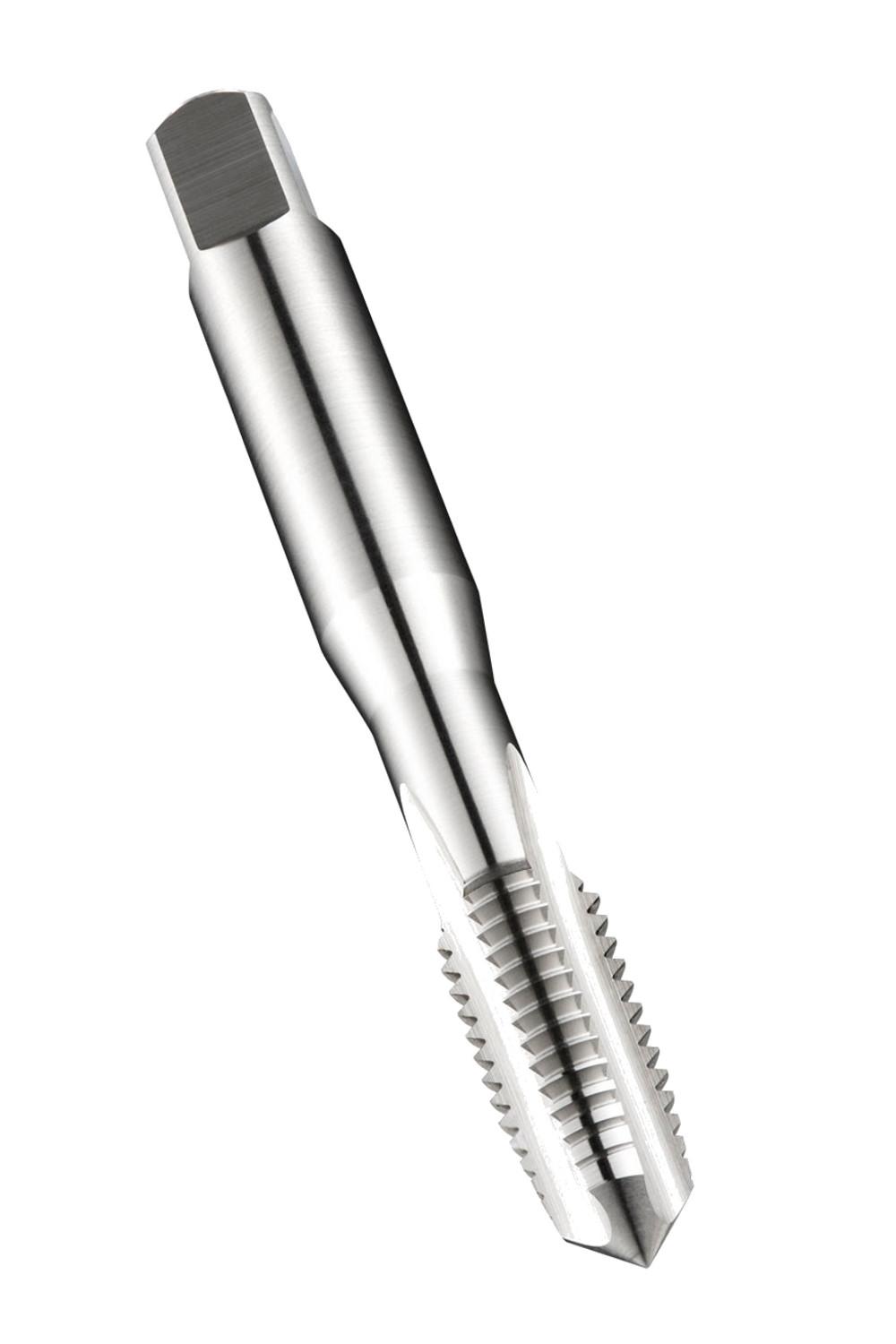

DORMER E500M20NO2 HSS Straight Flute Taps

Description: Value
Product name: E500M20NO2
Product number (SAP): 86016328
EAN number: 7320760150719
Thread diameter size (TDZ): 20
Thread pitch – millimeter (TP): 2.5 mm
Overall length – millimeter (OAL): 112 mm
Overall length – inch (OAL): 4.4094 inch
Threading length – millimeter (THL): 29 mm
Threading length – inch (THL): 1.1417 inch
Connection diameter – inch (DCON MS): 0.5512 inch
Connection diameter – millimeter (DCON MS): 14 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.4409 inch
Clamping width – millimeter (WSC): 11.2 mm
Clamping Length – inch (LCS): 0.5512 inch
Clamping Length – millimeter (LSC): 14 mm
Premachined hole diameter – inch (PHD): 0.689 inch
Premachined hole diameter – millimeter (PHD): 17.5 mm
Gross weight – grams: 138.6
ISO: E500M20NO2
Ordering code ANSI: E500M20NO2
