DORMER E500M20NO7 HSS Straight Flute Taps

Description

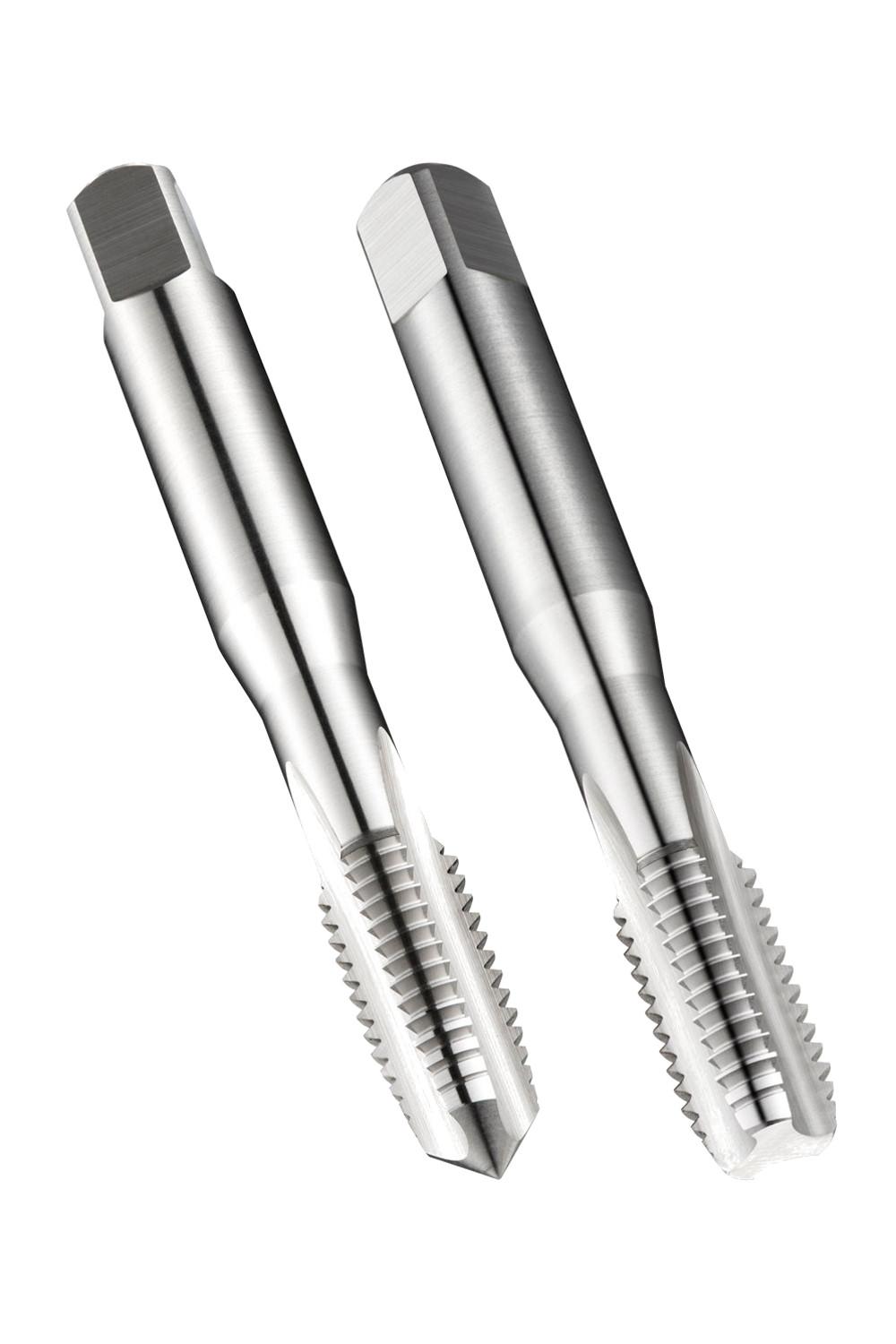

Set of straight flute hand taps NO7 for ISO-Metric thread M20 with 2.50 mm pitch and 6H class of fit, consisting of 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ISO 529 standard with 14.0mm shank and 11.2mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Additional information

Weight	0.2255 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E500M20NO7 Product number (SAP): 86016331 EAN number: 7320760154441 Thread diameter size (TDZ): 20 Thread pitch – millimeter (TP): 2.5 mm Overall length – millimeter (OAL): 112 mm Overall length – inch (OAL): 4.4094 inch Threading length – millimeter (THL): 29 mm Threading length – inch (THL): 1.1417 inch Connection diameter – inch (DCON MS): 0.5512 inch Connection diameter – millimeter (DCON MS): 14 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.4409 inch Clamping width – millimeter (WSC): 11.2 mm Clamping Length – inch (LCS): 0.5512 inch Clamping Length – millimeter (LSC): 14 mm Premachined hole diameter – inch (PHD): 0.689 inch Premachined hole diameter – millimeter (PHD): 17.5 mm Gross weight – grams: 338.4 ISO: E500M20NO7 Ordering code ANSI: E500M20NO7

Need Technical Advice?

Description

Additional information

Brand

DORMER
