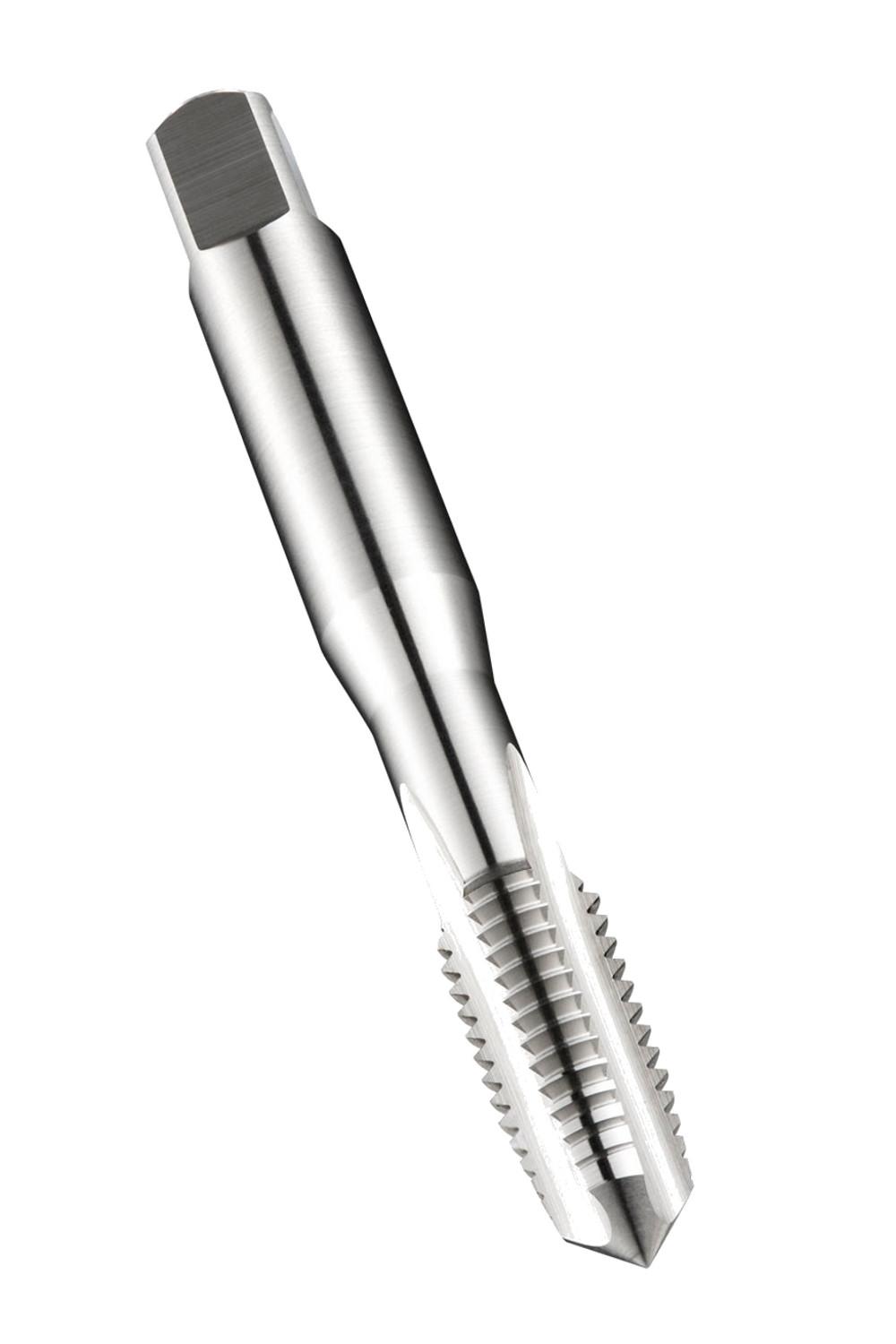

DORMER E500M22NO2 HSS Straight Flute Taps

Description: Value
Product name: E500M22NO2
Product number (SAP): 86016334
EAN number: 7320760094310
Thread diameter size (TDZ): 22
Thread pitch – millimeter (TP): 2.5 mm
Overall length – millimeter (OAL): 118 mm
Overall length – inch (OAL): 4.6457 inch
Threading length – millimeter (THL): 29 mm
Threading length – inch (THL): 1.1417 inch
Connection diameter – inch (DCON MS): 0.6299 inch
Connection diameter – millimeter (DCON MS): 16 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.4921 inch
Clamping width – millimeter (WSC): 12.5 mm
Clamping Length – inch (LCS): 0.6299 inch
Clamping Length – millimeter (LSC): 16 mm
Premachined hole diameter – inch (PHD): 0.7677 inch
Premachined hole diameter – millimeter (PHD): 19.5 mm
Gross weight – grams: 186.6
ISO: E500M22NO2
Ordering code ANSI: E500M22NO2
