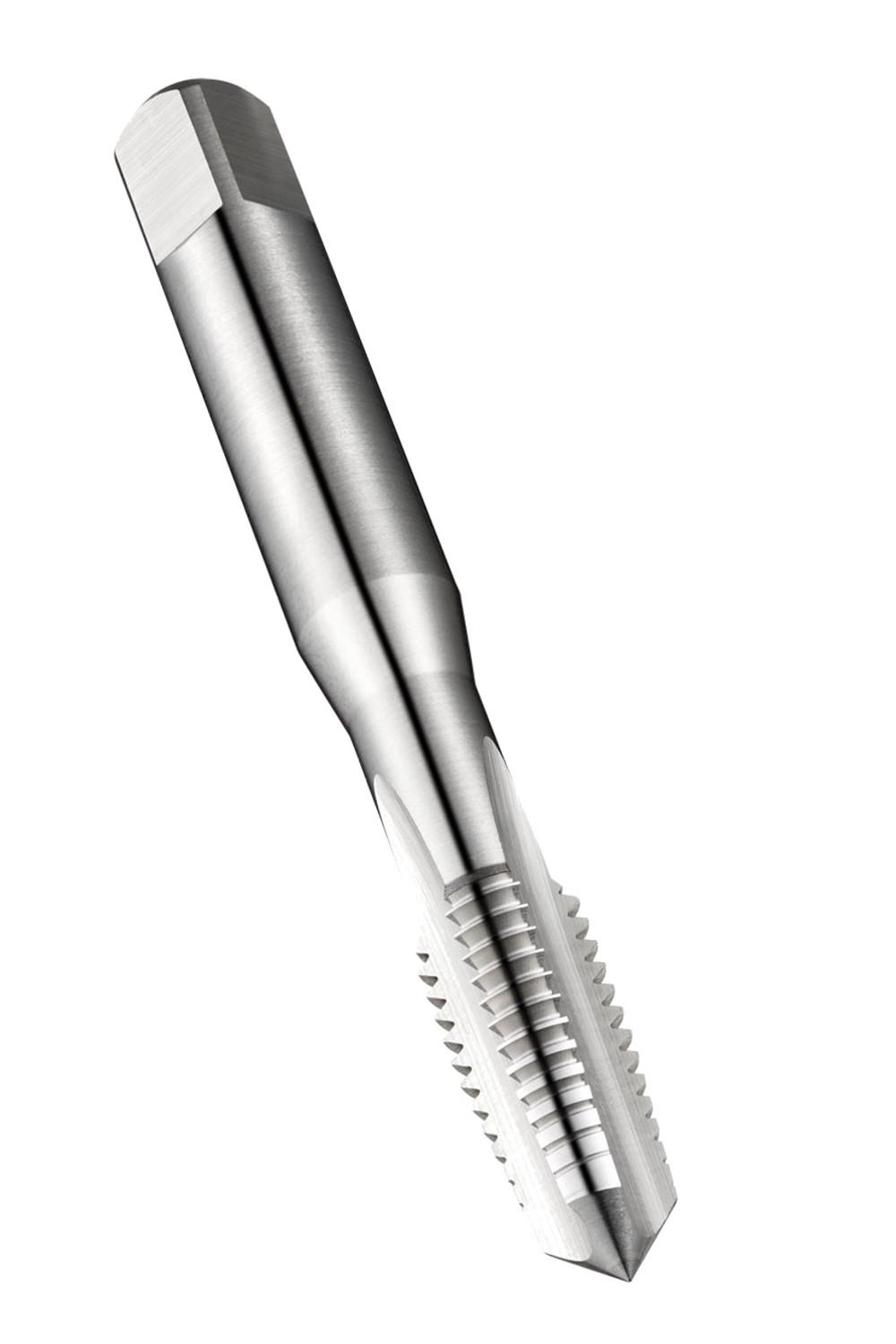

DORMER E500M3.5NO1 HSS Straight Flute Taps

Description: Value
Product name: E500M3.5NO1
Product number (SAP): 86016356
EAN number: 7320760094402
Thread diameter size (TDZ): 3.5
Thread pitch – millimeter (TP): 0.6 mm
Overall length – millimeter (OAL): 50 mm
Overall length – inch (OAL): 1.9685 inch
Threading length – millimeter (THL): 14 mm
Threading length – inch (THL): 0.5512 inch
Connection diameter – inch (DCON MS): 0.1398 inch
Connection diameter – millimeter (DCON MS): 3.55 mm
Flute count (NOF): 3
Usable Length – inch (LU): 0.5512 inch
Usable Length – millimeter (LU): 14 mm
Clamping width – inch (WSC): 0.1102 inch
Clamping width – millimeter (WSC): 2.8 mm
Clamping Length – inch (LCS): 0.1969 inch
Clamping Length – millimeter (LSC): 5 mm
Premachined hole diameter – inch (PHD): 0.1142 inch
Premachined hole diameter – millimeter (PHD): 2.9 mm
Gross weight – grams: 6.4
ISO: E500M3.5NO1
Ordering code ANSI: E500M3.5NO1
