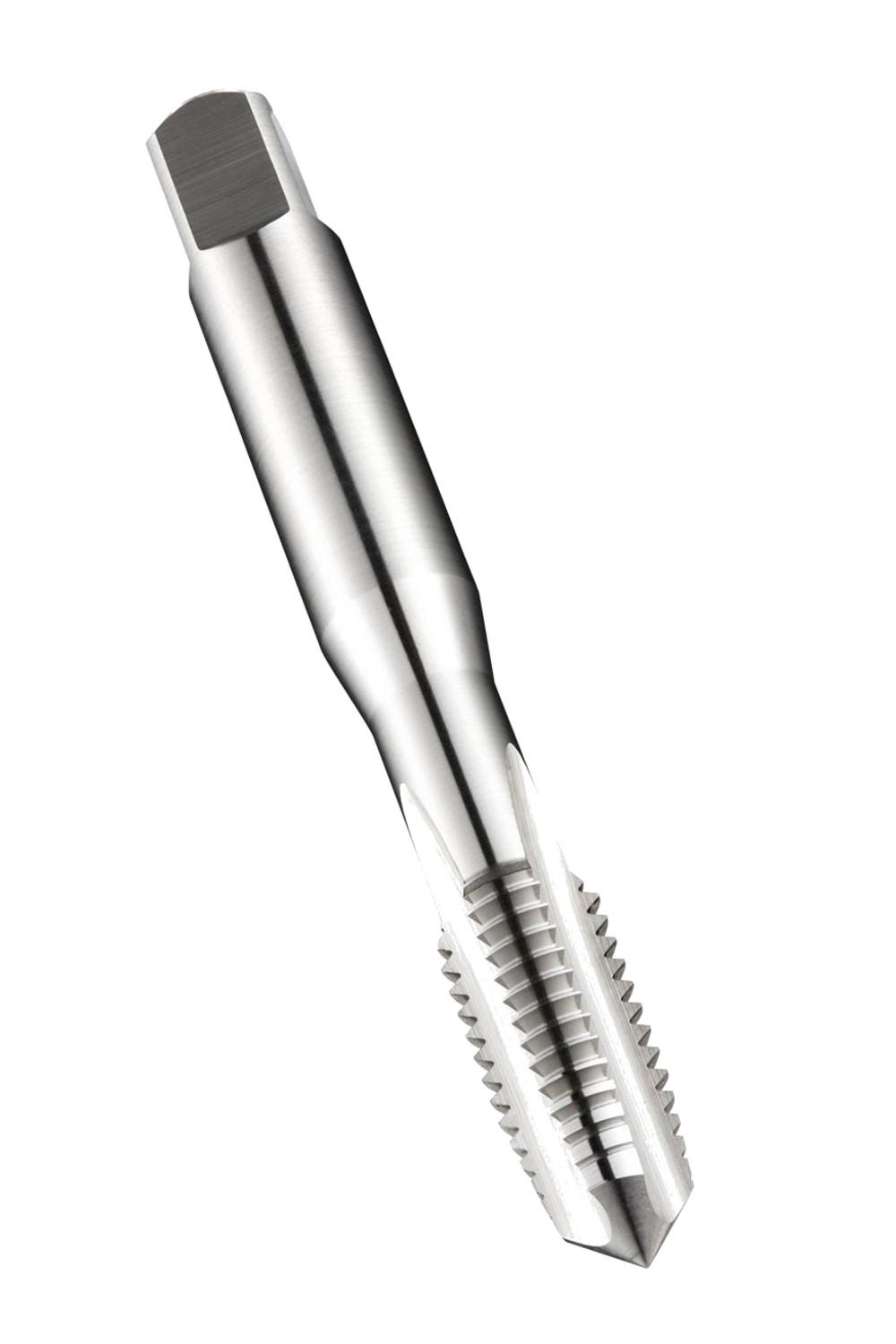

DORMER E500M30NO2 HSS Straight Flute Taps

Description: Value
Product name: E500M30NO2
Product number (SAP): 86016363
EAN number: 7320760094488
Thread diameter size (TDZ): 30
Thread pitch – millimeter (TP): 3.5 mm
Overall length – millimeter (OAL): 138 mm
Overall length – inch (OAL): 5.4331 inch
Threading length – millimeter (THL): 41 mm
Threading length – inch (THL): 1.6142 inch
Connection diameter – inch (DCON MS): 0.7874 inch
Connection diameter – millimeter (DCON MS): 20 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.6299 inch
Clamping width – millimeter (WSC): 16 mm
Clamping Length – inch (LCS): 0.7874 inch
Clamping Length – millimeter (LSC): 20 mm
Premachined hole diameter – inch (PHD): 1.0433 inch
Premachined hole diameter – millimeter (PHD): 26.5 mm
Gross weight – grams: 363.7
ISO: E500M30NO2
Ordering code ANSI: E500M30NO2
