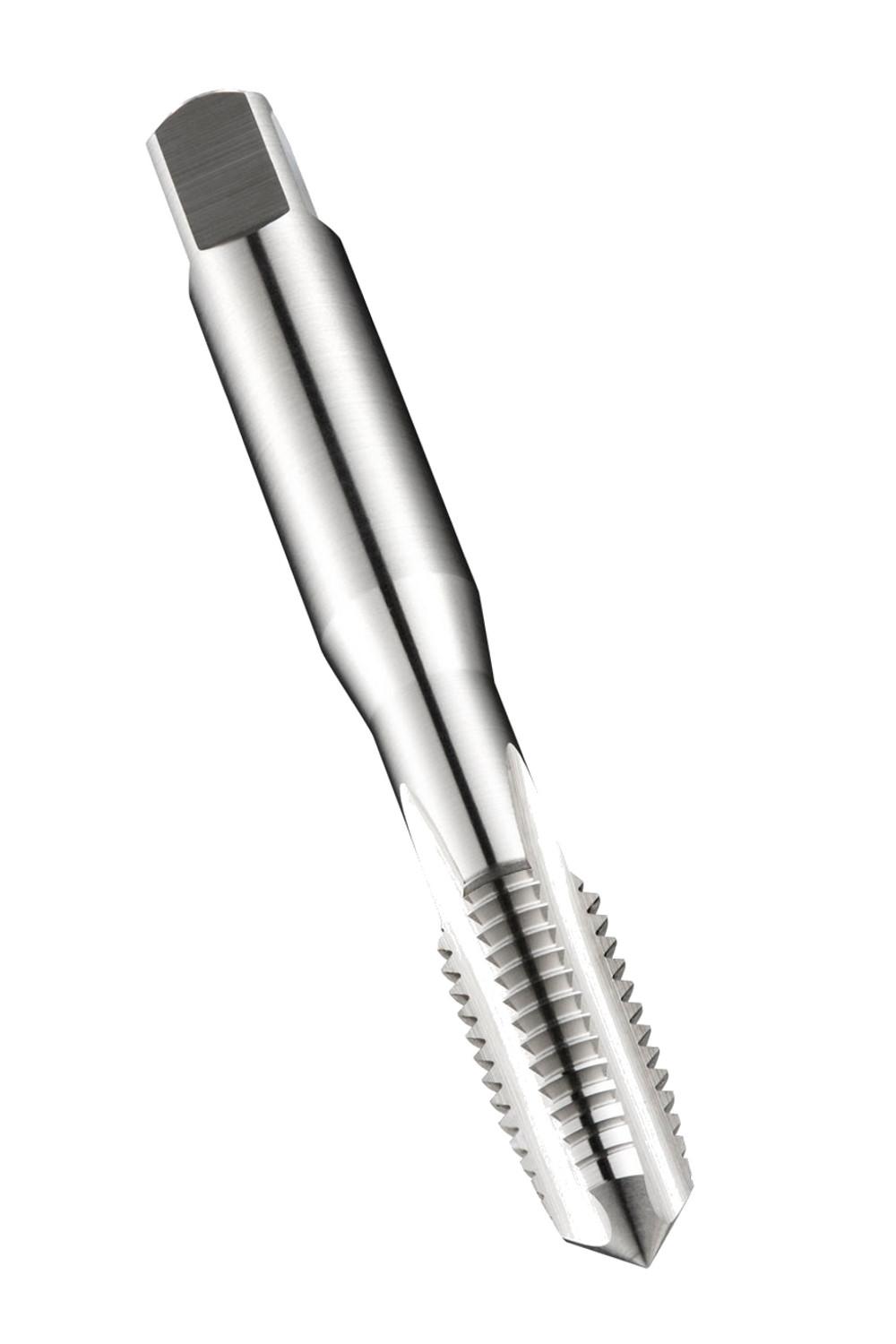

DORMER E500M39NO2 HSS Straight Flute Taps

Description: Value
Product name: E500M39NO2
Product number (SAP): 86016372
EAN number: 7320760152232
Thread diameter size (TDZ): 39
Thread pitch – millimeter (TP): 4 mm
Overall length – millimeter (OAL): 170 mm
Overall length – inch (OAL): 6.6929 inch
Threading length – millimeter (THL): 47 mm
Threading length – inch (THL): 1.8504 inch
Connection diameter – inch (DCON MS): 1.1024 inch
Connection diameter – millimeter (DCON MS): 28 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.8819 inch
Clamping width – millimeter (WSC): 22.4 mm
Clamping Length – inch (LCS): 1.0236 inch
Clamping Length – millimeter (LSC): 26 mm
Premachined hole diameter – inch (PHD): 1.378 inch
Premachined hole diameter – millimeter (PHD): 35 mm
Gross weight – grams: 843.6
ISO: E500M39NO2
Ordering code ANSI: E500M39NO2
