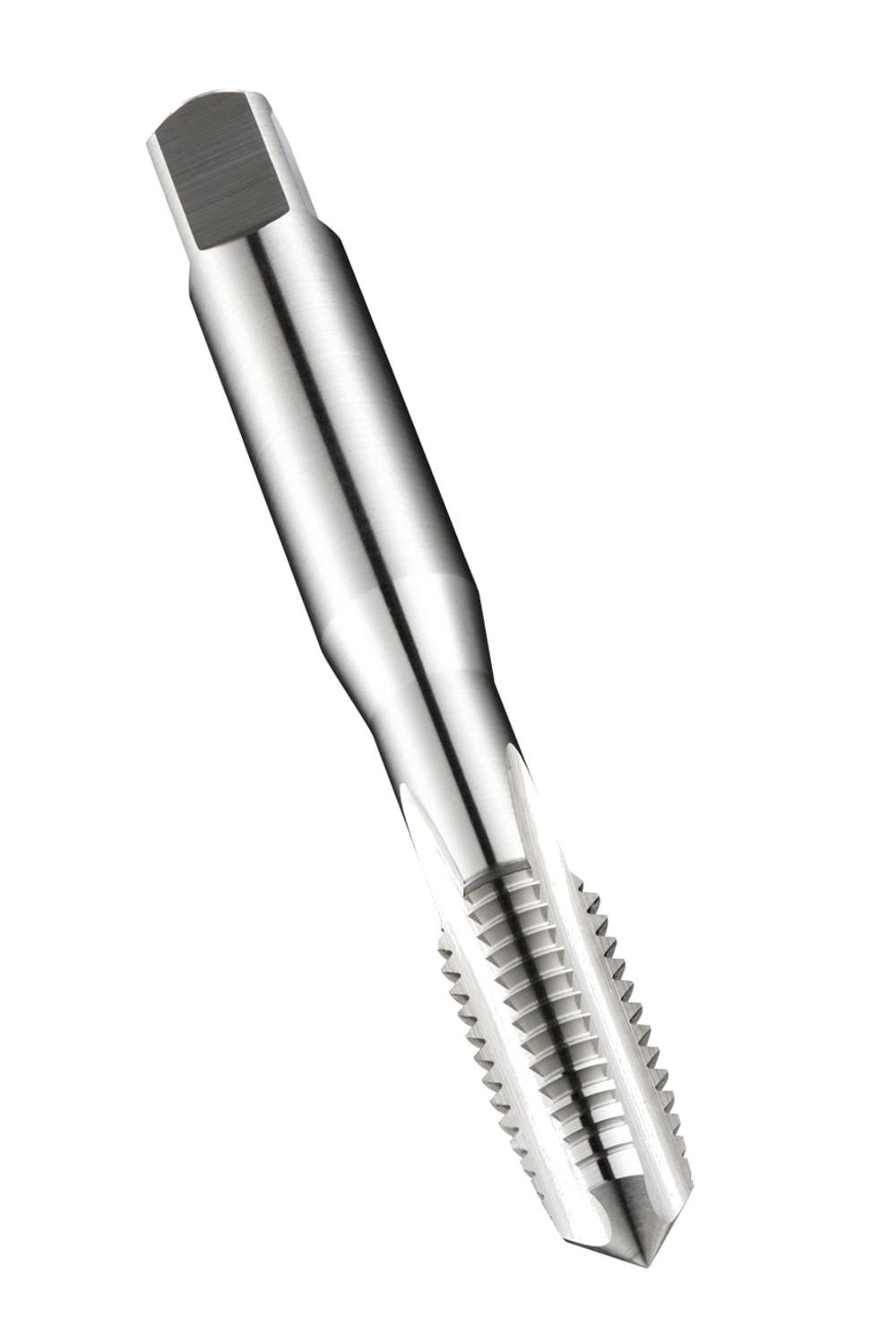

DORMER E500M4.5NO2 HSS Straight Flute Taps

Description: Value
Product name: E500M4.5NO2
Product number (SAP): 86016384
EAN number: 7320760094617
Thread diameter size (TDZ): 4.5
Thread pitch – millimeter (TP): 0.75 mm
Overall length – millimeter (OAL): 53 mm
Overall length – inch (OAL): 2.0866 inch
Threading length – millimeter (THL): 9.5 mm
Threading length – inch (THL): 0.374 inch
Connection diameter – inch (DCON MS): 0.1772 inch
Connection diameter – millimeter (DCON MS): 4.5 mm
Flute count (NOF): 3
Usable Length – inch (LU): 0.7087 inch
Usable Length – millimeter (LU): 18 mm
Clamping width – inch (WSC): 0.1398 inch
Clamping width – millimeter (WSC): 3.55 mm
Clamping Length – inch (LCS): 0.2362 inch
Clamping Length – millimeter (LSC): 6 mm
Premachined hole diameter – inch (PHD): 0.1496 inch
Premachined hole diameter – millimeter (PHD): 3.8 mm
Gross weight – grams: 8.8
ISO: E500M4.5NO2
Ordering code ANSI: E500M4.5NO2
