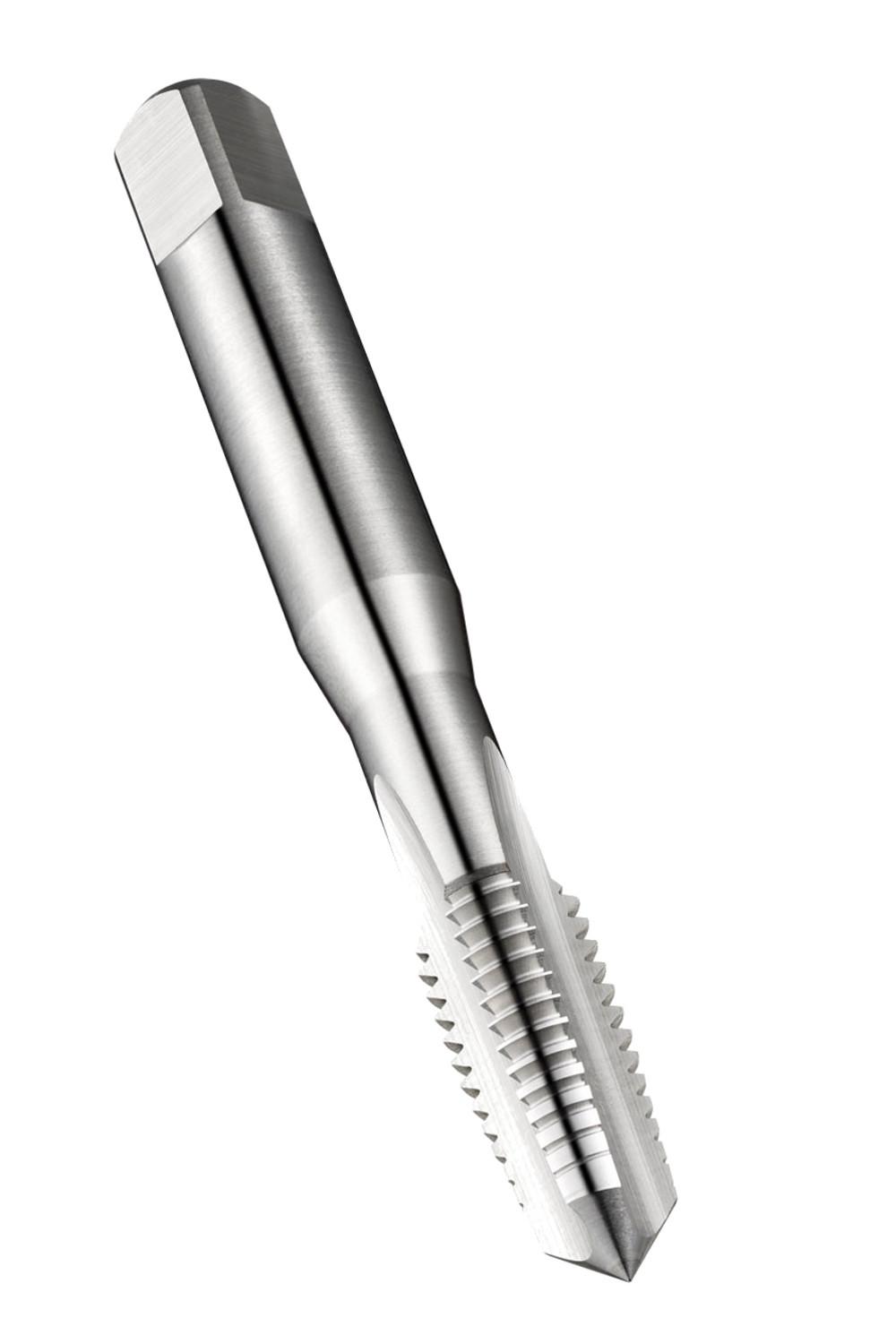

DORMER E500M45NO1 HSS Straight Flute Taps

Description: Value
Product name: E500M45NO1
Product number (SAP): 86016392
EAN number: 7320760154304
Thread diameter size (TDZ): 45
Thread pitch – millimeter (TP): 4.5 mm
Overall length – millimeter (OAL): 187 mm
Overall length – inch (OAL): 7.3622 inch
Threading length – millimeter (THL): 54 mm
Threading length – inch (THL): 2.126 inch
Connection diameter – inch (DCON MS): 1.2402 inch
Connection diameter – millimeter (DCON MS): 31.5 mm
Flute count (NOF): 6
Clamping width – inch (WSC): 0.9843 inch
Clamping width – millimeter (WSC): 25 mm
Clamping Length – inch (LCS): 1.1024 inch
Clamping Length – millimeter (LSC): 28 mm
Premachined hole diameter – inch (PHD): 1.5945 inch
Premachined hole diameter – millimeter (PHD): 40.5 mm
Gross weight – grams: 1219
ISO: E500M45NO1
Ordering code ANSI: E500M45NO1
