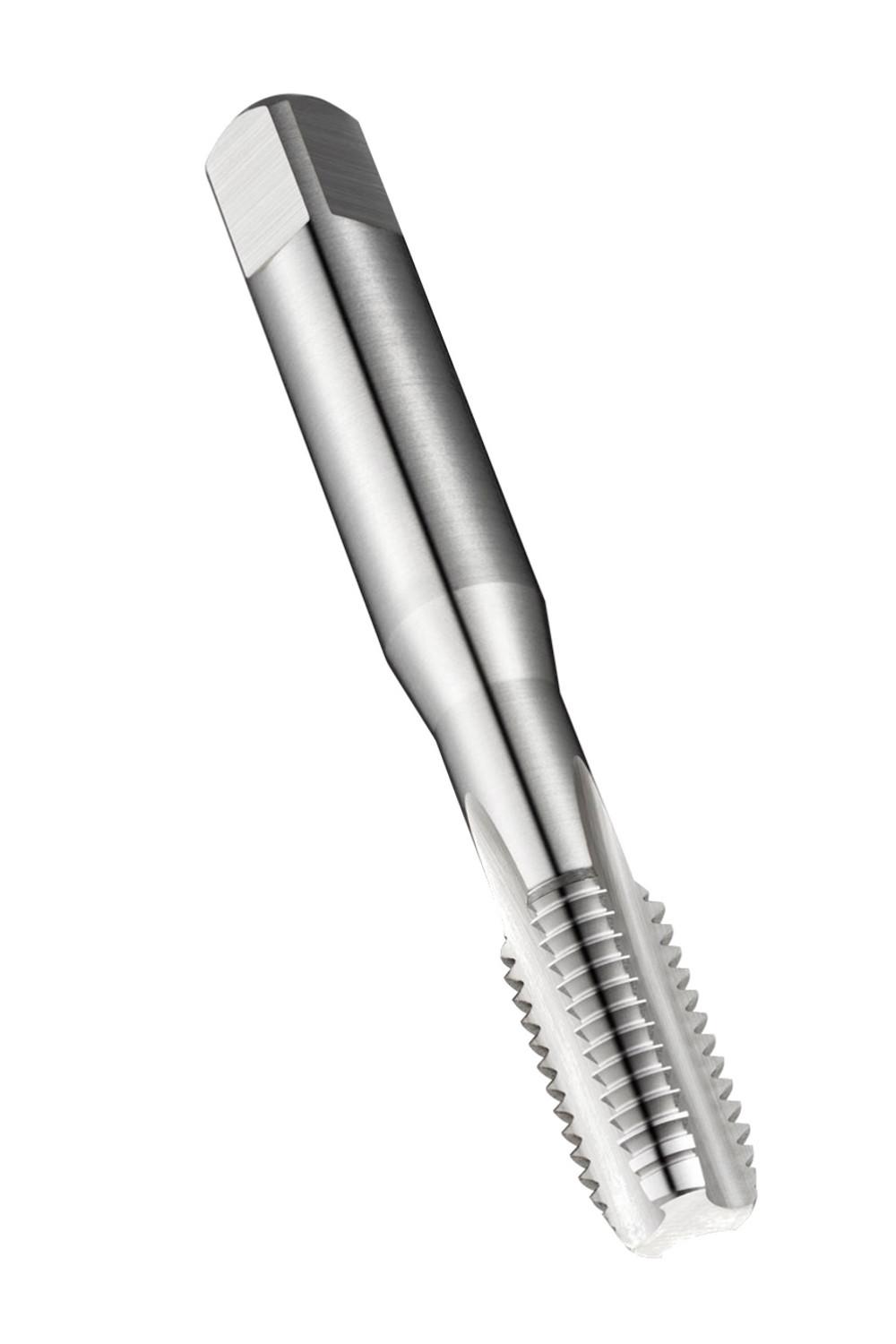

DORMER E500M5.5X.9NO3 HSS Straight Flute Taps

Description: Value
Product name: E500M5.5X.9NO3
Product number (SAP): 86016409
EAN number: 7320760160015
Thread diameter size (TDZ): 5.5
Thread pitch – millimeter (TP): 0.9 mm
Overall length – millimeter (OAL): 62 mm
Overall length – inch (OAL): 2.4409 inch
Threading length – millimeter (THL): 12 mm
Threading length – inch (THL): 0.4724 inch
Connection diameter – inch (DCON MS): 0.2205 inch
Connection diameter – millimeter (DCON MS): 5.6 mm
Flute count (NOF): 3
Usable Length – inch (LU): 0.8268 inch
Usable Length – millimeter (LU): 21 mm
Clamping width – inch (WSC): 0.1772 inch
Clamping width – millimeter (WSC): 4.5 mm
Clamping Length – inch (LCS): 0.2756 inch
Clamping Length – millimeter (LSC): 7 mm
Premachined hole diameter – inch (PHD): 0.1811 inch
Premachined hole diameter – millimeter (PHD): 4.6 mm
Gross weight – grams: 12
ISO: E500M5.5X.9NO3
Ordering code ANSI: E500M5.5X.9NO3
