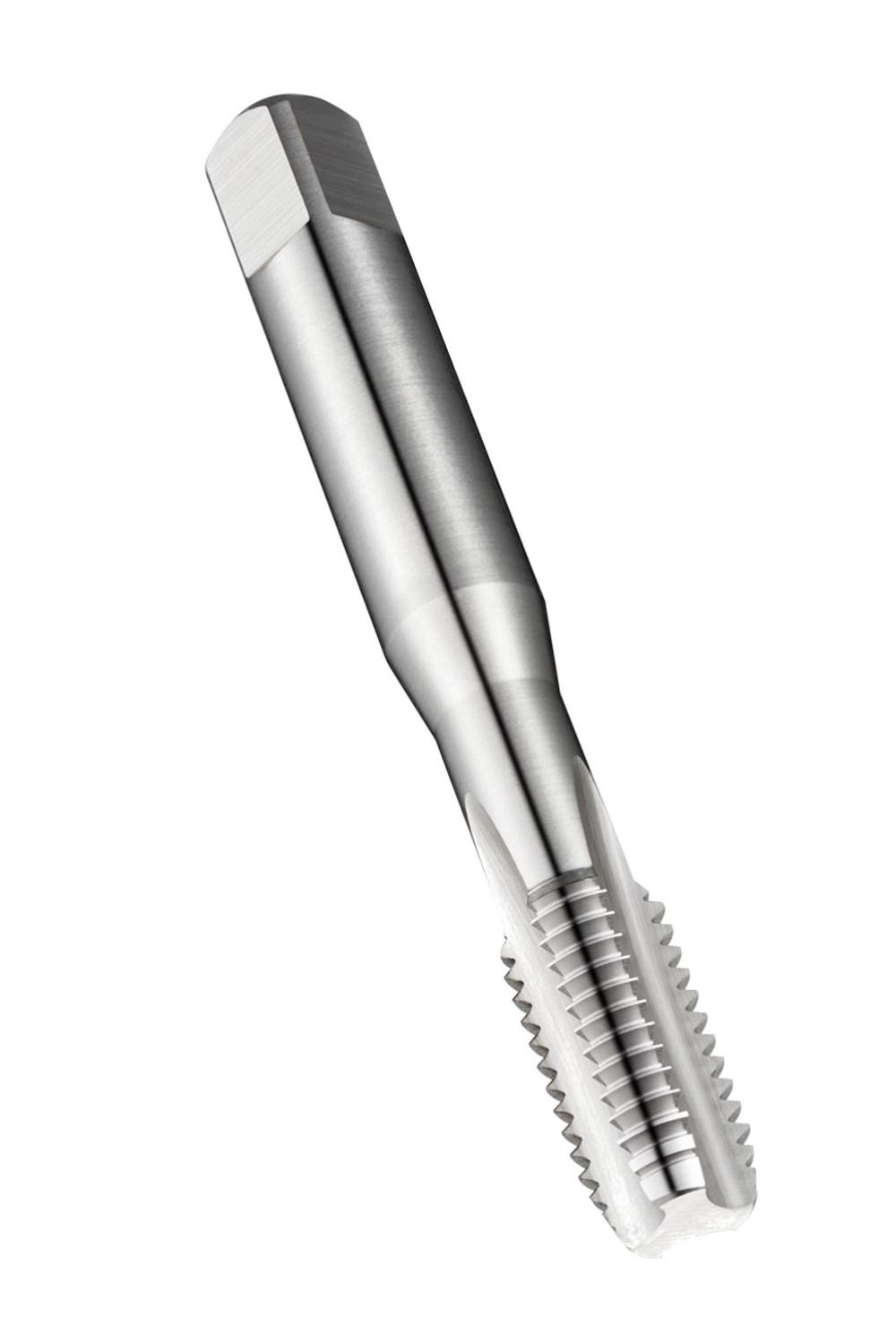

DORMER E500M5X.9NO3 HSS Straight Flute Taps

Description: Value
Product name: E500M5X.9NO3
Product number (SAP): 86016423
EAN number: 7320760159972
Thread diameter size (TDZ): 5
Thread pitch – millimeter (TP): 0.9 mm
Overall length – millimeter (OAL): 58 mm
Overall length – inch (OAL): 2.2835 inch
Threading length – millimeter (THL): 11 mm
Threading length – inch (THL): 0.4331 inch
Connection diameter – inch (DCON MS): 0.1969 inch
Connection diameter – millimeter (DCON MS): 5 mm
Flute count (NOF): 3
Usable Length – inch (LU): 0.8661 inch
Usable Length – millimeter (LU): 22 mm
Clamping width – inch (WSC): 0.1575 inch
Clamping width – millimeter (WSC): 4 mm
Clamping Length – inch (LCS): 0.2756 inch
Clamping Length – millimeter (LSC): 7 mm
Premachined hole diameter – inch (PHD): 0.1614 inch
Premachined hole diameter – millimeter (PHD): 4.1 mm
Gross weight – grams: 10.4
ISO: E500M5X.9NO3
Ordering code ANSI: E500M5X.9NO3
