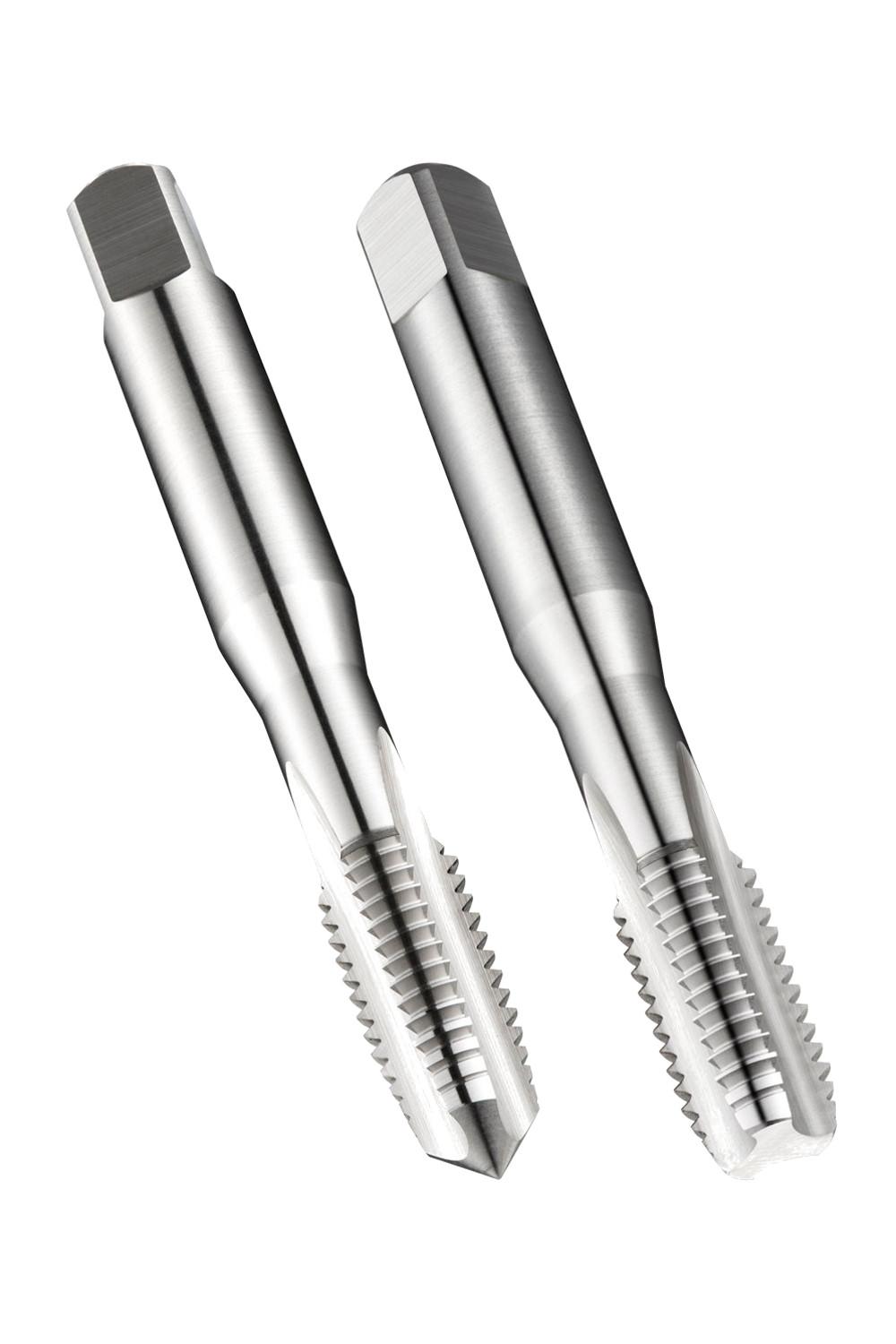

DORMER E500M6NO7 HSS Straight Flute Taps

Description: Value
Product name: E500M6NO7
Product number (SAP): 86016429
EAN number: 7320760154694
Thread diameter size (TDZ): 6
Thread pitch – millimeter (TP): 1 mm
Overall length – millimeter (OAL): 66 mm
Overall length – inch (OAL): 2.5984 inch
Threading length – millimeter (THL): 13 mm
Threading length – inch (THL): 0.5118 inch
Connection diameter – inch (DCON MS): 0.248 inch
Connection diameter – millimeter (DCON MS): 6.3 mm
Flute count (NOF): 3
Usable Length – inch (LU): 1.0236 inch
Usable Length – millimeter (LU): 26 mm
Clamping width – inch (WSC): 0.1969 inch
Clamping width – millimeter (WSC): 5 mm
Clamping Length – inch (LCS): 0.315 inch
Clamping Length – millimeter (LSC): 8 mm
Premachined hole diameter – inch (PHD): 0.1969 inch
Premachined hole diameter – millimeter (PHD): 5 mm
Gross weight – grams: 30.8
ISO: E500M6NO7
Ordering code ANSI: E500M6NO7
