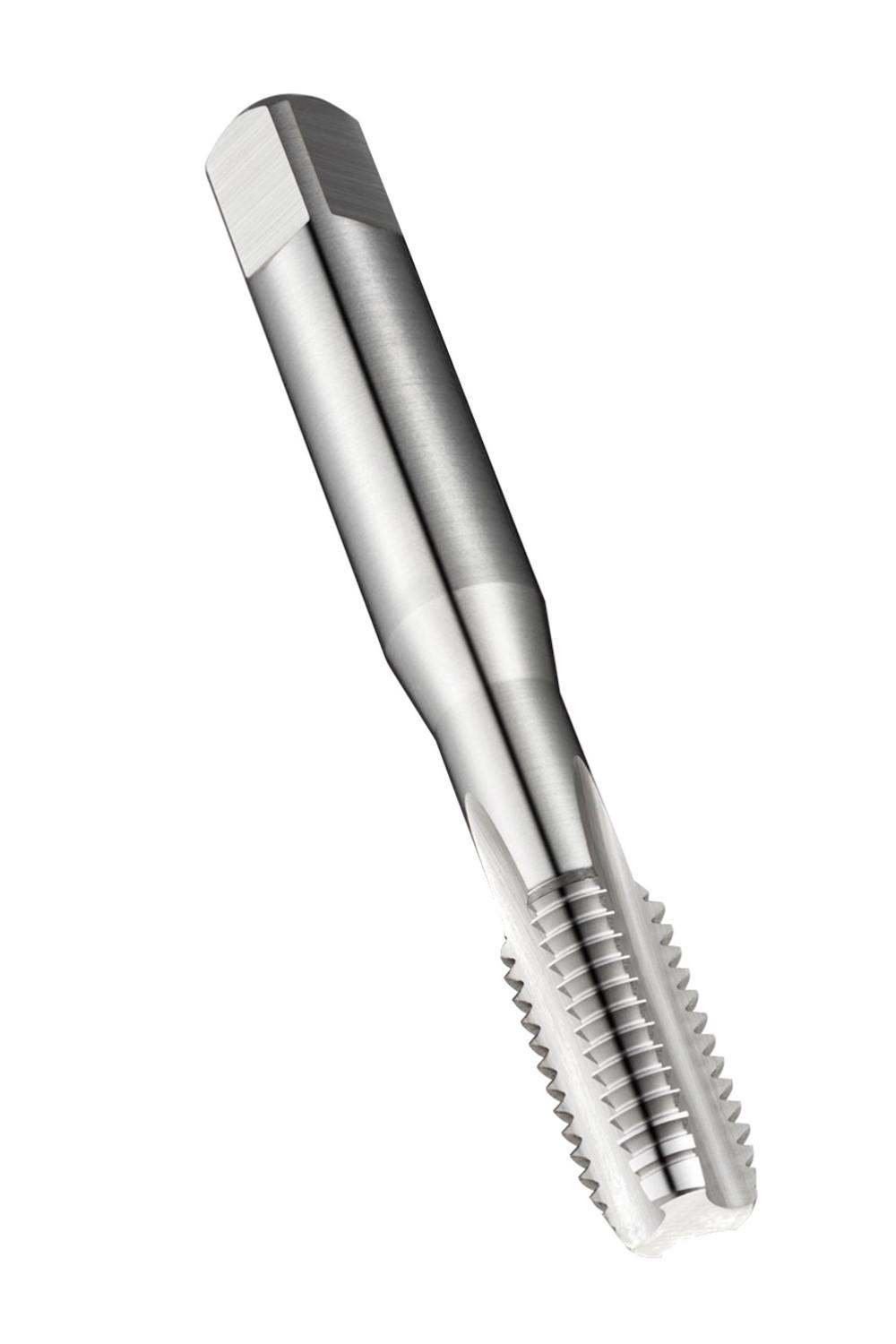

DORMER E500M7NO3 HSS Straight Flute Taps

Description: Value
Product name: E500M7NO3
Product number (SAP): 86016433
EAN number: 7320760094846
Thread diameter size (TDZ): 7
Thread pitch – millimeter (TP): 1 mm
Overall length – millimeter (OAL): 66 mm
Overall length – inch (OAL): 2.5984 inch
Threading length – millimeter (THL): 13 mm
Threading length – inch (THL): 0.5118 inch
Connection diameter – inch (DCON MS): 0.2795 inch
Connection diameter – millimeter (DCON MS): 7.1 mm
Flute count (NOF): 3
Usable Length – inch (LU): 1.0236 inch
Usable Length – millimeter (LU): 26 mm
Clamping width – inch (WSC): 0.2205 inch
Clamping width – millimeter (WSC): 5.6 mm
Clamping Length – inch (LCS): 0.315 inch
Clamping Length – millimeter (LSC): 8 mm
Premachined hole diameter – inch (PHD): 0.2362 inch
Premachined hole diameter – millimeter (PHD): 6 mm
Gross weight – grams: 22
ISO: E500M7NO3
Ordering code ANSI: E500M7NO3
