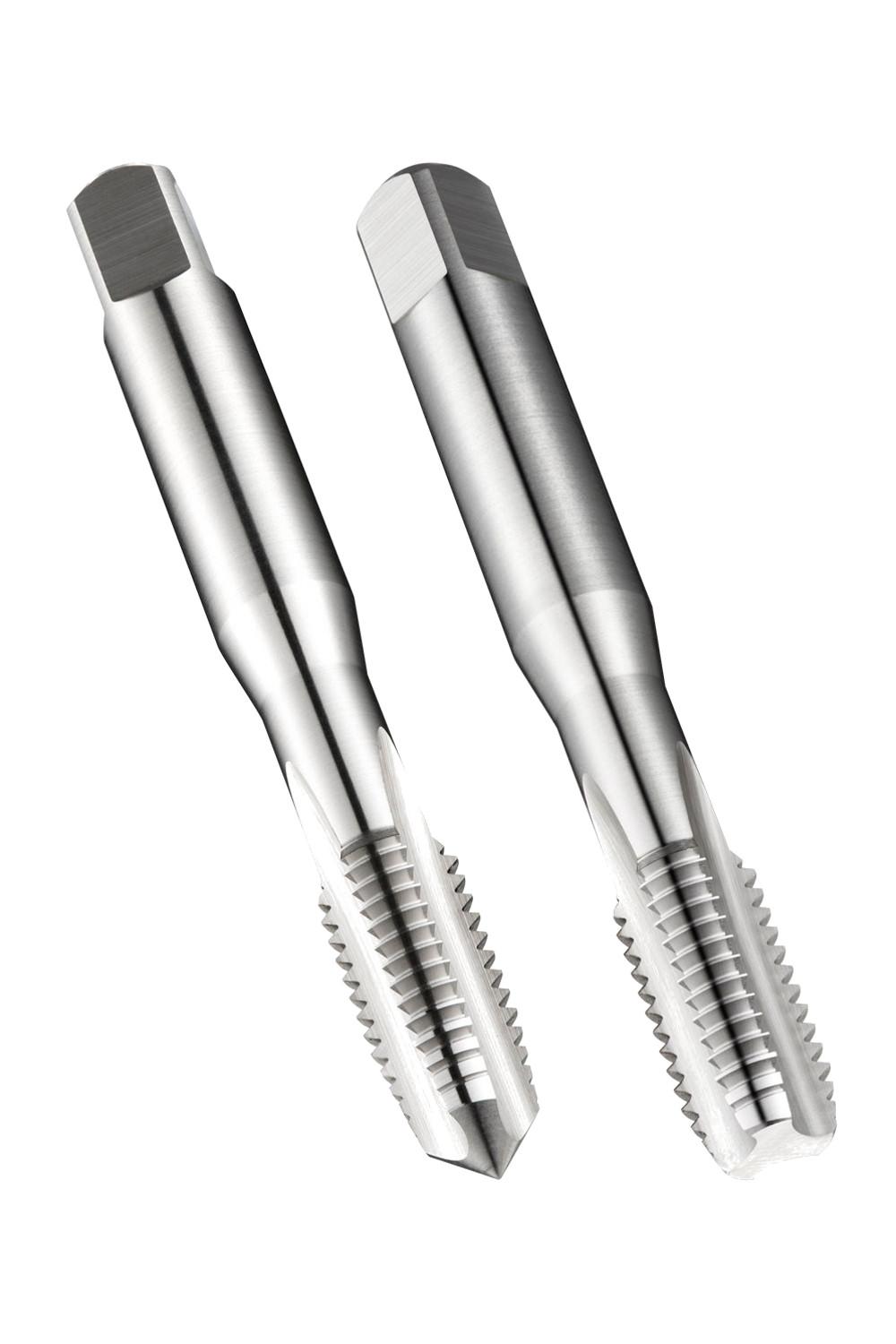

DORMER E500M8NO7 HSS Straight Flute Taps

Description: Value
Product name: E500M8NO7
Product number (SAP): 86016441
EAN number: 7320760154656
Thread diameter size (TDZ): 8
Thread pitch – millimeter (TP): 1.25 mm
Overall length – millimeter (OAL): 72 mm
Overall length – inch (OAL): 2.8346 inch
Threading length – millimeter (THL): 16 mm
Threading length – inch (THL): 0.6299 inch
Connection diameter – inch (DCON MS): 0.315 inch
Connection diameter – millimeter (DCON MS): 8 mm
Flute count (NOF): 3
Usable Length – inch (LU): 1.1417 inch
Usable Length – millimeter (LU): 29 mm
Clamping width – inch (WSC): 0.248 inch
Clamping width – millimeter (WSC): 6.3 mm
Clamping Length – inch (LCS): 0.3543 inch
Clamping Length – millimeter (LSC): 9 mm
Premachined hole diameter – inch (PHD): 0.2677 inch
Premachined hole diameter – millimeter (PHD): 6.8 mm
Gross weight – grams: 58.5
ISO: E500M8NO7
Ordering code ANSI: E500M8NO7
