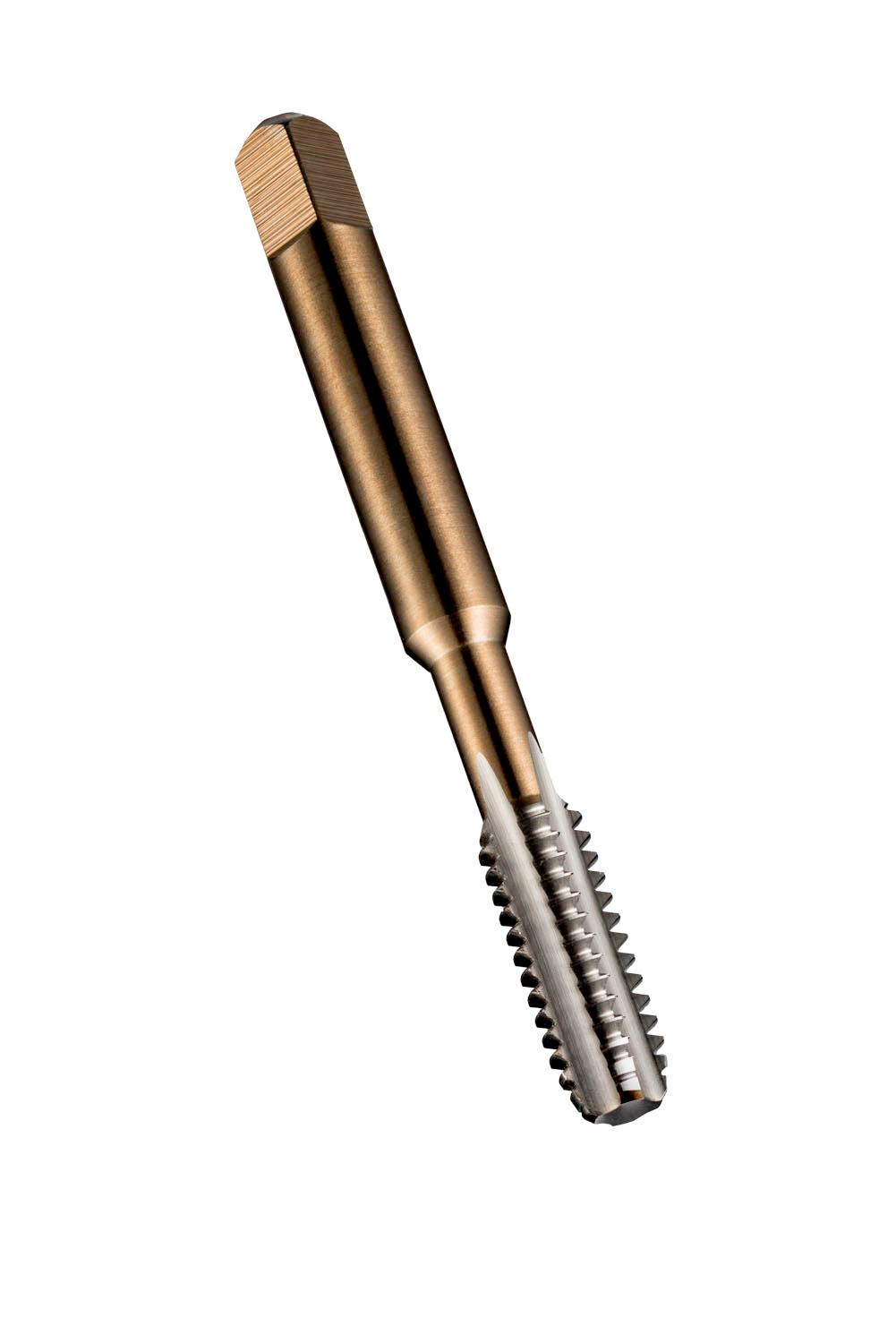

DORMER E501M20NO2

Description

Straight flute hand tap NO2 with a 4-6xP second lead, for left hand ISO-Metric thread M20 with 2.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 14.0mm shank and 11.2mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Additional information

Weight	0.2717 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E501M20NO2 Product number (SAP): 86016464 EAN number: 7320760095027 Thread diameter size (TDZ): 20 Thread pitch – millimeter (TP): 2.5 mm Overall length – millimeter (OAL): 112 mm Overall length – inch (OAL): 4.4094 inch Threading length – millimeter (THL): 29 mm Threading length – inch (THL): 1.1417 inch Connection diameter – inch (DCON MS): 0.5512 inch Connection diameter – millimeter (DCON MS): 14 mm Flute count (NOF): 4 Tolerance limit: D7 Clamping width – inch (WSC): 0.4409 inch Clamping width – millimeter (WSC): 11.2 mm Clamping Length – inch (LCS): 0.5512 inch Clamping Length – millimeter (LSC): 14 mm Premachined hole diameter – inch (PHD): 0.689 inch Premachined hole diameter – millimeter (PHD): 17.5 mm Gross weight – grams: 136.4 ISO: E501M20NO2 Ordering code ANSI: E501M20NO2

Need Technical Advice?

Description

Additional information

Brand

DORMER
