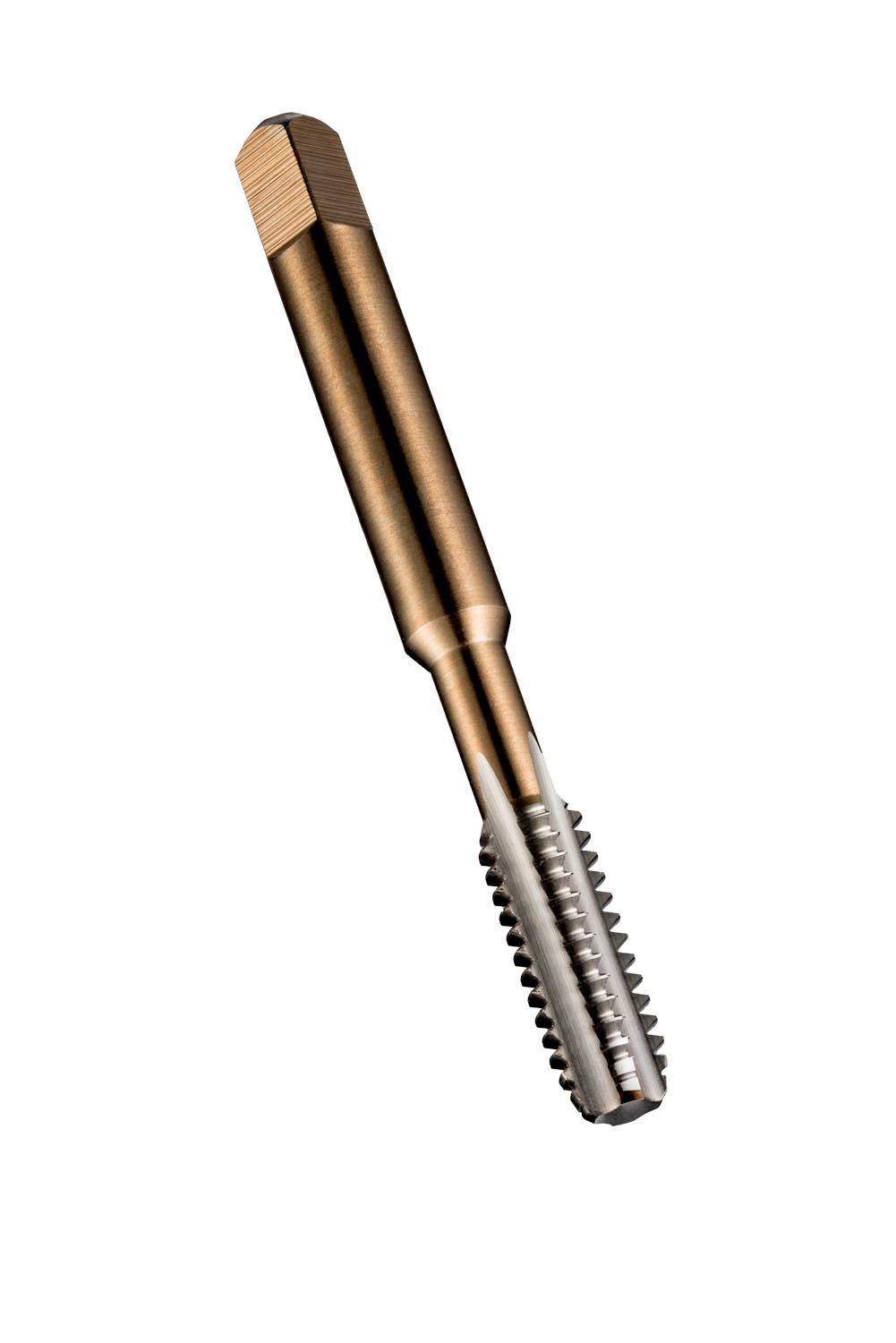

DORMER E513M22X1.5NO2 HSS Straight Flute Taps

Description

Straight flute hand tap NO2 with a 4-6xP second lead, for ISO-Metric Fine thread M22 with 1.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 16.0mm shank and 12.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.1914 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E513M22X1.5NO2 Product number (SAP): 86016617 EAN number: 7320760152607 Thread diameter size (TDZ): 22 Thread pitch – millimeter (TP): 1.5 mm Overall length – millimeter (OAL): 118 mm Overall length – inch (OAL): 4.6457 inch Threading length – millimeter (THL): 29 mm Threading length – inch (THL): 1.1417 inch Connection diameter – inch (DCON MS): 0.6299 inch Connection diameter – millimeter (DCON MS): 16 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.4921 inch Clamping width – millimeter (WSC): 12.5 mm Clamping Length – inch (LCS): 0.6299 inch Clamping Length – millimeter (LSC): 16 mm Premachined hole diameter – inch (PHD): 0.8071 inch Premachined hole diameter – millimeter (PHD): 20.5 mm Gross weight – grams: 188 ISO: E513M22X1.5NO2 Ordering code ANSI: E513M22X1.5NO2

Need Technical Advice?

Description

Additional information

Brand

DORMER
