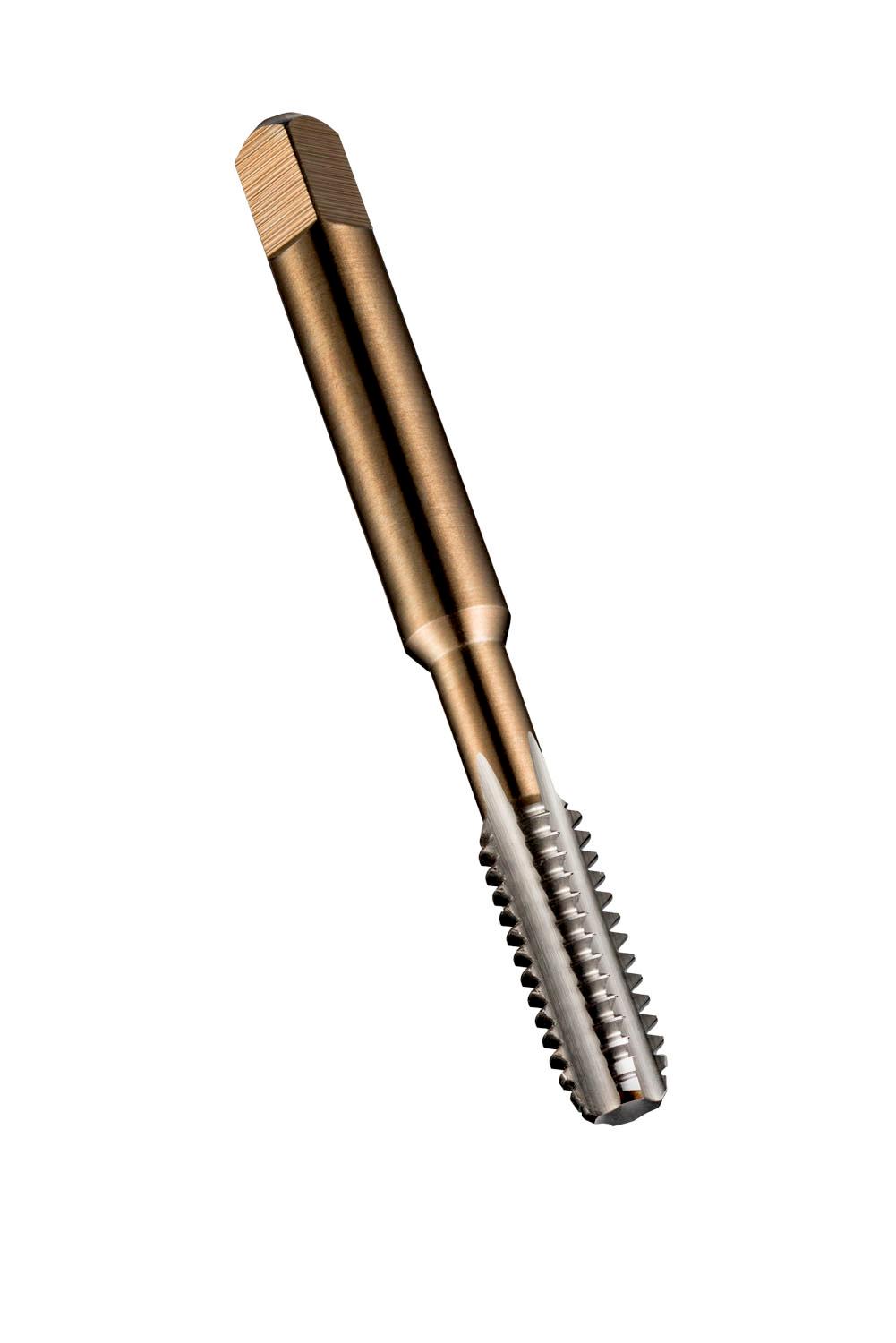

DORMER E513M3.5X.35NO3 HSS Straight Flute Taps

Description

Straight flute hand tap NO3 with a 2-3xP plug lead, for ISO-Metric Fine thread M3.5 with 0.35 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 3.15mm shank and 2.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.1034 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E513M3.5X.35NO3 Product number (SAP): 86016646 EAN number: 7320760343111 Thread diameter size (TDZ): 3.5 Thread pitch – millimeter (TP): 0.35 mm Overall length – millimeter (OAL): 48 mm Overall length – inch (OAL): 1.8898 inch Threading length – millimeter (THL): 12.5 mm Threading length – inch (THL): 0.4921 inch Connection diameter – inch (DCON MS): 0.124 inch Connection diameter – millimeter (DCON MS): 3.15 mm Flute count (NOF): 3 Usable Length – inch (LU): 0.4921 inch Usable Length – millimeter (LU): 12.5 mm Clamping width – inch (WSC): 0.0984 inch Clamping width – millimeter (WSC): 2.5 mm Clamping Length – inch (LCS): 0.1969 inch Clamping Length – millimeter (LSC): 5 mm Premachined hole diameter – inch (PHD): 0.126 inch Premachined hole diameter – millimeter (PHD): 3.2 mm Gross weight – grams: 6 ISO: E513M3.5X.35NO3 Ordering code ANSI: E513M3.5X.35NO3
