DORMER E51512-24NO6 HSS Straight Flute Taps

Description

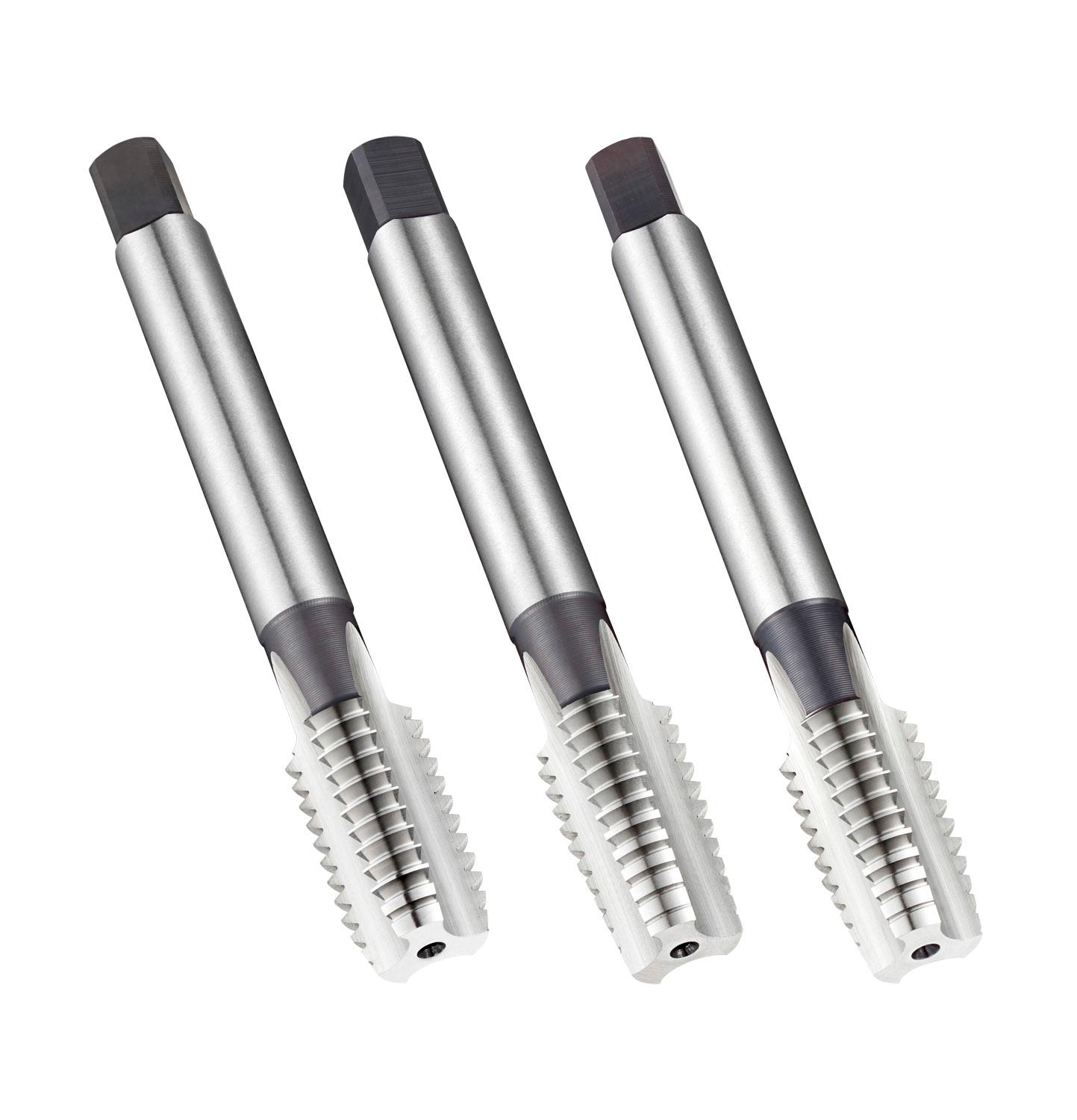

Set of straight flute hand taps NO6 for Unified National Coarse thread UNC 12 with 24 TPI and 2B class of fit, consisting of 1 tap with a 6-8xP taper lead, 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ISO 529 standard with 5.6mm shank and 4.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining steel and copper or copper alloys

Additional information

Weight	0.1210 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E51512-24NO6 Product number (SAP): 86016746 EAN number: 7320760154052 Thread diameter size (TDZ): 12 Thread diameter – millimeter (TD): 5.486 mm Threads per inch (TPI): 24 Overall length – millimeter (OAL): 62 mm Overall length – inch (OAL): 2.4409 inch Threading length – millimeter (THL): 12 mm Threading length – inch (THL): 0.4724 inch Connection diameter – inch (DCON MS): 0.2205 inch Connection diameter – millimeter (DCON MS): 5.6 mm Flute count (NOF): 3 Usable Length – inch (LU): 0.8268 inch Usable Length – millimeter (LU): 21 mm Clamping width – inch (WSC): 0.1772 inch Clamping width – millimeter (WSC): 4.5 mm Clamping Length – inch (LCS): 0.2756 inch Clamping Length – millimeter (LSC): 7 mm Premachined hole diameter – inch (PHD): 0.1772 inch Premachined hole diameter – millimeter (PHD): 4.5 mm Gross weight – grams: 34.3 ISO: E51512-24NO6 Ordering code ANSI: E51512-24NO6
