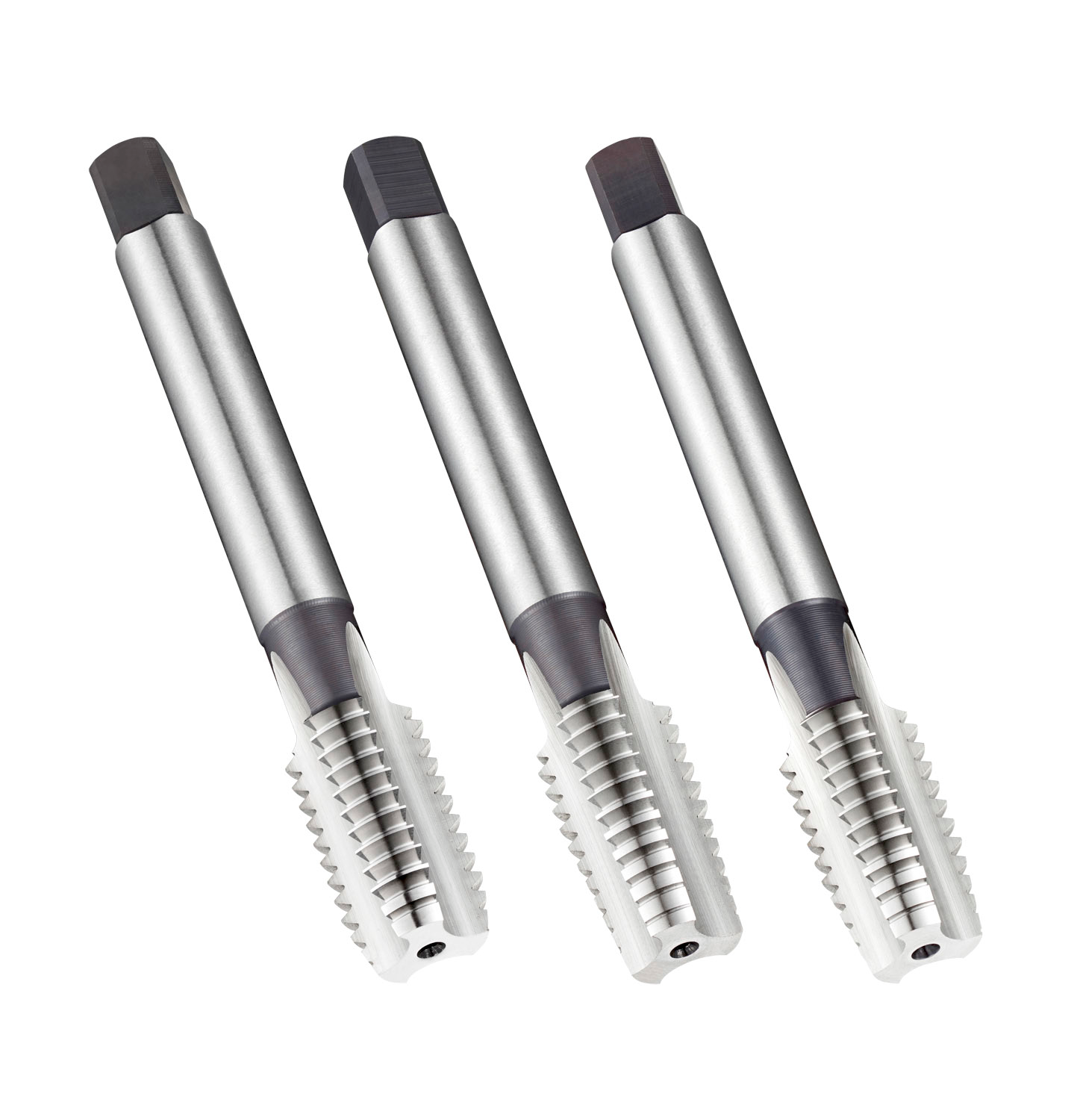

DORMER E5155/16NO6 HSS Straight Flute Taps

Description: Value
Product name: E5155/16NO6
Product number (SAP): 86016781
EAN number: 7320760154007
Thread diameter size (TDZ): 5/16
Thread diameter – millimeter (TD): 7.938 mm
Threads per inch (TPI): 18
Overall length – millimeter (OAL): 72 mm
Overall length – inch (OAL): 2.8346 inch
Threading length – millimeter (THL): 16 mm
Threading length – inch (THL): 0.6299 inch
Connection diameter – inch (DCON MS): 0.315 inch
Connection diameter – millimeter (DCON MS): 8 mm
Flute count (NOF): 3
Usable Length – inch (LU): 1.1417 inch
Usable Length – millimeter (LU): 29 mm
Clamping width – inch (WSC): 0.248 inch
Clamping width – millimeter (WSC): 6.3 mm
Clamping Length – inch (LCS): 0.3543 inch
Clamping Length – millimeter (LSC): 9 mm
Premachined hole diameter – inch (PHD): 0.2598 inch
Premachined hole diameter – millimeter (PHD): 6.6 mm
Gross weight – grams: 78.6
ISO: E5155/16NO6
Ordering code ANSI: E5155/16NO6
