DORMER E5157/8NO6 HSS Straight Flute Taps

Description

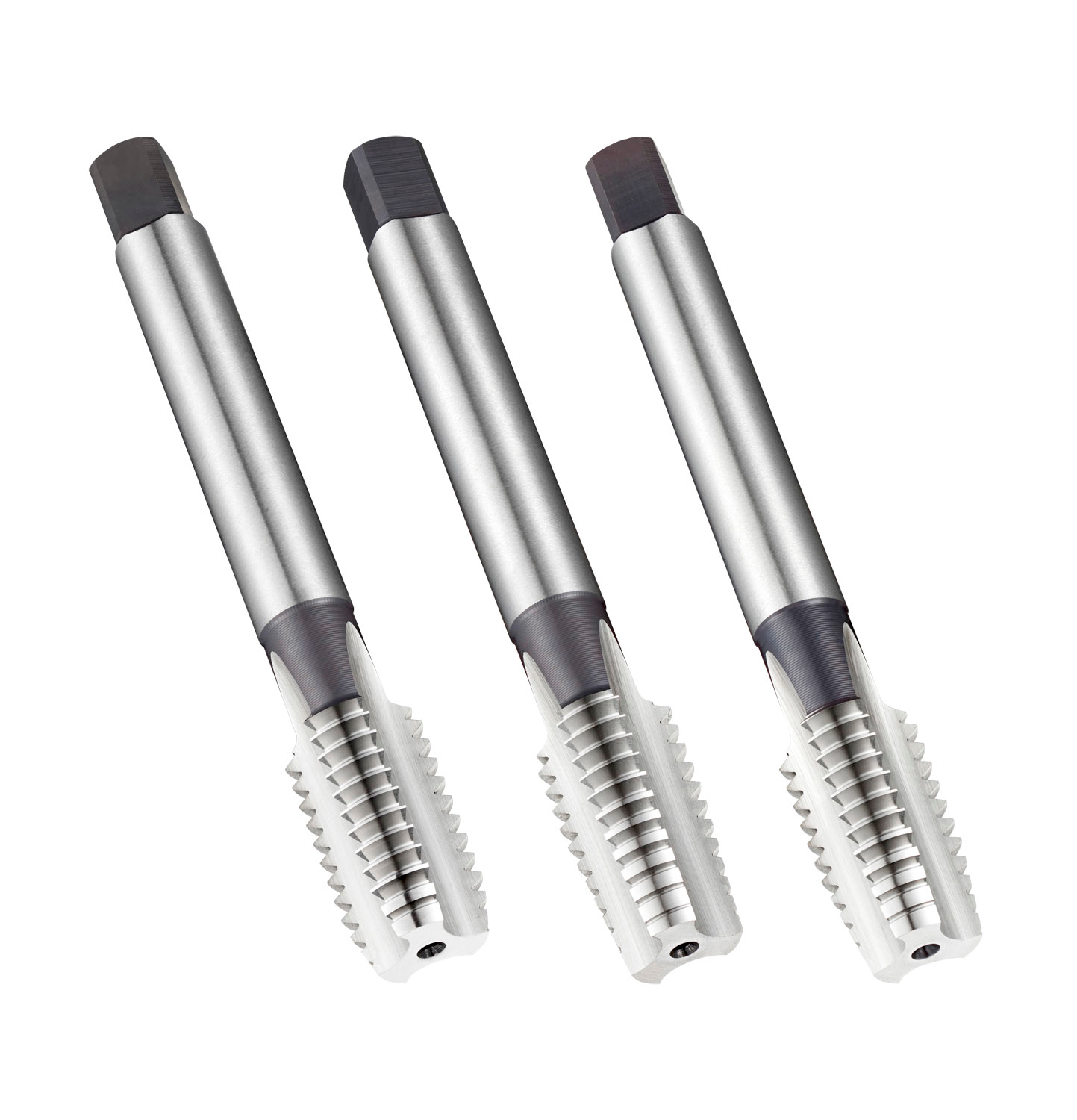

Set of straight flute hand taps NO6 for Unified National Coarse thread UNC 7/8″ with 9 TPI and 2B class of fit, consisting of 1 tap with a 6-8xP taper lead, 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ISO 529 standard with 16.0mm shank and 12.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining steel and copper or copper alloys

Additional information

Weight	0.5324 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E5157/8NO6 Product number (SAP): 86016801 EAN number: 7320760153857 Thread diameter size (TDZ): 7/8 Thread diameter – millimeter (TD): 22.225 mm Threads per inch (TPI): 9 Overall length – millimeter (OAL): 118 mm Overall length – inch (OAL): 4.6457 inch Threading length – millimeter (THL): 29 mm Threading length – inch (THL): 1.1417 inch Connection diameter – inch (DCON MS): 0.6299 inch Connection diameter – millimeter (DCON MS): 16 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.4921 inch Clamping width – millimeter (WSC): 12.5 mm Clamping Length – inch (LCS): 0.6299 inch Clamping Length – millimeter (LSC): 16 mm Premachined hole diameter – inch (PHD): 0.7677 inch Premachined hole diameter – millimeter (PHD): 19.5 mm Gross weight – grams: 603.4 ISO: E5157/8NO6 Ordering code ANSI: E5157/8NO6

Need Technical Advice?

Description

Additional information

Brand

DORMER
