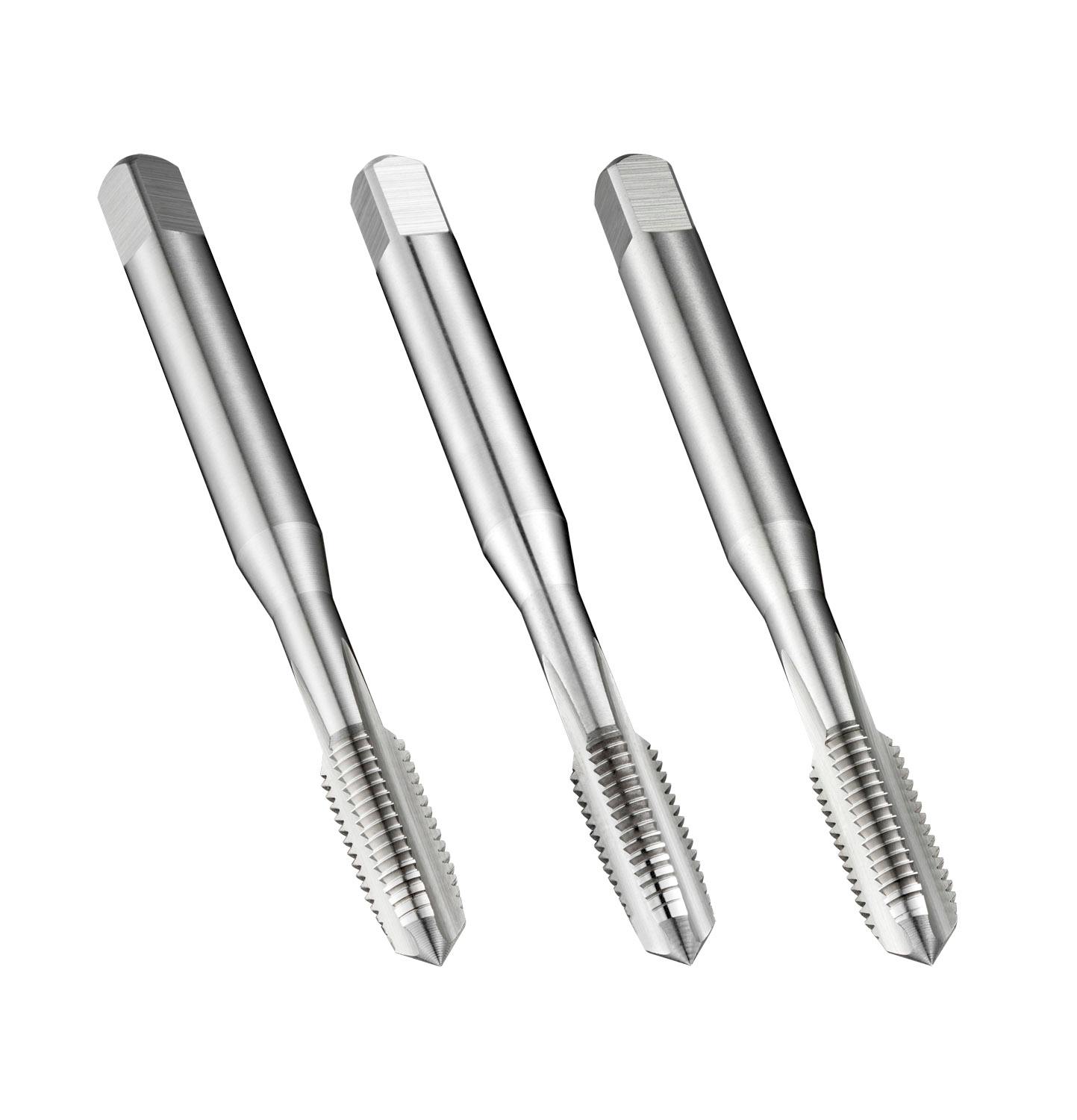

DORMER E52412-28NO6 HSS Straight Flute Taps

Description: Value
Product name: E52412-28NO6
Product number (SAP): 86016841
EAN number: 7320760153529
Thread diameter size (TDZ): 12
Thread diameter – millimeter (TD): 5.486 mm
Threads per inch (TPI): 28
Overall length – millimeter (OAL): 62 mm
Overall length – inch (OAL): 2.4409 inch
Threading length – millimeter (THL): 12 mm
Threading length – inch (THL): 0.4724 inch
Connection diameter – inch (DCON MS): 0.2205 inch
Connection diameter – millimeter (DCON MS): 5.6 mm
Flute count (NOF): 3
Usable Length – inch (LU): 0.8268 inch
Usable Length – millimeter (LU): 21 mm
Clamping width – inch (WSC): 0.1772 inch
Clamping width – millimeter (WSC): 4.5 mm
Clamping Length – inch (LCS): 0.2756 inch
Clamping Length – millimeter (LSC): 7 mm
Premachined hole diameter – inch (PHD): 0.185 inch
Premachined hole diameter – millimeter (PHD): 4.7 mm
Gross weight – grams: 34.7
ISO: E52412-28NO6
Ordering code ANSI: E52412-28NO6
