DORMER E5241NO6 HSS Straight Flute Taps

Description

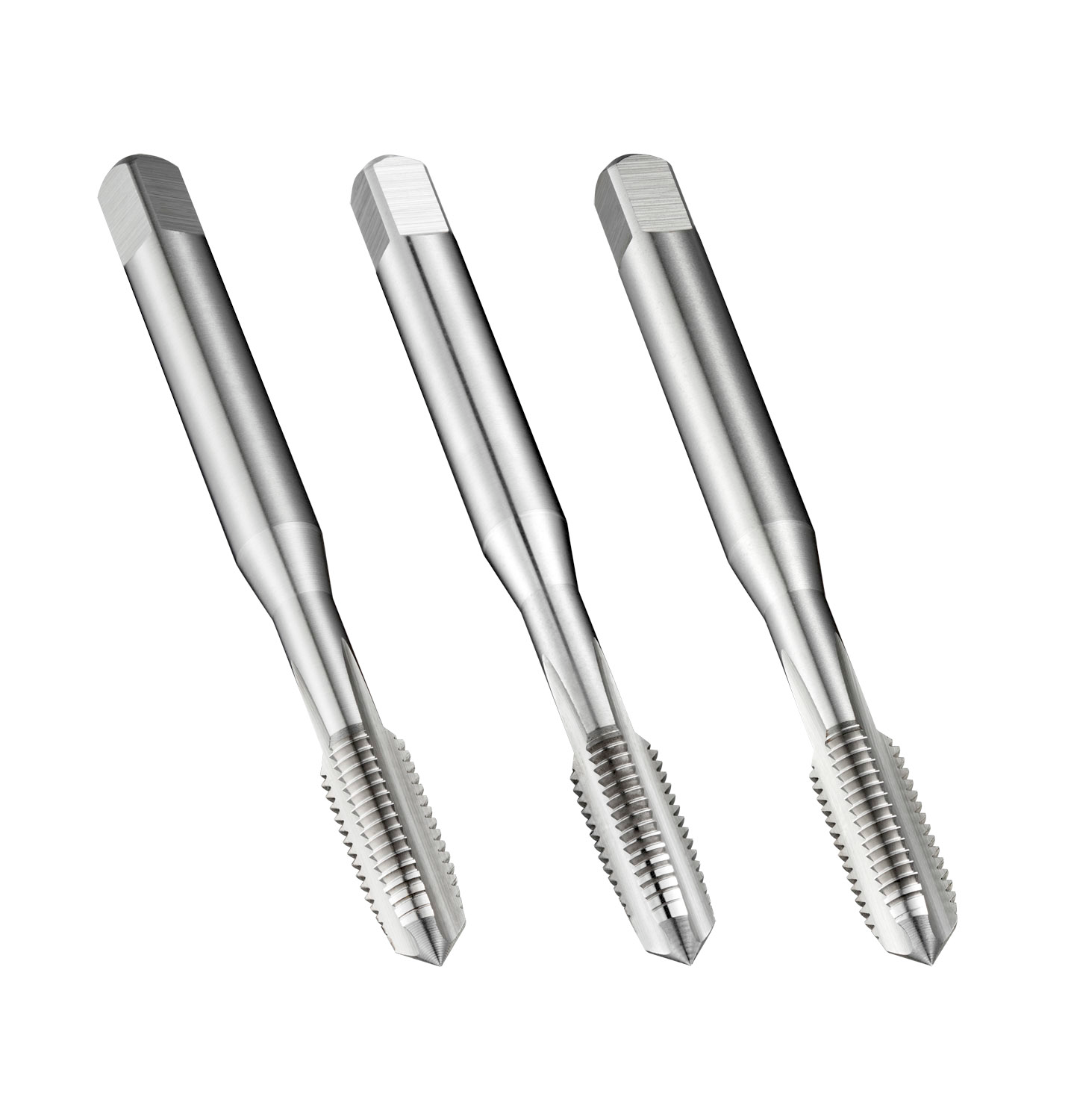

Set of straight flute hand taps NO6 for Unified National Fine thread UNF 1″ with 12 TPI and 2B class of fit, consisting of 1 tap with a 6-8xP taper lead, 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ISO 529 standard with 18.0mm shank and 14.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.7062 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E5241NO6 Product number (SAP): 86016849 EAN number: 7320760153307 Thread diameter size (TDZ): 1" Thread diameter – millimeter (TD): 25.4 mm Threads per inch (TPI): 12 Overall length – millimeter (OAL): 130 mm Overall length – inch (OAL): 5.1181 inch Threading length – millimeter (THL): 35 mm Threading length – inch (THL): 1.378 inch Connection diameter – inch (DCON MS): 0.7087 inch Connection diameter – millimeter (DCON MS): 18 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.5512 inch Clamping width – millimeter (WSC): 14 mm Clamping Length – inch (LCS): 0.7087 inch Clamping Length – millimeter (LSC): 18 mm Premachined hole diameter – inch (PHD): 0.9154 inch Premachined hole diameter – millimeter (PHD): 23.25 mm Gross weight – grams: 833.3 ISO: E5241NO6 Ordering code ANSI: E5241NO6

Need Technical Advice?

Description

Additional information

Brand

DORMER
