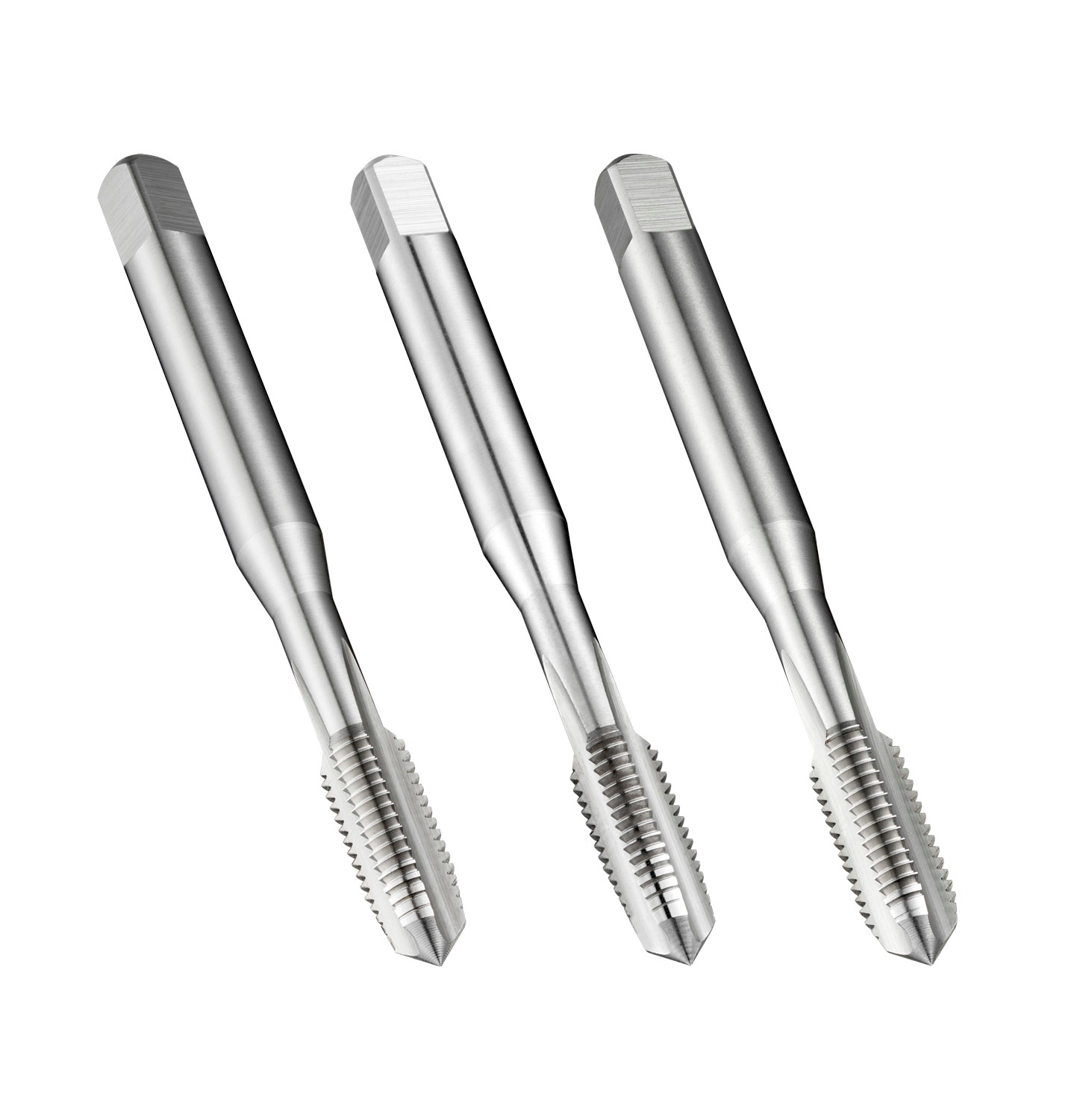

DORMER E5247/16NO6 HSS Straight Flute Taps

Description: Value
Product name: E5247/16NO6
Product number (SAP): 86016885
EAN number: 7320760153444
Thread diameter size (TDZ): 7/16
Thread diameter – millimeter (TD): 11.112 mm
Threads per inch (TPI): 20
Overall length – millimeter (OAL): 85 mm
Overall length – inch (OAL): 3.3465 inch
Threading length – millimeter (THL): 19 mm
Threading length – inch (THL): 0.748 inch
Connection diameter – inch (DCON MS): 0.315 inch
Connection diameter – millimeter (DCON MS): 8 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.248 inch
Clamping width – millimeter (WSC): 6.3 mm
Clamping Length – inch (LCS): 0.3543 inch
Clamping Length – millimeter (LSC): 9 mm
Premachined hole diameter – inch (PHD): 0.3898 inch
Premachined hole diameter – millimeter (PHD): 9.9 mm
Gross weight – grams: 131.6
ISO: E5247/16NO6
Ordering code ANSI: E5247/16NO6
