DORMER E5311/2NO6 HSS Straight Flute Taps

Description

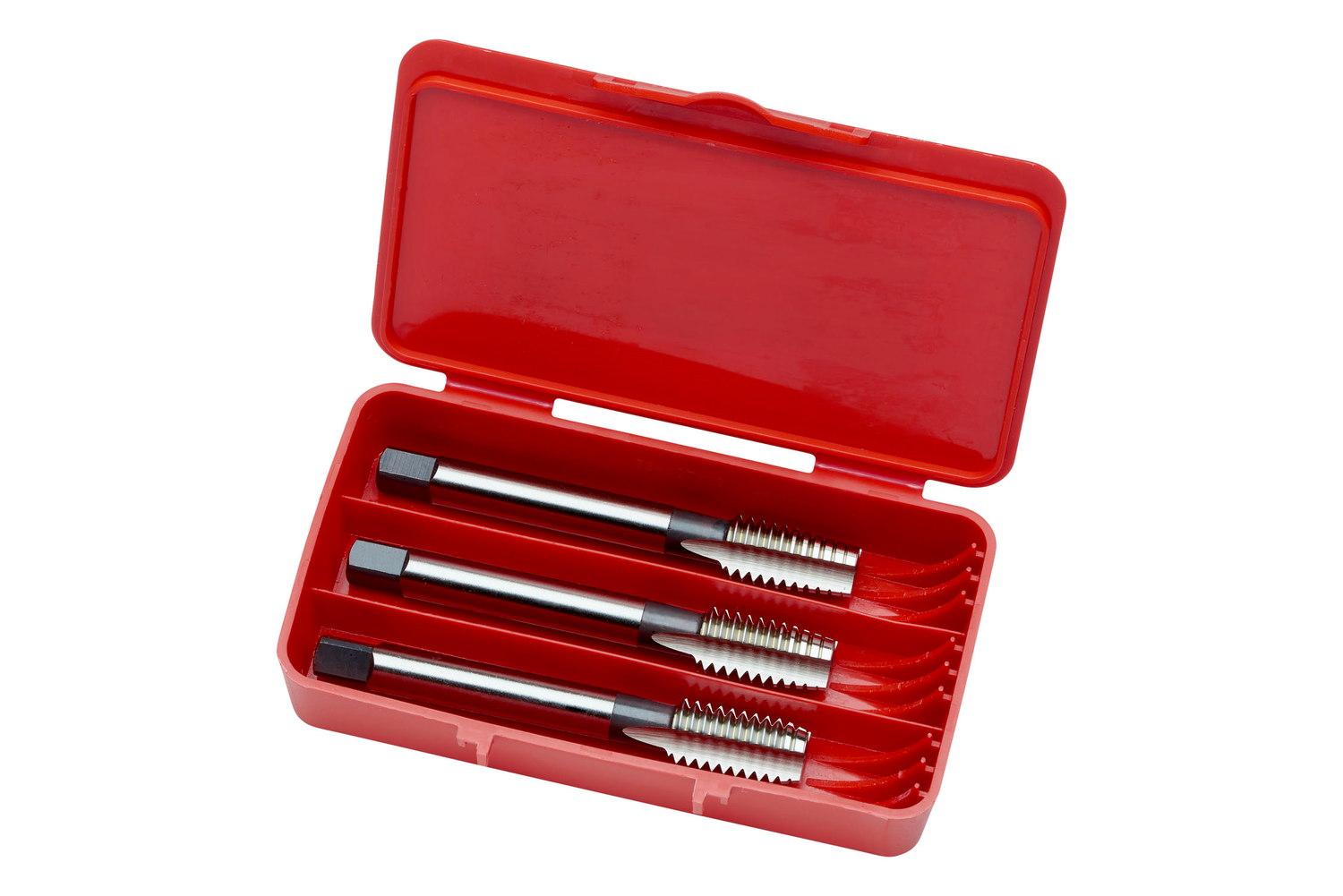

Set of straight flute hand taps NO6 for British Standard Whitworth thread BSW 1/2″ with 12 TPI and Medium class of fit, consisting of 1 tap with a 6-8xP taper lead, 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ISO 529 standard with 9.0mm shank and 7.1mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.1826 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E5311/2NO6 Product number (SAP): 86016901 EAN number: 7320760155196 Thread diameter size (TDZ): 1/2 Thread diameter – millimeter (TD): 12.7 mm Threads per inch (TPI): 12 Overall length – millimeter (OAL): 89 mm Overall length – inch (OAL): 3.5039 inch Threading length – millimeter (THL): 22 mm Threading length – inch (THL): 0.8661 inch Connection diameter – inch (DCON MS): 0.3543 inch Connection diameter – millimeter (DCON MS): 9 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.2795 inch Clamping width – millimeter (WSC): 7.1 mm Premachined hole diameter – inch (PHD): 0.4134 inch Premachined hole diameter – millimeter (PHD): 10.5 mm Gross weight – grams: 160.6 ISO: E5311/2NO6 Ordering code ANSI: E5311/2NO6
