DORMER E5311NO6 HSS Straight Flute Taps

Description

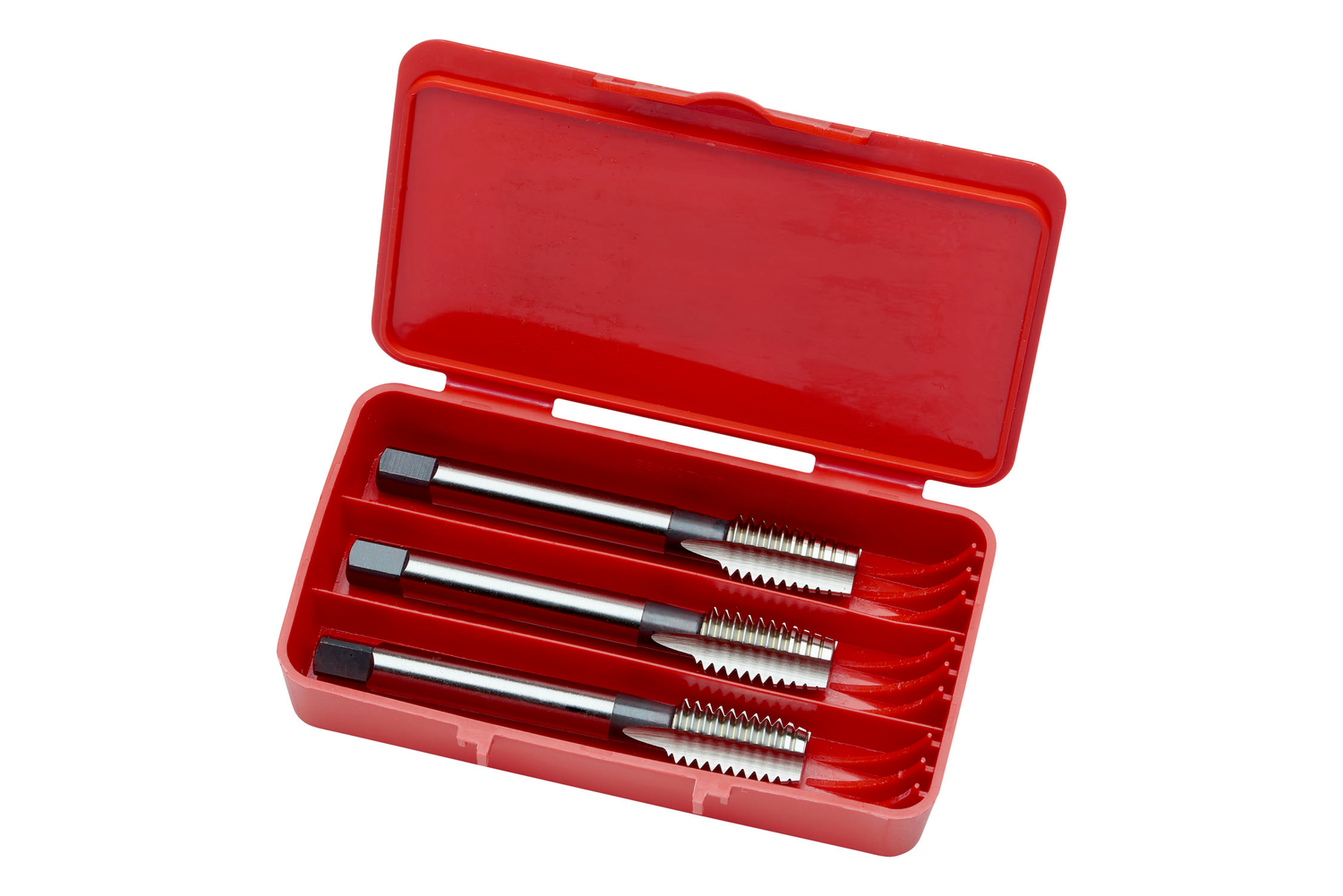

Set of straight flute hand taps NO6 for British Standard Whitworth thread BSW 1″ with 8 TPI and Medium class of fit, consisting of 1 tap with a 6-8xP taper lead, 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ISO 529 standard with 18.0mm shank and 14.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.7062 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E5311NO6 Product number (SAP): 86016913 EAN number: 7320760155080 Thread diameter size (TDZ): 1" Thread diameter – millimeter (TD): 25.4 mm Threads per inch (TPI): 8 Overall length – millimeter (OAL): 130 mm Overall length – inch (OAL): 5.1181 inch Threading length – millimeter (THL): 35 mm Threading length – inch (THL): 1.378 inch Connection diameter – inch (DCON MS): 0.7087 inch Connection diameter – millimeter (DCON MS): 18 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.5512 inch Clamping width – millimeter (WSC): 14 mm Premachined hole diameter – inch (PHD): 0.8661 inch Premachined hole diameter – millimeter (PHD): 22 mm Gross weight – grams: 819.2 ISO: E5311NO6 Ordering code ANSI: E5311NO6

Need Technical Advice?

Description

Additional information

Brand

DORMER
