DORMER E5313/16NO6 HSS Straight Flute Taps

Description

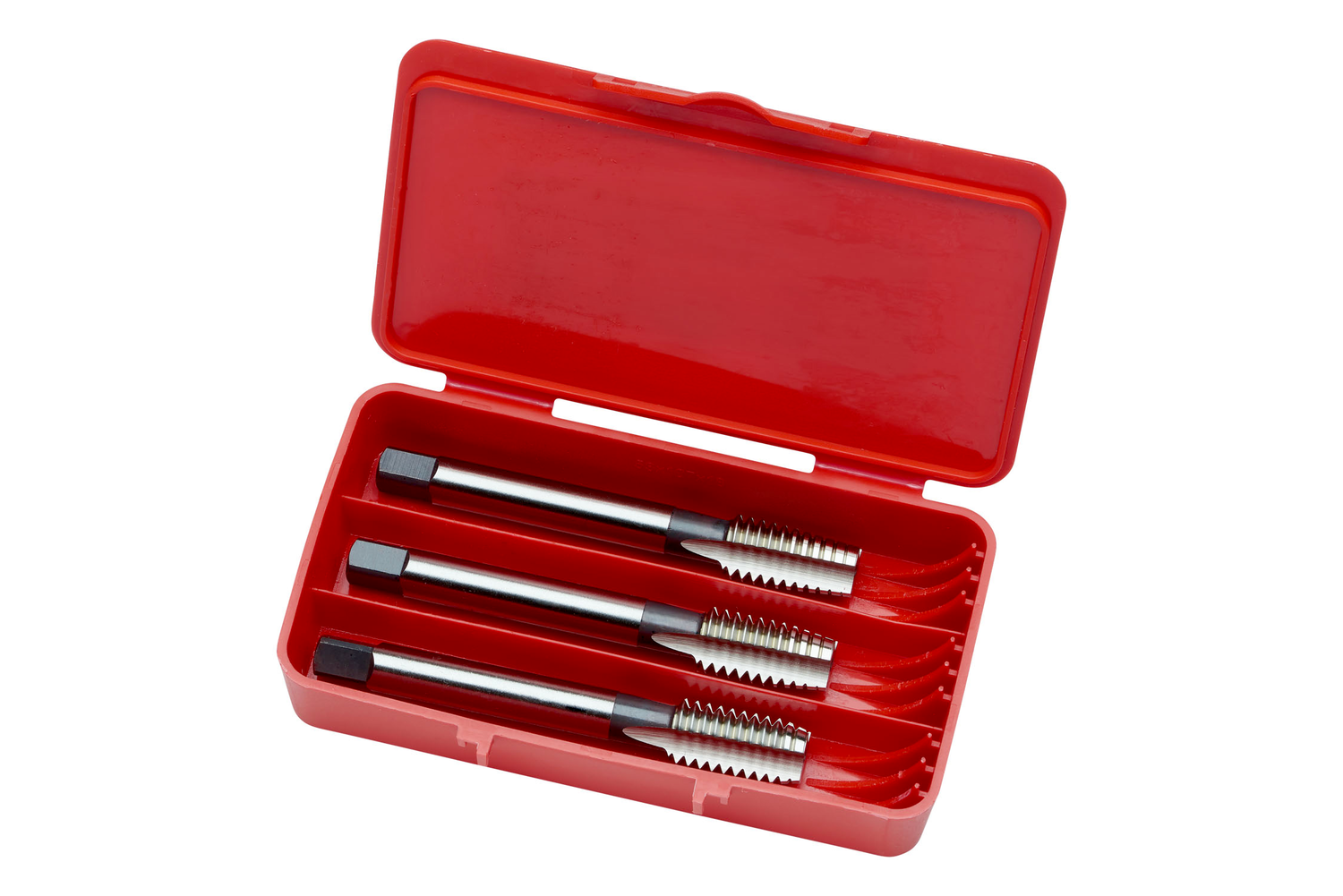

Set of straight flute hand taps NO6 for British Standard Whitworth thread BSW 3/16″ with 24 TPI and Medium class of fit, consisting of 1 tap with a 6-8xP taper lead, 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ISO 529 standard with 5.0mm shank and 4.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.1056 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E5313/16NO6 Product number (SAP): 86016917 EAN number: 7320760155295 Thread diameter size (TDZ): 3/16 Thread diameter – millimeter (TD): 4.763 mm Threads per inch (TPI): 24 Overall length – millimeter (OAL): 58 mm Overall length – inch (OAL): 2.2835 inch Threading length – millimeter (THL): 11 mm Threading length – inch (THL): 0.4331 inch Connection diameter – inch (DCON MS): 0.1969 inch Connection diameter – millimeter (DCON MS): 5 mm Flute count (NOF): 3 Usable Length – inch (LU): 0.7874 inch Usable Length – millimeter (LU): 20 mm Clamping width – inch (WSC): 0.1575 inch Clamping width – millimeter (WSC): 4 mm Premachined hole diameter – inch (PHD): 0.1457 inch Premachined hole diameter – millimeter (PHD): 3.7 mm Gross weight – grams: 27.4 ISO: E5313/16NO6 Ordering code ANSI: E5313/16NO6

Need Technical Advice?

Description

Additional information

Brand

DORMER
