DORMER E5315/8NO6 HSS Straight Flute Taps

Product Code: E5315/8NO6

$286.65$260.59 Ex. GST

Product Code: E5315/8NO6 SKU E5315/8NO6 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

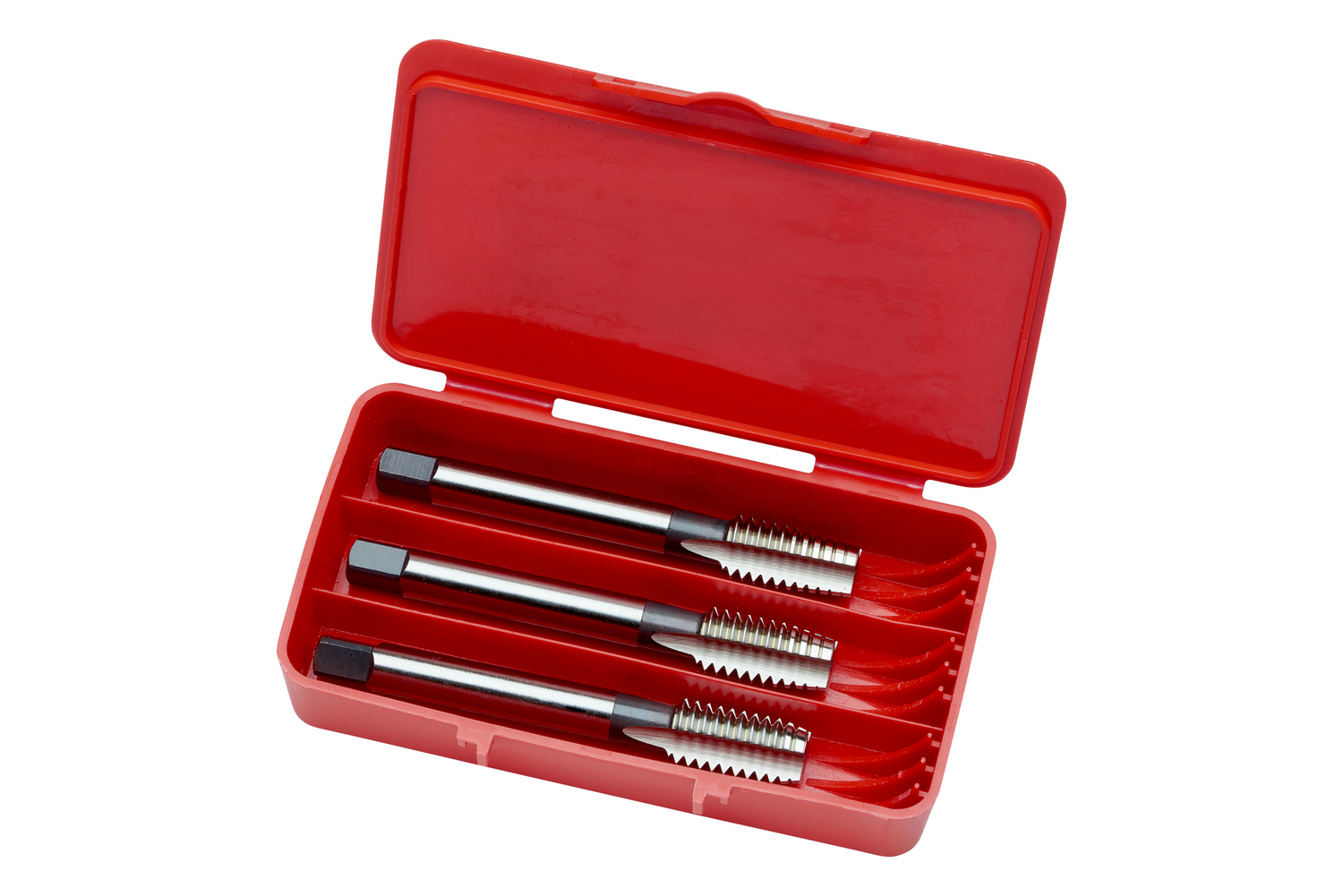

Set of straight flute hand taps NO6 for British Standard Whitworth thread BSW 5/8″ with 11 TPI and Medium class of fit, consisting of 1 tap with a 6-8xP taper lead, 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ISO 529 standard with 12.5mm shank and 10.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.2783 kg
Dimensions
barcode
Additional Information

Description: Value
Product name: E5315/8NO6
Product number (SAP): 86016937
EAN number: 7320760155158
Thread diameter size (TDZ): 5/8
Thread diameter – millimeter (TD): 15.875 mm
Threads per inch (TPI): 11
Overall length – millimeter (OAL): 102 mm
Overall length – inch (OAL): 4.0157 inch
Threading length – millimeter (THL): 24 mm
Threading length – inch (THL): 0.9449 inch
Connection diameter – inch (DCON MS): 0.4921 inch
Connection diameter – millimeter (DCON MS): 12.5 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.3937 inch
Clamping width – millimeter (WSC): 10 mm
Premachined hole diameter – inch (PHD): 0.5315 inch
Premachined hole diameter – millimeter (PHD): 13.5 mm
Gross weight – grams: 305.8
ISO: E5315/8NO6
Ordering code ANSI: E5315/8NO6

Brand

DORMER
