DORMER E5317/16NO6 HSS Straight Flute Taps

Description

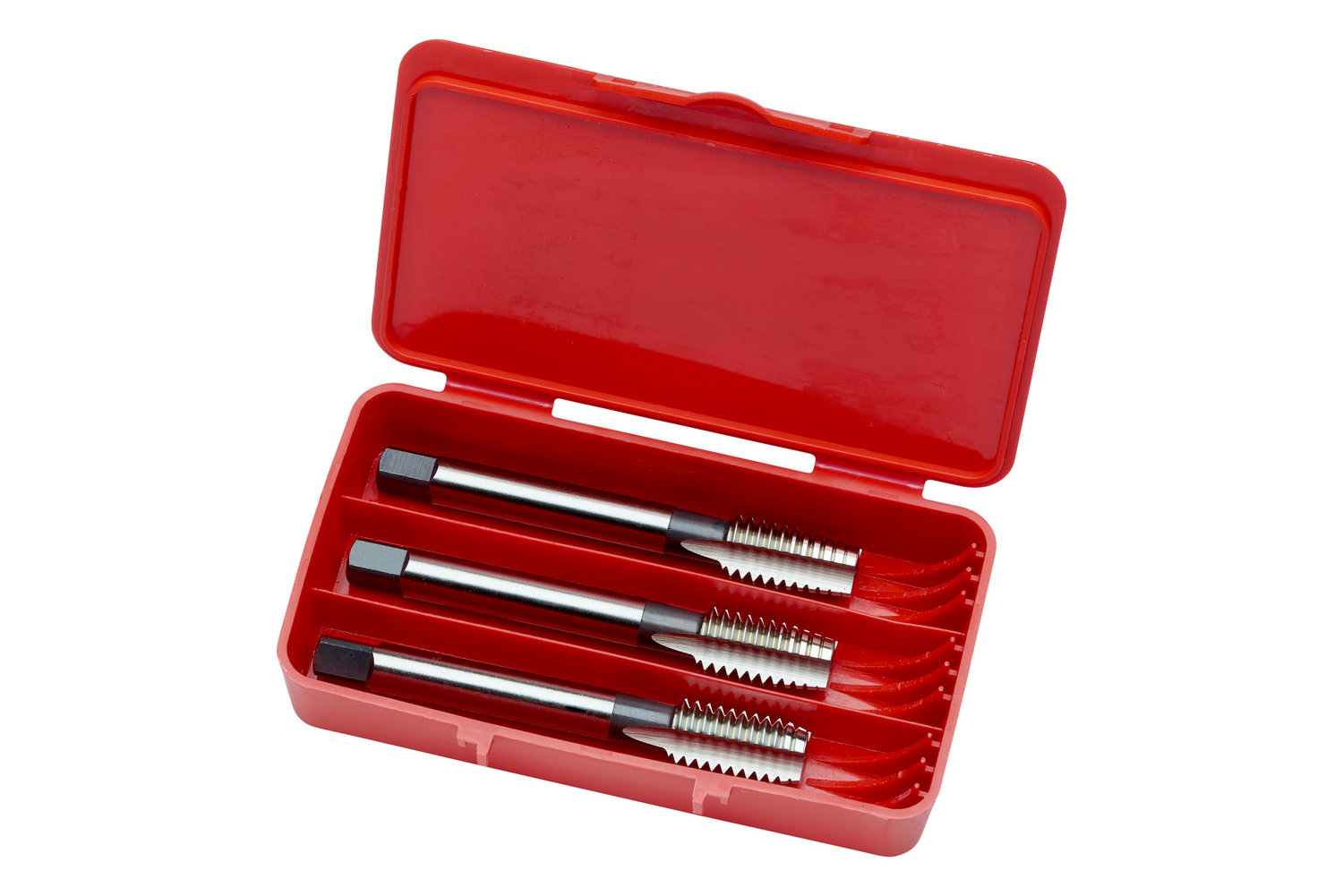

Set of straight flute hand taps NO6 for British Standard Whitworth thread BSW 7/16″ with 14 TPI and Medium class of fit, consisting of 1 tap with a 6-8xP taper lead, 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ISO 529 standard with 8.0mm shank and 6.3mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.2079 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E5317/16NO6 Product number (SAP): 86016941 EAN number: 7320760155219 Thread diameter size (TDZ): 7/16 Thread diameter – millimeter (TD): 11.112 mm Threads per inch (TPI): 14 Overall length – millimeter (OAL): 85 mm Overall length – inch (OAL): 3.3465 inch Threading length – millimeter (THL): 19 mm Threading length – inch (THL): 0.748 inch Connection diameter – inch (DCON MS): 0.315 inch Connection diameter – millimeter (DCON MS): 8 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.248 inch Clamping width – millimeter (WSC): 6.3 mm Premachined hole diameter – inch (PHD): 0.3622 inch Premachined hole diameter – millimeter (PHD): 9.2 mm Gross weight – grams: 128.8 ISO: E5317/16NO6 Ordering code ANSI: E5317/16NO6

Need Technical Advice?

Description

Additional information

Brand

DORMER
