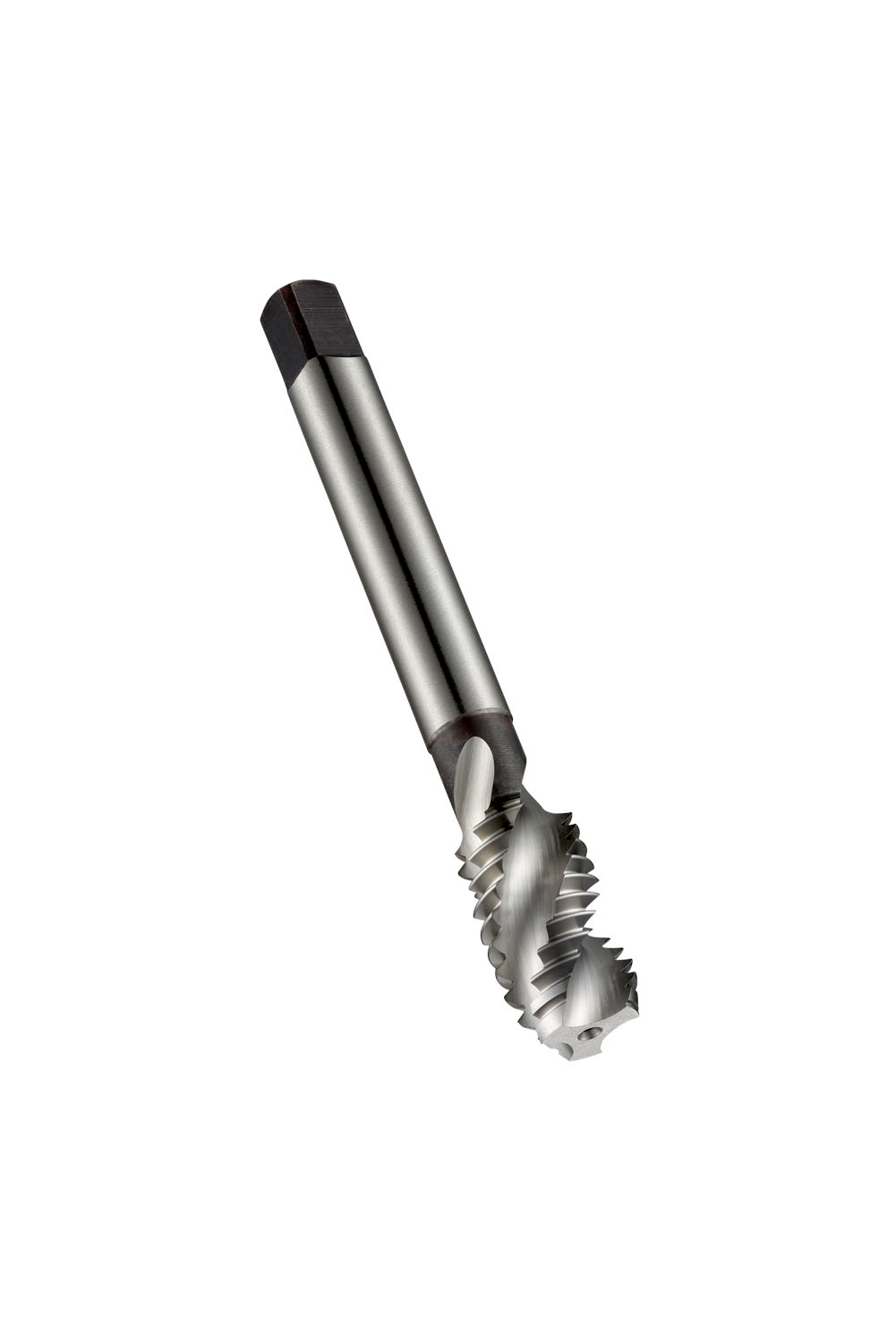

DORMER E5333/16BLUE

Description: Value
Product name: E5333/16BLUE
Product number (SAP): 86016949
EAN number: 7320760201497
Thread diameter size (TDZ): 3/16
Thread diameter – millimeter (TD): 4.763 mm
Threads per inch (TPI): 24
Overall length – millimeter (OAL): 58 mm
Overall length – inch (OAL): 2.2835 inch
Threading length – millimeter (THL): 11 mm
Threading length – inch (THL): 0.4331 inch
Connection diameter – inch (DCON MS): 0.1969 inch
Connection diameter – millimeter (DCON MS): 5 mm
Flute count (NOF): 3
Usable Length – inch (LU): 0.7874 inch
Usable Length – millimeter (LU): 20 mm
Clamping width – inch (WSC): 0.1575 inch
Clamping width – millimeter (WSC): 4 mm
Premachined hole diameter – inch (PHD): 0.1457 inch
Premachined hole diameter – millimeter (PHD): 3.7 mm
Gross weight – grams: 9
ISO: E5333/16BLUE
Ordering code ANSI: E5333/16BLUE
