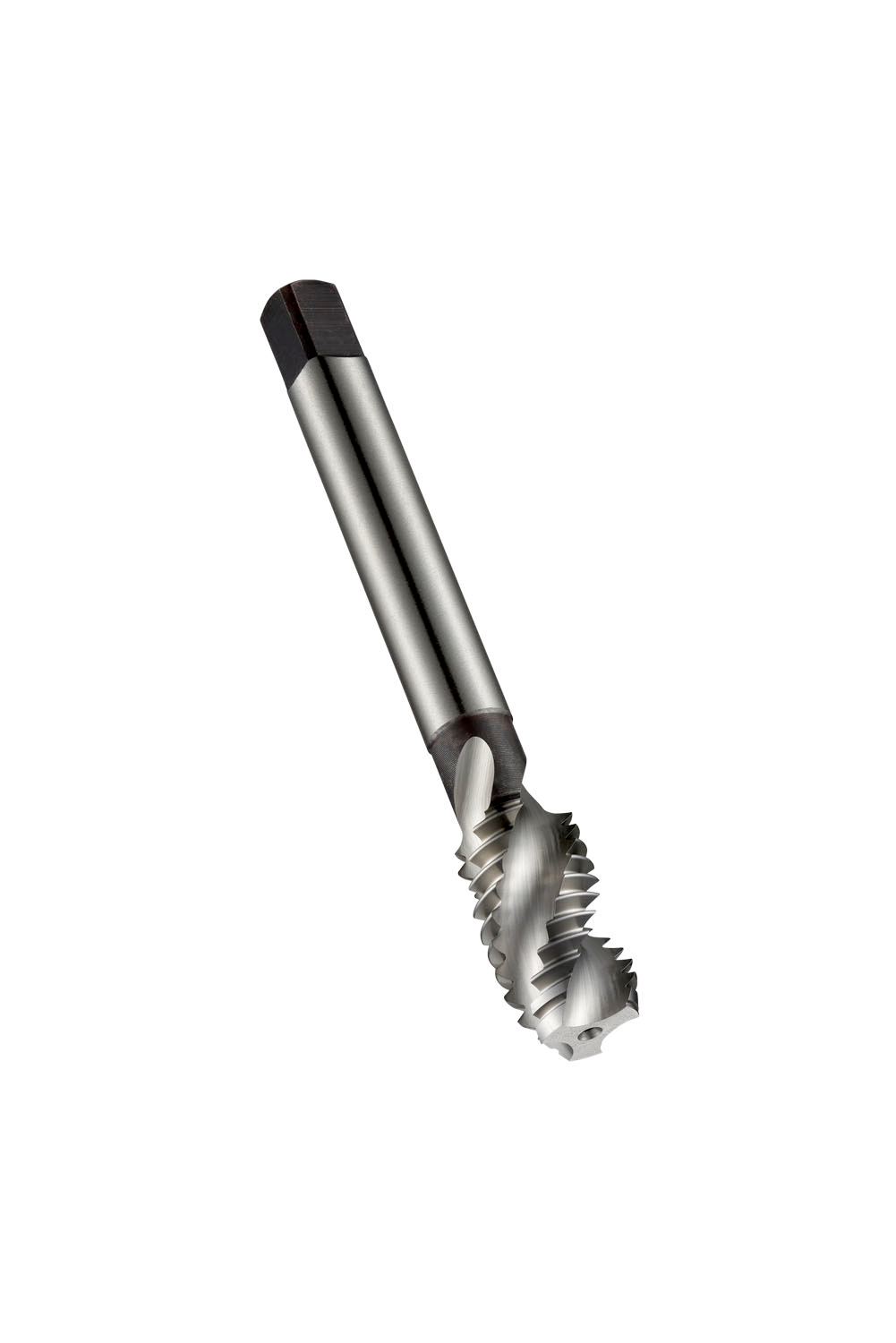

DORMER E5333/8BLUE

Description: Value
Product name: E5333/8BLUE
Product number (SAP): 86016953
EAN number: 7320760201541
Thread diameter size (TDZ): 3/8
Thread diameter – millimeter (TD): 9.525 mm
Threads per inch (TPI): 16
Overall length – millimeter (OAL): 80 mm
Overall length – inch (OAL): 3.1496 inch
Threading length – millimeter (THL): 18 mm
Threading length – inch (THL): 0.7087 inch
Connection diameter – inch (DCON MS): 0.3937 inch
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 3
Usable Length – inch (LU): 1.3386 inch
Usable Length – millimeter (LU): 34 mm
Clamping width – inch (WSC): 0.315 inch
Clamping width – millimeter (WSC): 8 mm
Premachined hole diameter – inch (PHD): 0.311 inch
Premachined hole diameter – millimeter (PHD): 7.9 mm
Gross weight – grams: 41
ISO: E5333/8BLUE
Ordering code ANSI: E5333/8BLUE
