DORMER E5343/4

Description

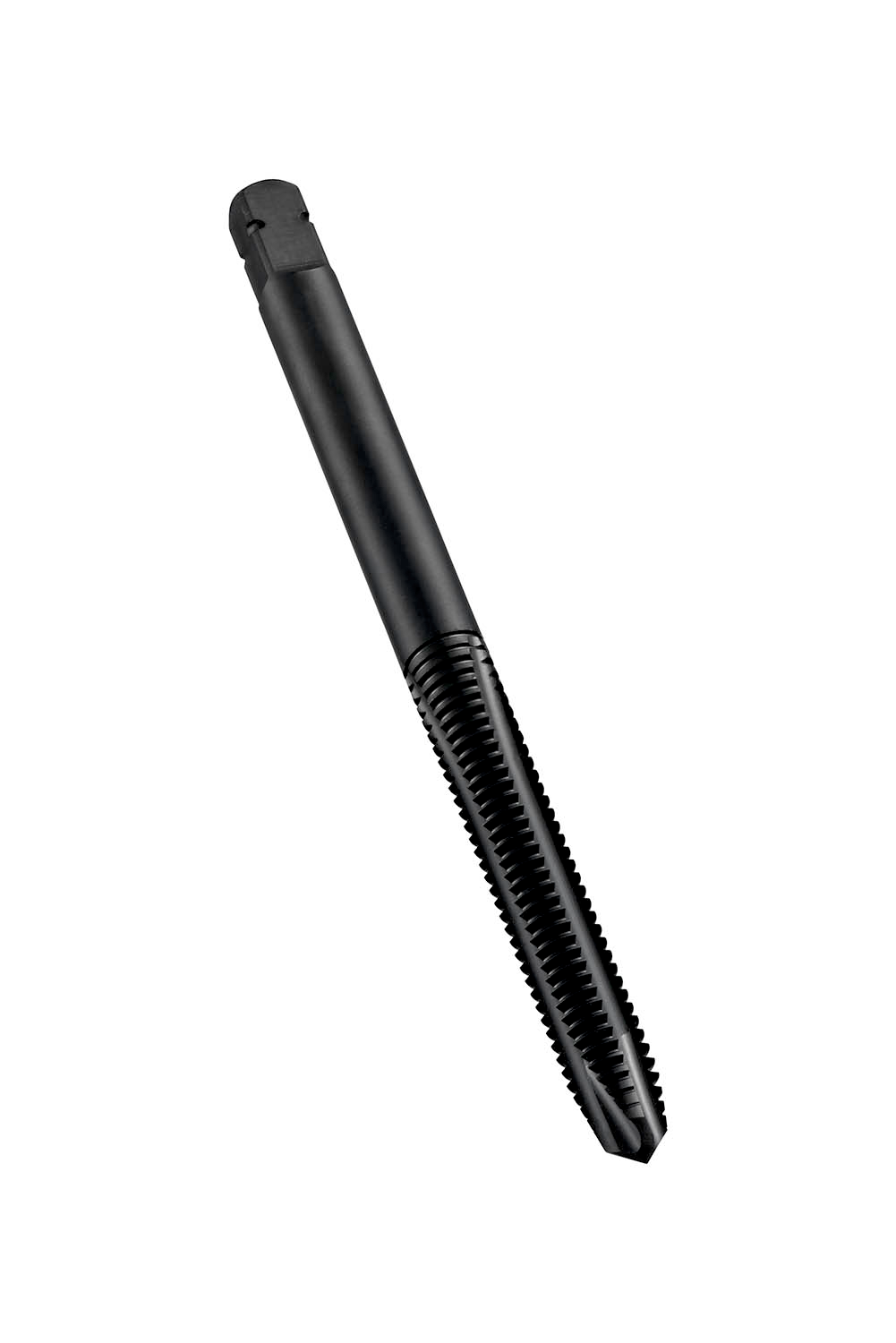

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for British Standard Whitworth thread BSW 3/4″ with 10 TPI and Medium class of fit, dimensions according to ISO 529 standard with 14.0mm shank and 11.2mm square drive, HSS with steam tempered surface finish for 2.5xD through hole threading in alloy steel

Additional information

Weight	0.1793 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E5343/4 Product number (SAP): 86016962 EAN number: 7320760201428 Thread diameter size (TDZ): 3/4 Thread diameter – millimeter (TD): 19.05 mm Threads per inch (TPI): 10 Overall length – millimeter (OAL): 112 mm Overall length – inch (OAL): 4.4094 inch Threading length – millimeter (THL): 29 mm Threading length – inch (THL): 1.1417 inch Connection diameter – inch (DCON MS): 0.5512 inch Connection diameter – millimeter (DCON MS): 14 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.4409 inch Clamping width – millimeter (WSC): 11.2 mm Premachined hole diameter – inch (PHD): 0.6496 inch Premachined hole diameter – millimeter (PHD): 16.5 mm Gross weight – grams: 143 ISO: E5343/4 Ordering code ANSI: E5343/4

Need Technical Advice?

Description

Additional information

Brand

DORMER
