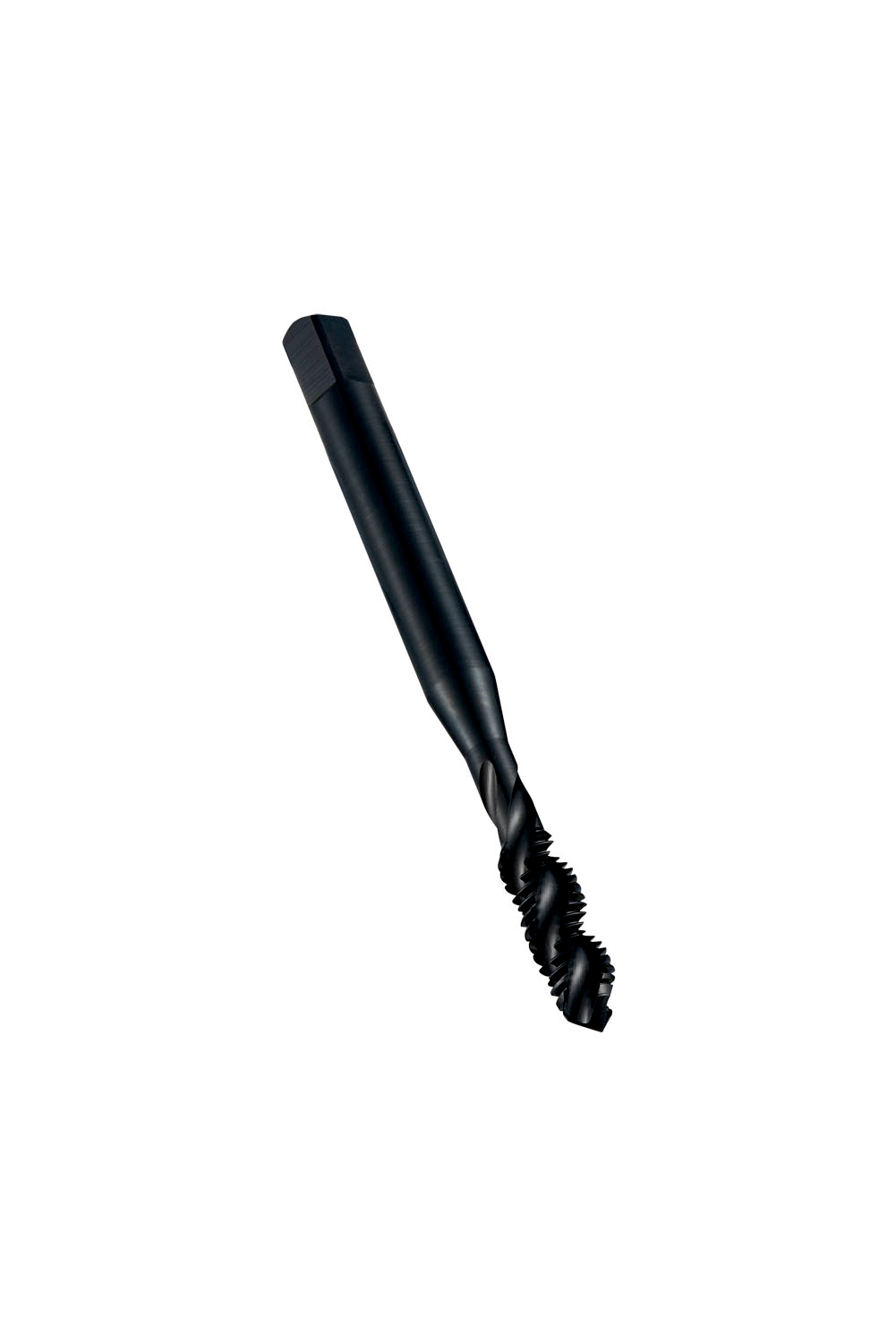

DORMER E544BA8BLUE ISO Machine Taps

Description: Value
Product name: E544BA8BLUE
Product number (SAP): 86017063
EAN number: 7320760204016
Thread diameter size (TDZ): BA 8
Thread diameter – millimeter (TD): 2.2 mm
Thread pitch – millimeter (TP): 0.43 mm
Overall length – millimeter (OAL): 44.5 mm
Overall length – inch (OAL): 1.752 inch
Threading length – millimeter (THL): 9.5 mm
Threading length – inch (THL): 0.374 inch
Connection diameter – inch (DCON MS): 0.1102 inch
Connection diameter – millimeter (DCON MS): 2.8 mm
Flute count (NOF): 2
Usable Length – inch (LU): 0.374 inch
Usable Length – millimeter (LU): 9.5 mm
Clamping width – inch (WSC): 0.0866 inch
Clamping width – millimeter (WSC): 2.2 mm
Clamping Length – inch (LCS): 0.1969 inch
Clamping Length – millimeter (LSC): 5 mm
Premachined hole diameter – inch (PHD): 0.0709 inch
Premachined hole diameter – millimeter (PHD): 1.8 mm
Gross weight – grams: 4.125
ISO: E544BA8BLUE
Ordering code ANSI: E544BA8BLUE
