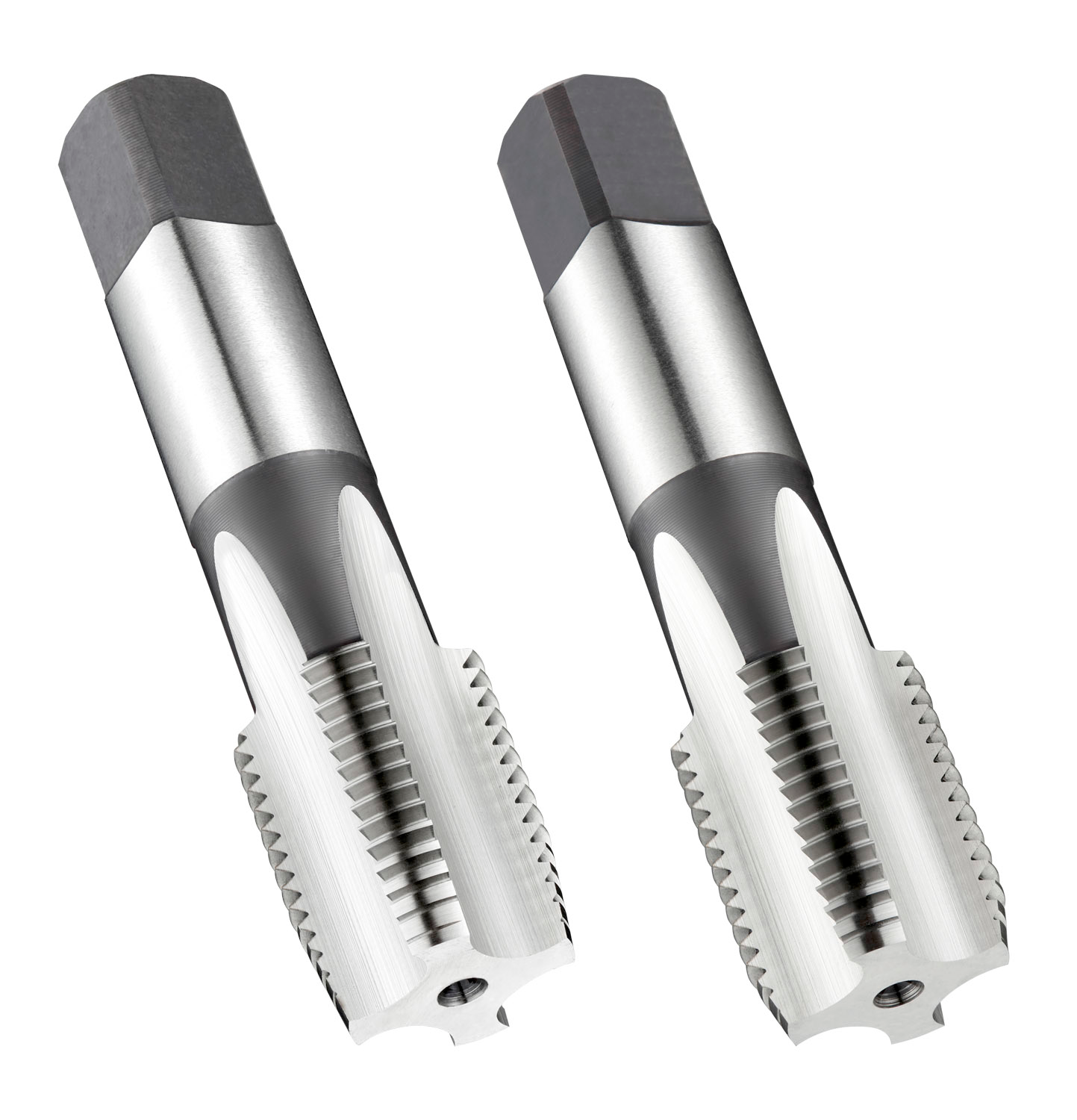

DORMER E5471/4NO7 ISO Machine Taps

Description

Set of straight flute hand taps NO7 for British Standard Pipe thread G 1/4″ with 19 TPI and Normal class of fit, consisting of 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ISO 2284 standard with 10.0mm shank and 8.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Additional information

Weight	0.1144 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E5471/4NO7 Product number (SAP): 86017082 EAN number: 7320760157213 Thread diameter size (TDZ): 1/4 Thread diameter – millimeter (TD): 13.157 mm Threads per inch (TPI): 19 Overall length – millimeter (OAL): 67 mm Overall length – inch (OAL): 2.6378 inch Threading length – millimeter (THL): 19 mm Threading length – inch (THL): 0.748 inch Connection diameter – inch (DCON MS): 0.3937 inch Connection diameter – millimeter (DCON MS): 10 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.315 inch Clamping width – millimeter (WSC): 8 mm Clamping Length – inch (LCS): 0.4331 inch Clamping Length – millimeter (LSC): 11 mm Premachined hole diameter – inch (PHD): 0.4646 inch Premachined hole diameter – millimeter (PHD): 11.8 mm Gross weight – grams: 109.2 ISO: E5471/4NO7 Ordering code ANSI: E5471/4NO7
