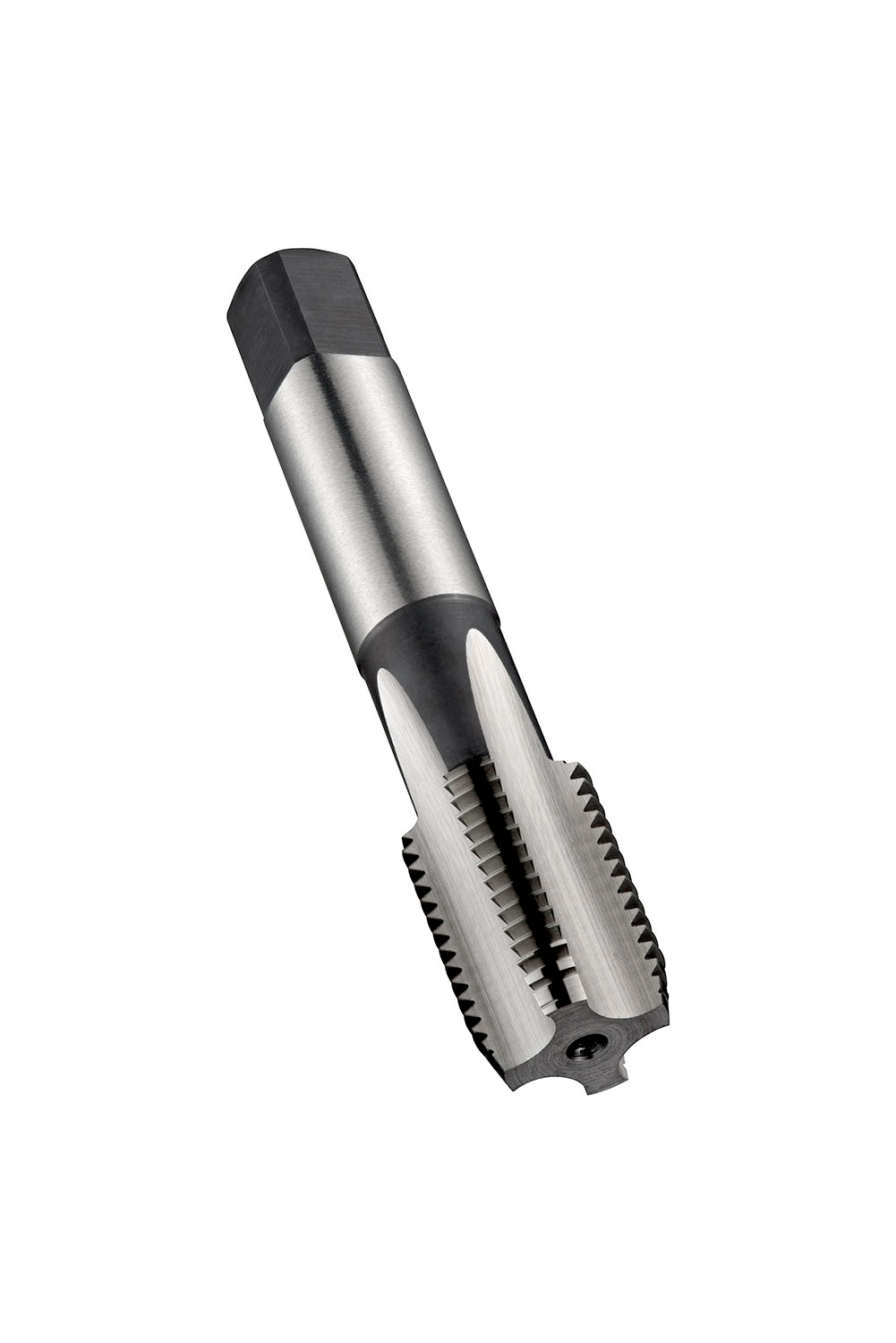

DORMER E5472NO2 ISO Machine Taps

Description: Value
Product name: E5472NO2
Product number (SAP): 86017091
EAN number: 7320760157374
Thread diameter size (TDZ): 2"
Thread diameter – millimeter (TD): 59.614 mm
Threads per inch (TPI): 11
Overall length – millimeter (OAL): 140 mm
Overall length – inch (OAL): 5.5118 inch
Threading length – millimeter (THL): 41 mm
Threading length – inch (THL): 1.6142 inch
Connection diameter – inch (DCON MS): 1.5748 inch
Connection diameter – millimeter (DCON MS): 40 mm
Flute count (NOF): 6
Clamping width – inch (WSC): 1.2402 inch
Clamping width – millimeter (WSC): 31.5 mm
Clamping Length – inch (LCS): 1.3386 inch
Clamping Length – millimeter (LSC): 34 mm
Premachined hole diameter – inch (PHD): 2.2441 inch
Premachined hole diameter – millimeter (PHD): 57 mm
Gross weight – grams: 1583
ISO: E5472NO2
Ordering code ANSI: E5472NO2
