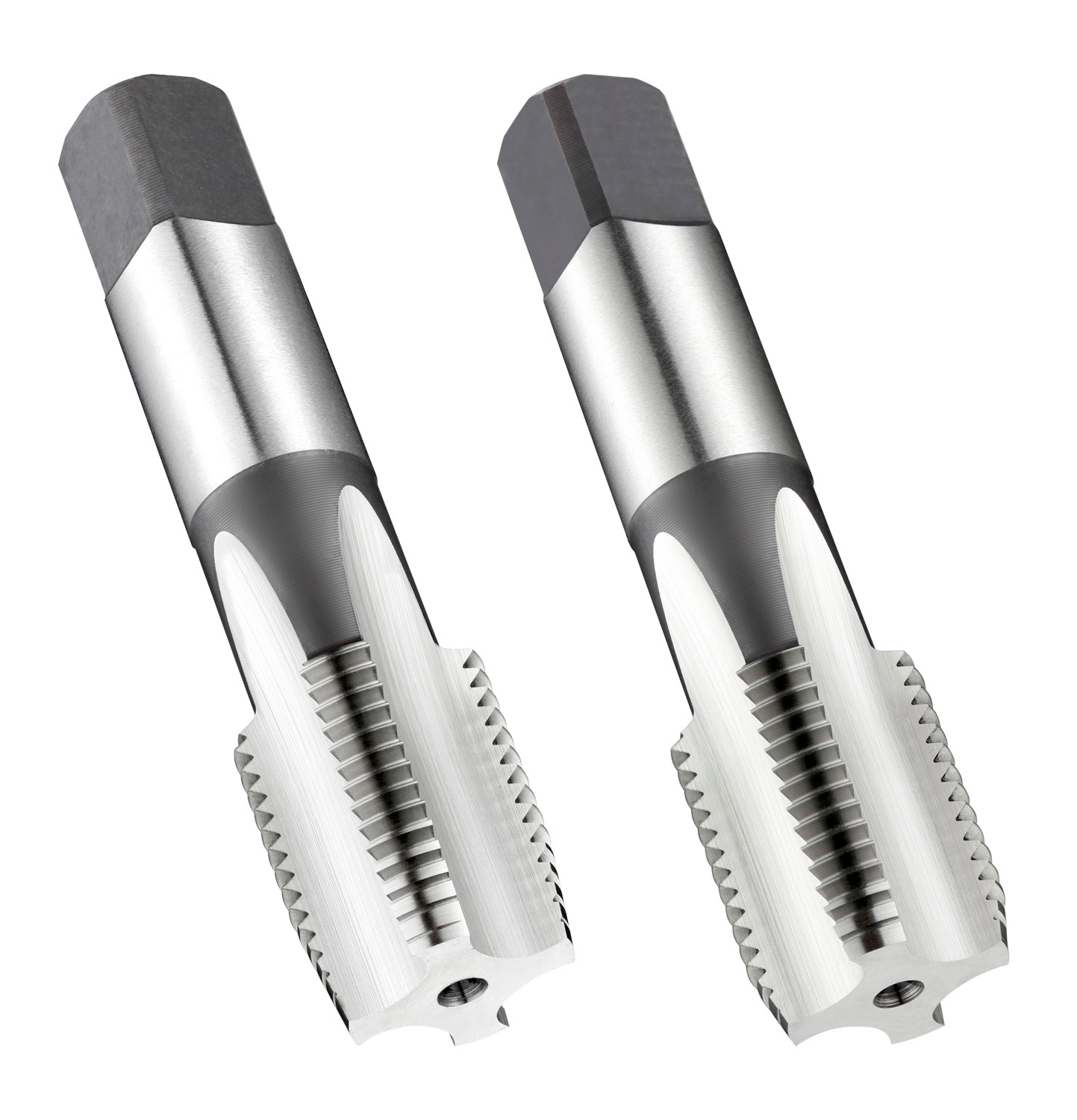

DORMER E5475/8NO7 ISO Machine Taps

Description

Set of straight flute hand taps NO7 for British Standard Pipe thread G 5/8″ with 14 TPI and Normal class of fit, consisting of 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ISO 2284 standard with 18.0mm shank and 14.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Additional information

Weight	0.3828 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E5475/8NO7 Product number (SAP): 86017104 EAN number: 7320760340684 Thread diameter size (TDZ): 5/8 Thread diameter – millimeter (TD): 22.911 mm Threads per inch (TPI): 14 Overall length – millimeter (OAL): 91 mm Overall length – inch (OAL): 3.5827 inch Threading length – millimeter (THL): 26 mm Threading length – inch (THL): 1.0236 inch Connection diameter – inch (DCON MS): 0.7087 inch Connection diameter – millimeter (DCON MS): 18 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.5512 inch Clamping width – millimeter (WSC): 14 mm Clamping Length – inch (LCS): 0.7087 inch Clamping Length – millimeter (LSC): 18 mm Premachined hole diameter – inch (PHD): 0.8268 inch Premachined hole diameter – millimeter (PHD): 21 mm Gross weight – grams: 398 ISO: E5475/8NO7 Ordering code ANSI: E5475/8NO7

Need Technical Advice?

Description

Additional information

Brand

DORMER
