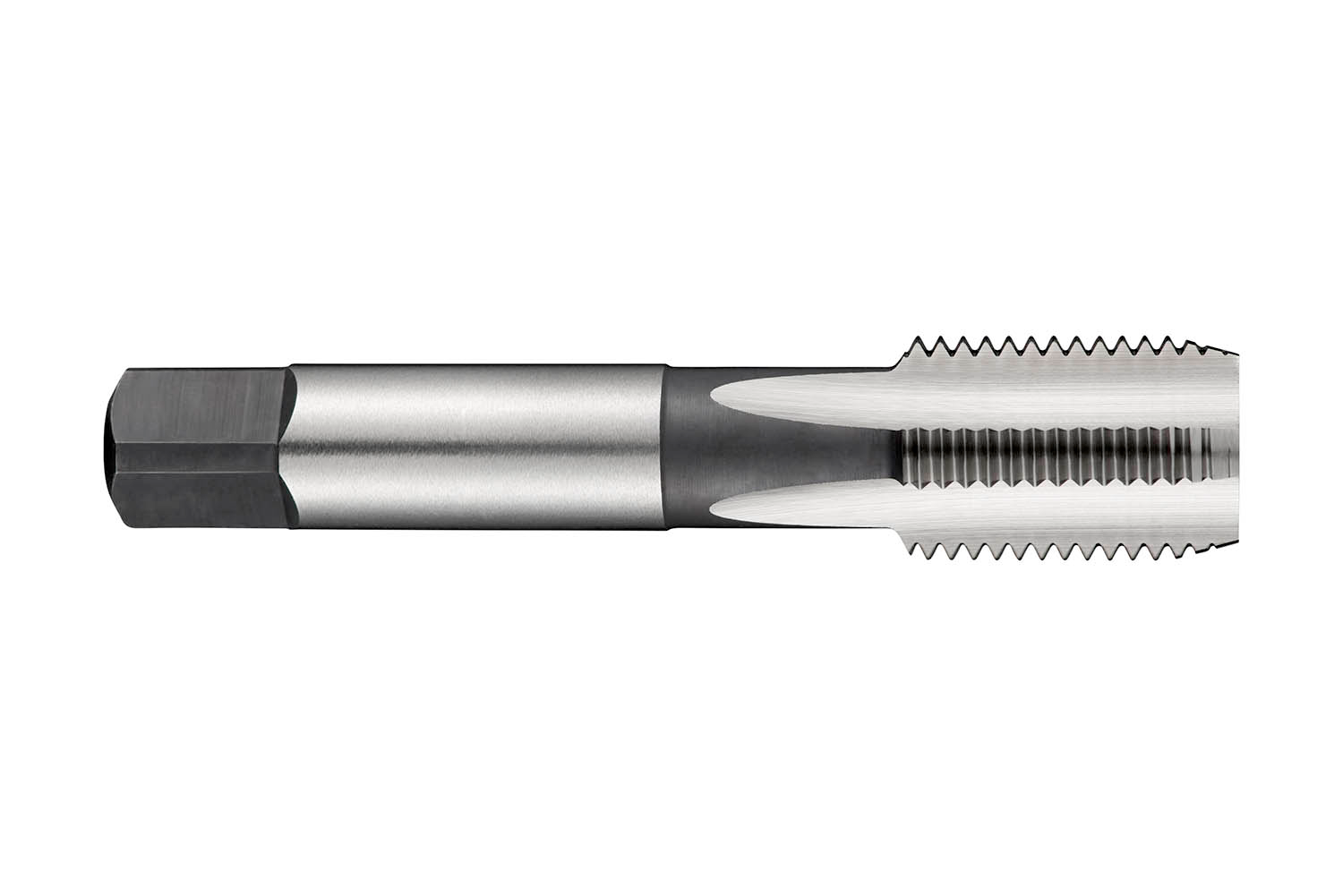

DORMER E5477/8NO2 ISO Machine Taps

Description: Value
Product name: E5477/8NO2
Product number (SAP): 86017106
EAN number: 7320760099353

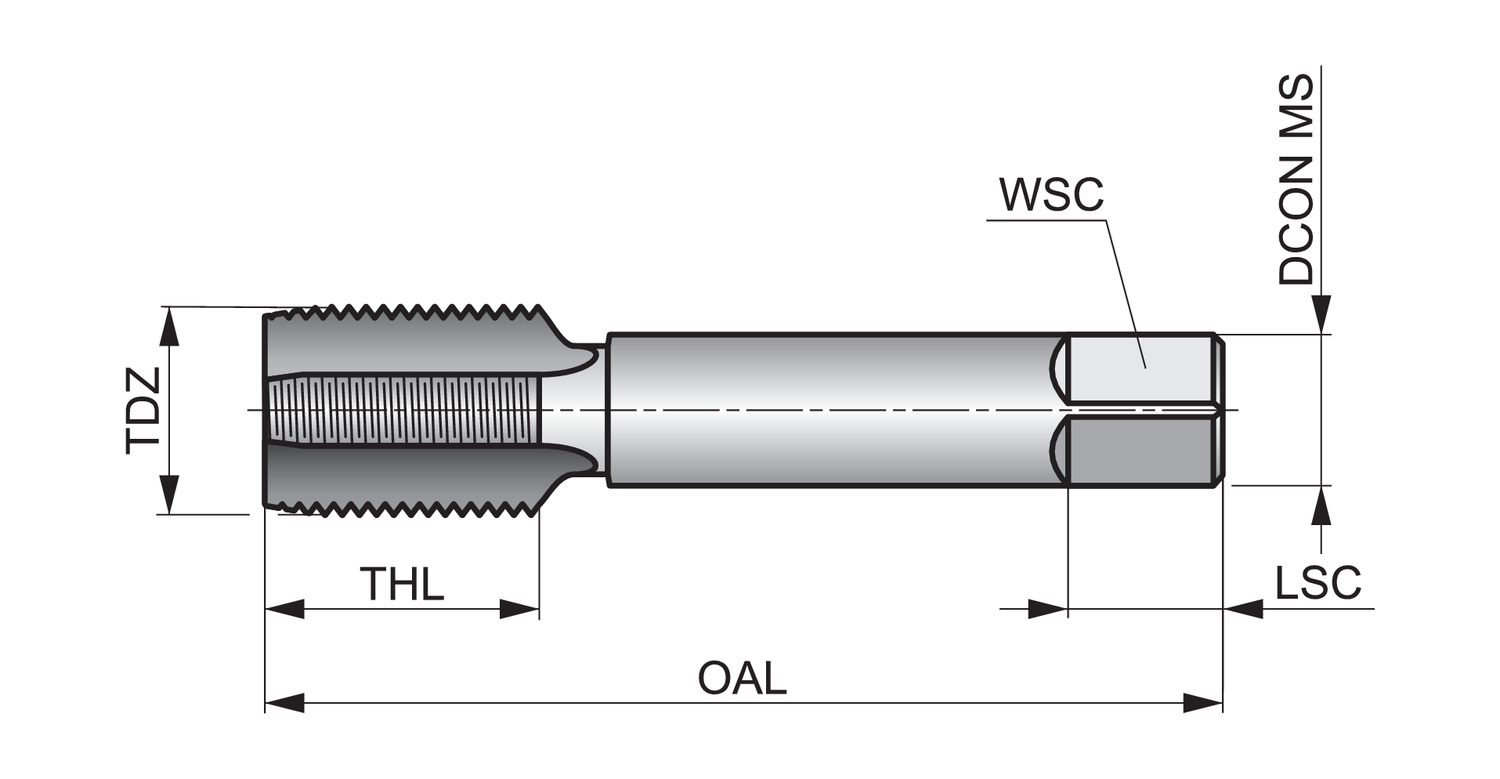

Thread diameter size (TDZ): 7/8
Thread diameter – millimeter (TD): 30.201 mm
Threads per inch (TPI): 14
Overall length – millimeter (OAL): 102 mm
Overall length – inch (OAL): 4.0157 inch
Threading length – millimeter (THL): 29 mm
Threading length – inch (THL): 1.1417 inch
Connection diameter – inch (DCON MS): 0.8819 inch
Connection diameter – millimeter (DCON MS): 22.4 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.7087 inch
Clamping width – millimeter (WSC): 18 mm
Clamping Length – inch (LCS): 0.8661 inch
Clamping Length – millimeter (LSC): 22 mm
Premachined hole diameter – inch (PHD): 1.1122 inch
Premachined hole diameter – millimeter (PHD): 28.25 mm
Gross weight – grams: 320
ISO: E5477/8NO2
Ordering code ANSI: E5477/8NO2
