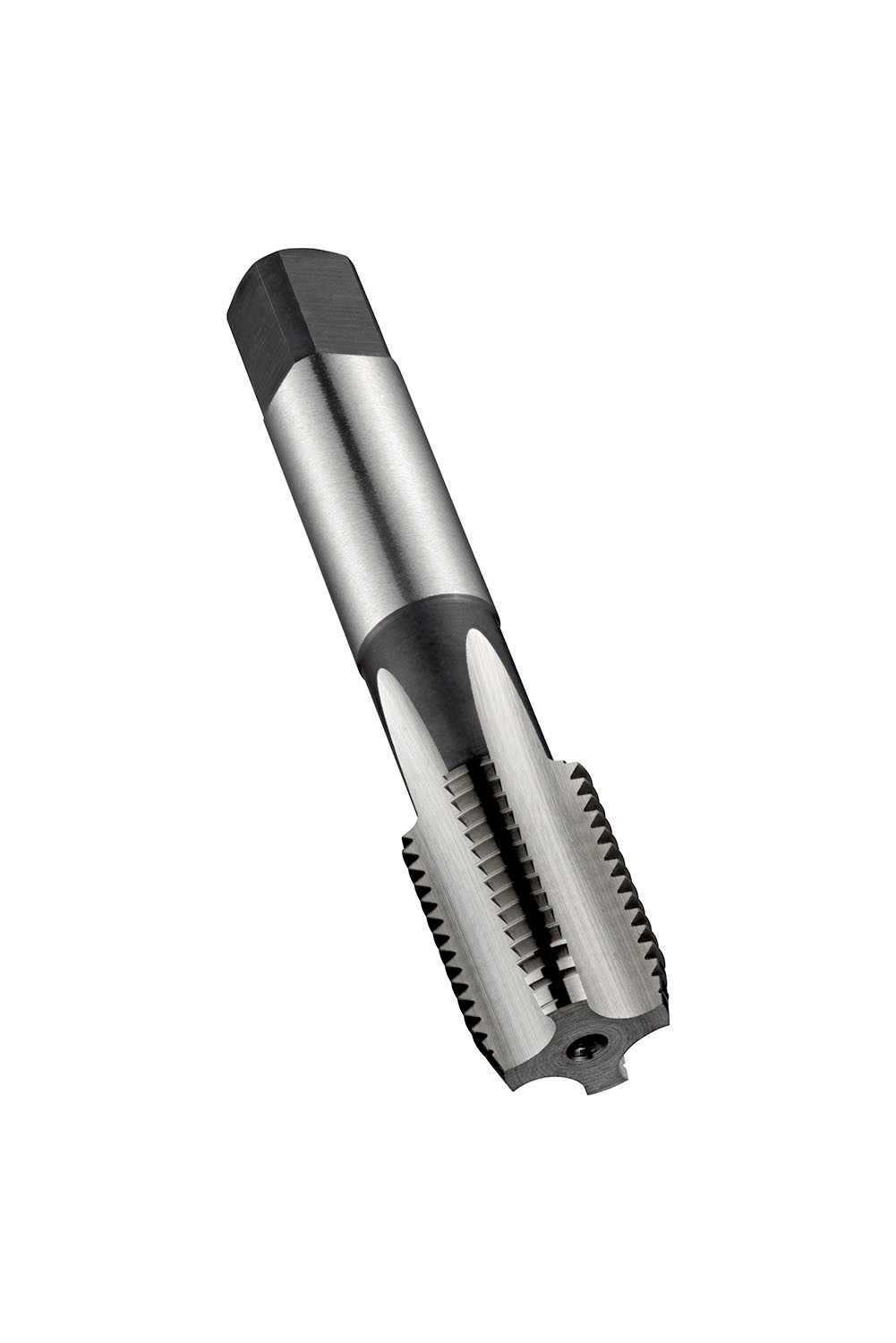

DORMER E5501.1/2 ISO Machine Taps

Description: Value
Product name: E5501.1/2
Product number (SAP): 86017109
EAN number: 7320760099452
Thread diameter size (TDZ): 1.1/2
Thread diameter – millimeter (TD): 47.803 mm
Threads per inch (TPI): 11
Overall length – millimeter (OAL): 125 mm
Overall length – inch (OAL): 4.9213 inch
Threading length – millimeter (THL): 37 mm
Threading length – inch (THL): 1.4567 inch
Connection diameter – inch (DCON MS): 1.3976 inch
Connection diameter – millimeter (DCON MS): 35.5 mm
Flute count (NOF): 7
Clamping width – inch (WSC): 1.1024 inch
Clamping width – millimeter (WSC): 28 mm
Clamping Length – inch (LCS): 1.2205 inch
Clamping Length – millimeter (LSC): 31 mm
Premachined hole diameter – inch (PHD): 1.752 inch
Premachined hole diameter – millimeter (PHD): 44.5 mm
Gross weight – grams: 1028.5
ISO: E5501.1/2
Ordering code ANSI: E5501.1/2
