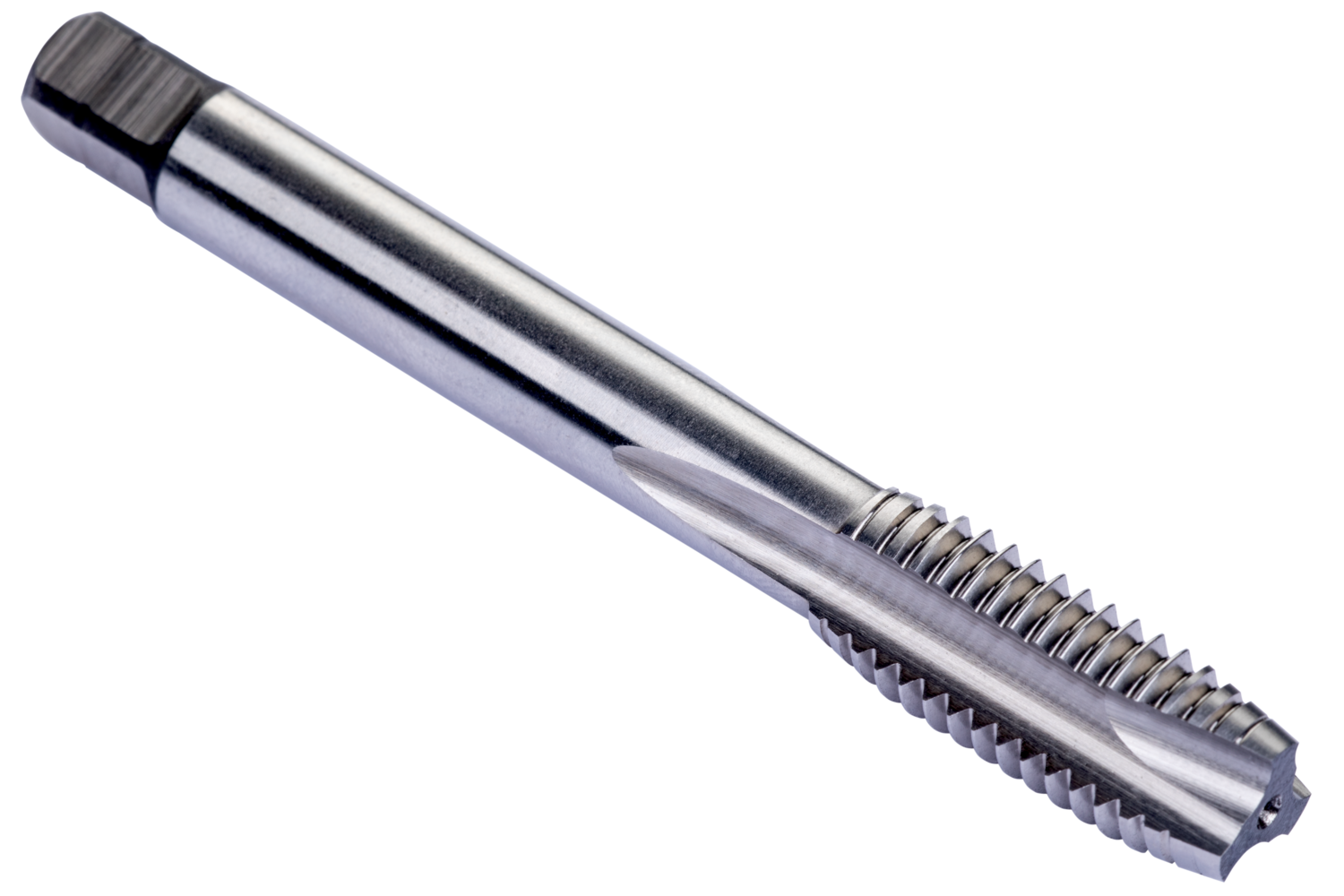

DORMER E556M12 Professional HSS Taps

Description: Value
Product name: E556M12
Product number (SAP): 86044385
EAN number: 3603607025994
Thread diameter size (TDZ): 12
Thread pitch – millimeter (TP): 1.75 mm
Overall length – millimeter (OAL): 89 mm
Overall length – inch (OAL): 3.5039 inch
Threading length – millimeter (THL): 29 mm
Threading length – inch (THL): 1.1417 inch
Connection diameter – inch (DCON MS): 0.3543 inch
Connection diameter – millimeter (DCON MS): 9 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.2795 inch
Clamping width – millimeter (WSC): 7.1 mm
Clamping Length – inch (LCS): 0.3937 inch
Clamping Length – millimeter (LSC): 10 mm
Premachined hole diameter – inch (PHD): 0.4055 inch
Premachined hole diameter – millimeter (PHD): 10.3 mm
Gross weight – grams: 51
ISO: E556M12
