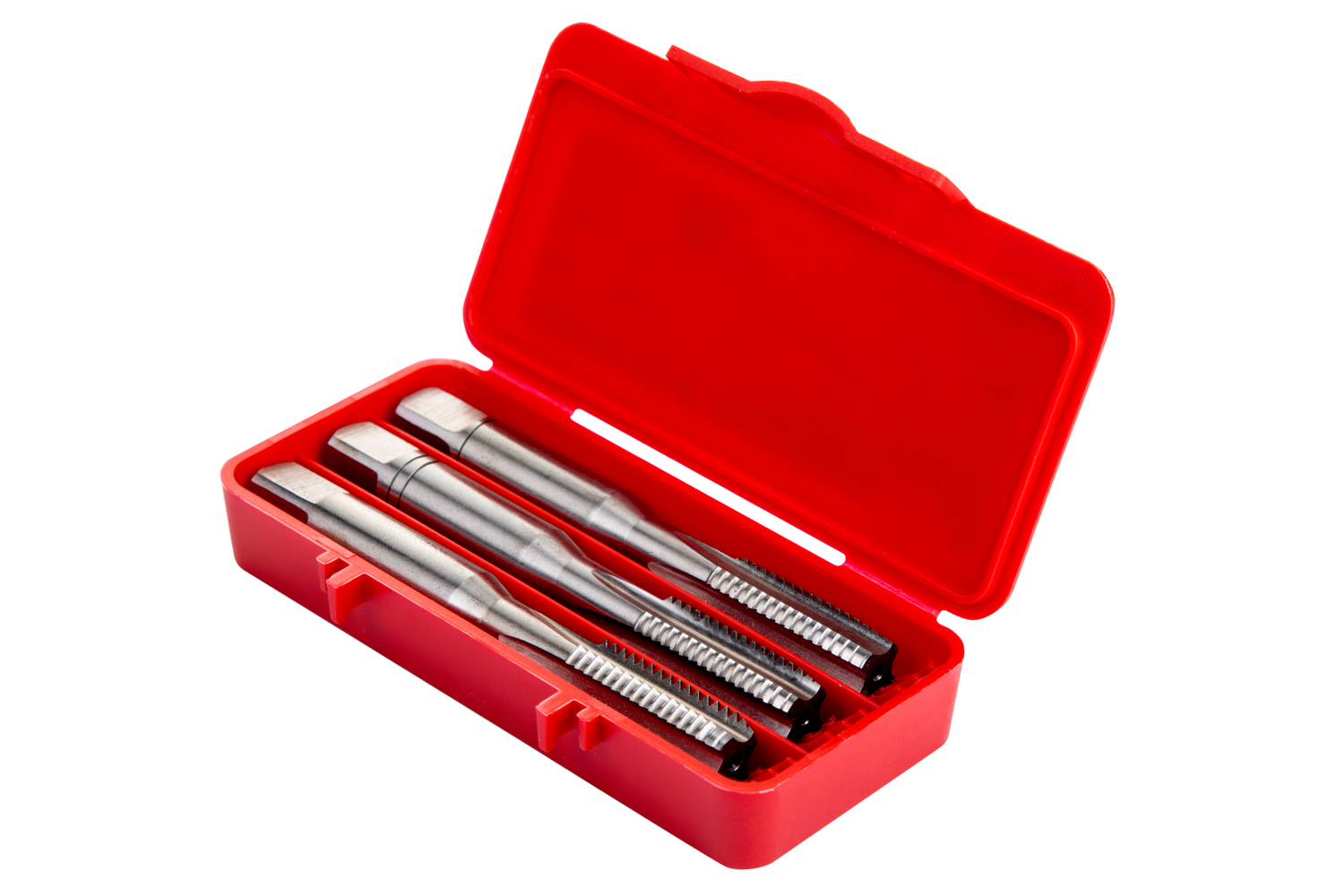

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E559M10NO8 Professional HSS Taps
$43.74$39.76 Ex. GST
Thread size M10 mm x 1.5 mm, with thread tolerance class 93707.
3603607151105
Description: Value Product name: E559M10NO8 Thread diameter size (TDZ): 10 Thread pitch – millimeter (TP): 1.5 mm Overall length – millimeter (OAL): 80 mm Thread diameter – millimeter (TD): 10 mm Threading length – millimeter (THL): 24 mm Connection diameter – millimeter (DCON MS): 10 mm Clamping width – millimeter (WSC): 8 mm Clamping Length – millimeter (LSC): 11 mm Flute count (NOF): 4 Premachined hole diameter – millimeter (PHD): 8.5 mm Usable Length – millimeter (LU): 39 mm
