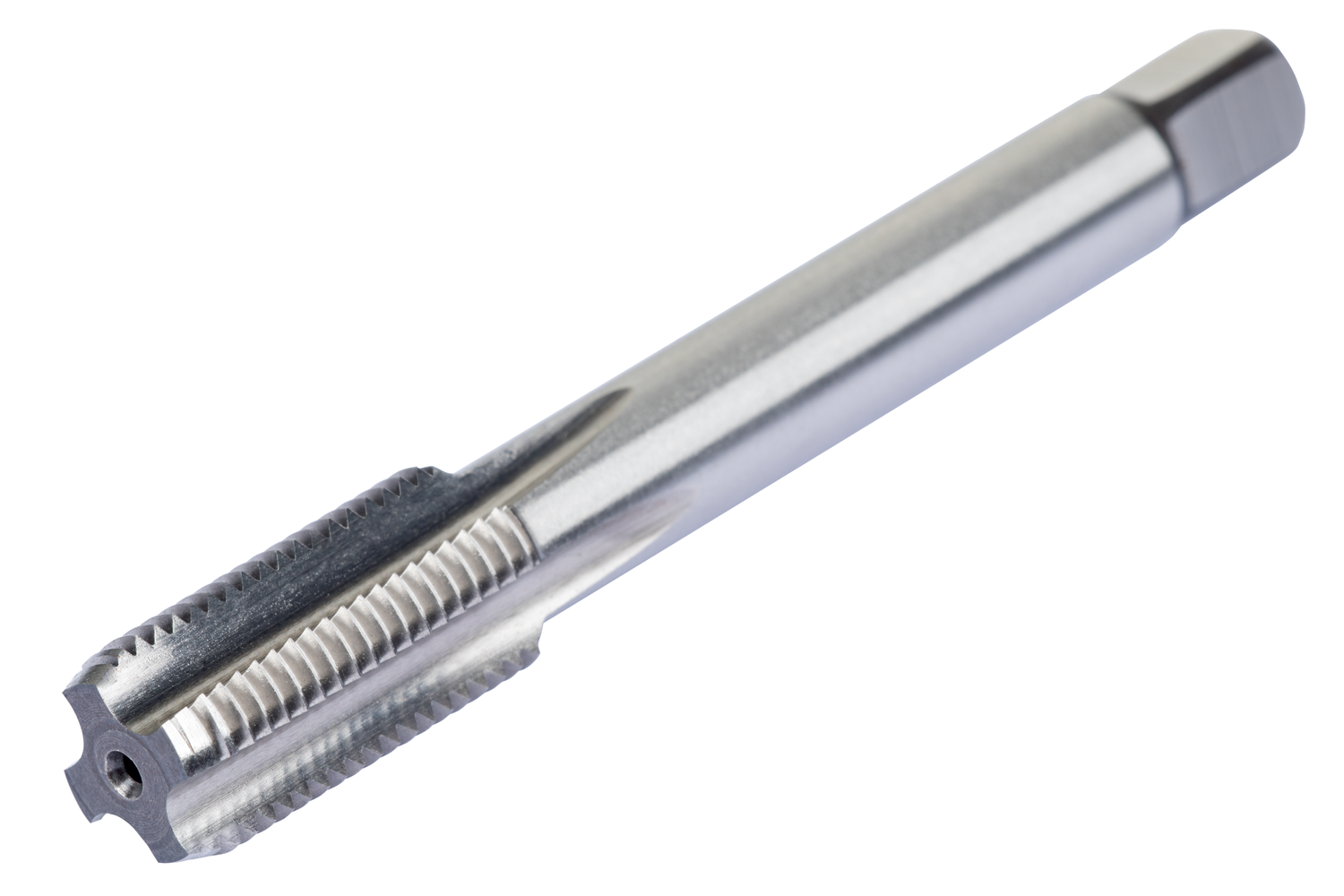

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E559M16X1.5NO3 Professional HSS Taps
$42.94$39.04 Ex. GST
Thread size MF16 mm x 1.5 mm, with thread tolerance class 93707.
3603607151389
Description: Value Product name: E559M16X1.5NO3 Thread diameter size (TDZ): 16 Thread pitch – millimeter (TP): 1.5 mm Overall length – millimeter (OAL): 102 mm Thread diameter – millimeter (TD): 16 mm Threading length – millimeter (THL): 32 mm Connection diameter – millimeter (DCON MS): 12.5 mm Clamping width – millimeter (WSC): 10 mm Clamping Length – millimeter (LSC): 13 mm Flute count (NOF): 4 Premachined hole diameter – millimeter (PHD): 14.5 mm
