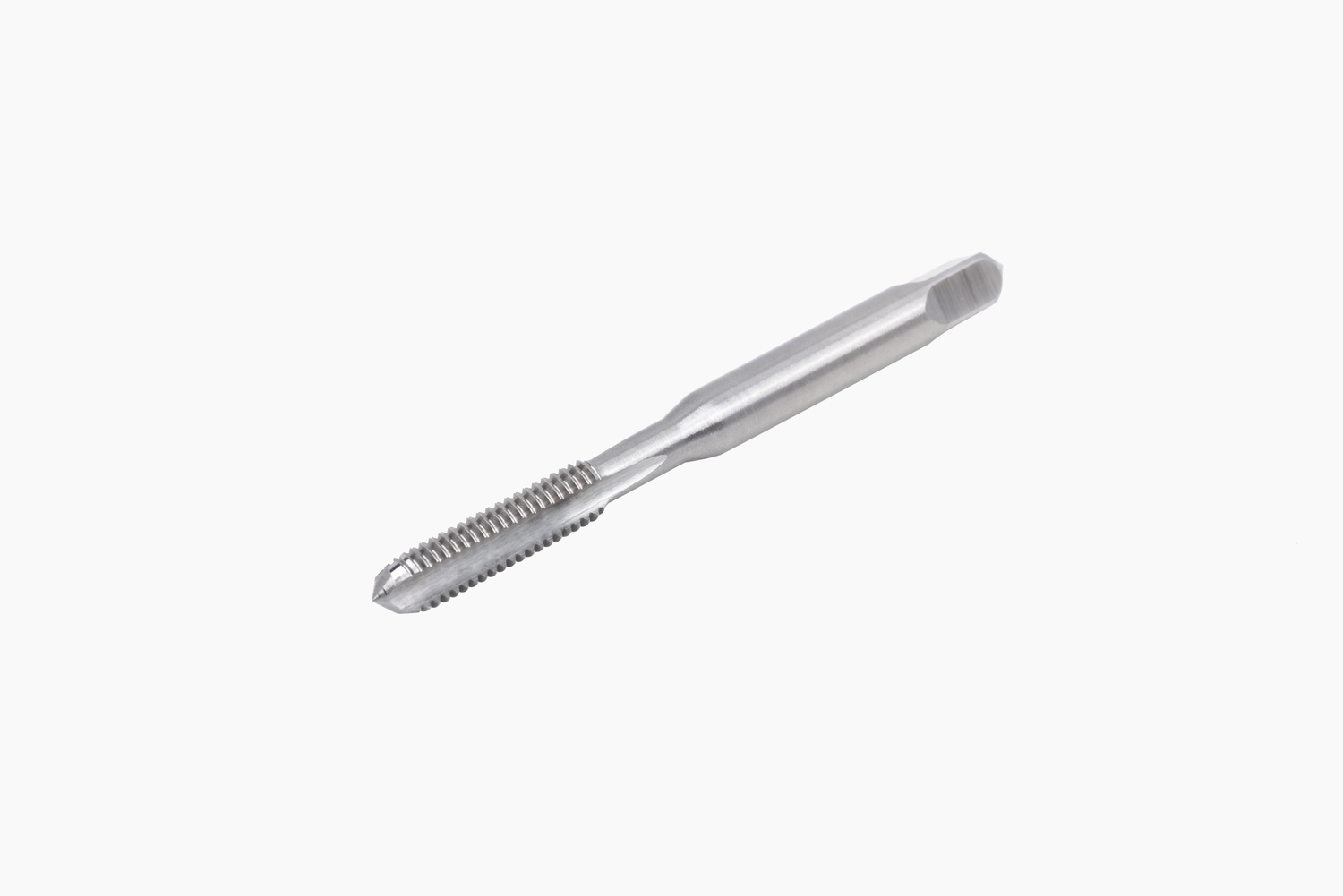

DORMER E559M3NO3 Professional HSS Taps

Description: Value
Product name: E559M3NO3
Thread diameter size (TDZ): 3
Thread pitch – millimeter (TP): 0.5 mm
Overall length – millimeter (OAL): 48 mm
Thread diameter – millimeter (TD): 3 mm
Threading length – millimeter (THL): 11 mm
Connection diameter – millimeter (DCON MS): 3.15 mm
Clamping width – millimeter (WSC): 2.5 mm
Clamping Length – millimeter (LSC): 5 mm
Flute count (NOF): 3
Premachined hole diameter – millimeter (PHD): 2.5 mm
Usable Length – millimeter (LU): 18 mm
