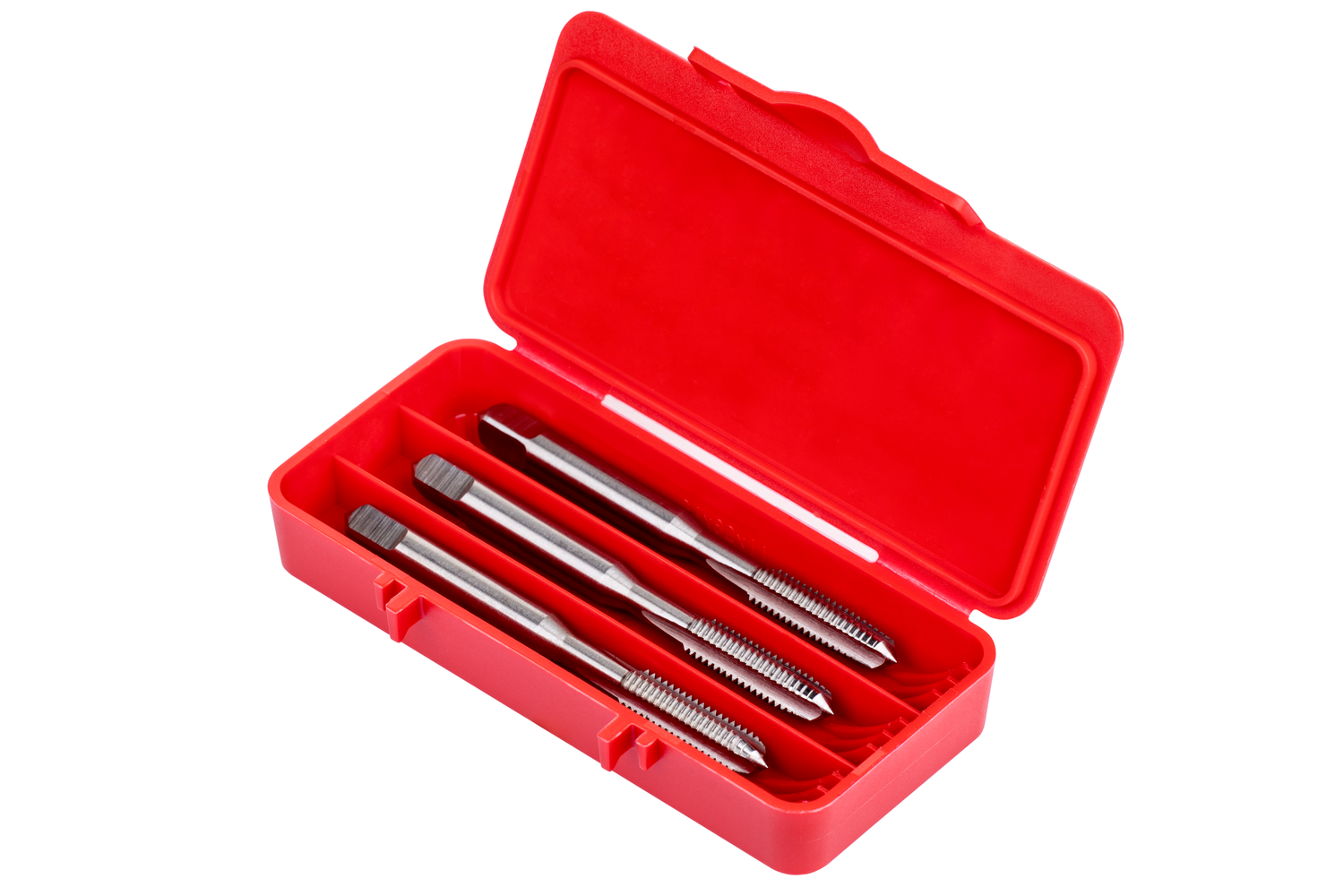

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E559UNC1/4NO6 Professional HSS Taps
$36.49$33.17 Ex. GST
Thread size UNC 0.25 inch – 20 TPI, with thread tolerance class 93707.
3603607151716
Description: Value Product name: E559UNC1/4NO6 Thread diameter size (TDZ): 1/4 Threads per inch (TPI): 20 Overall length – millimeter (OAL): 66 mm Thread diameter – millimeter (TD): 6.35 mm Threading length – millimeter (THL): 19 mm Connection diameter – millimeter (DCON MS): 6.3 mm Clamping width – millimeter (WSC): 5 mm Clamping Length – millimeter (LSC): 8 mm Flute count (NOF): 3 Premachined hole diameter – millimeter (PHD): 5.1 mm Usable Length – millimeter (LU): 30 mm
