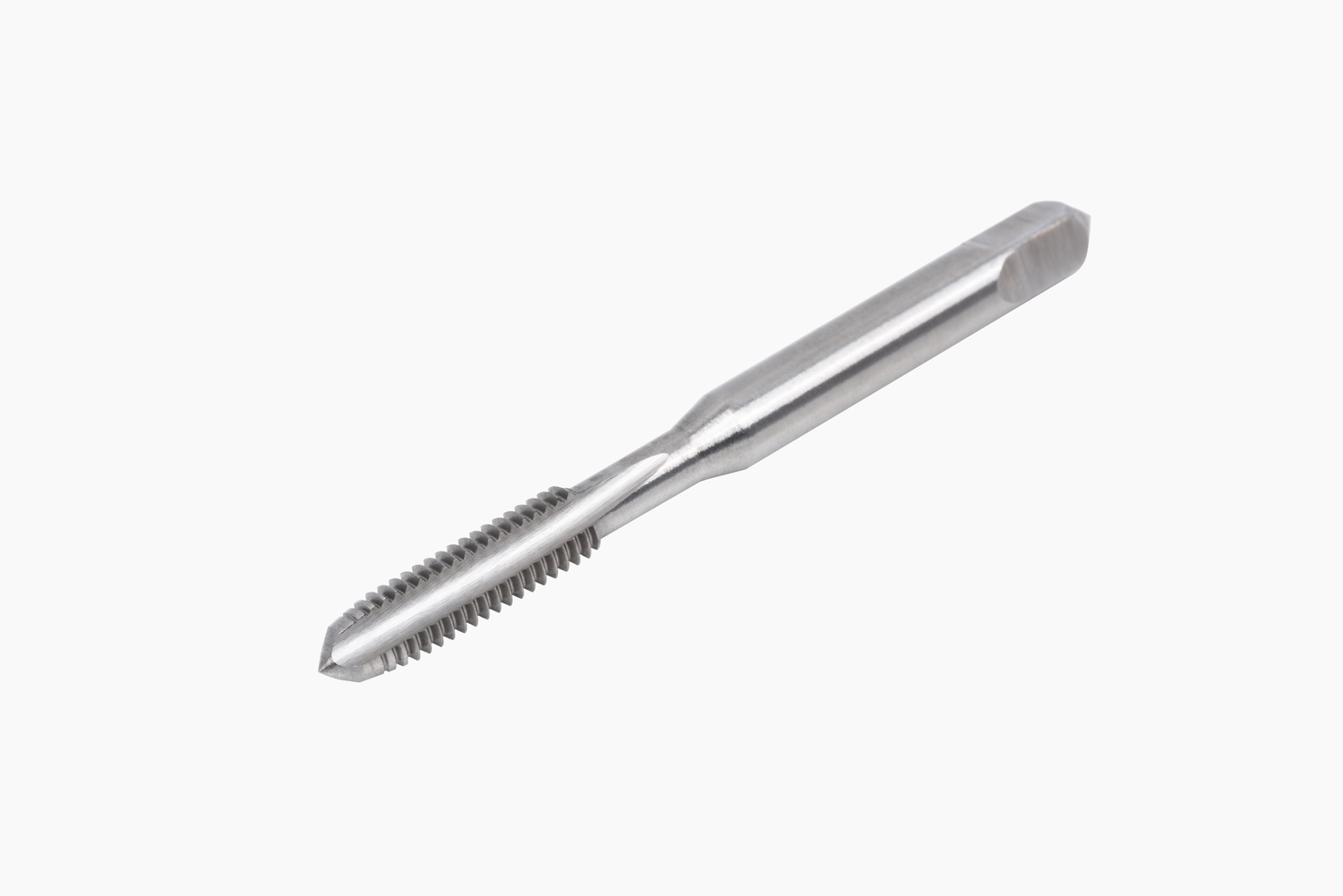

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E559UNC10X24NO2 Professional HSS Taps
$12.91$11.74 Ex. GST
Thread size UNC 0.19 inch – 24 TPI, with thread tolerance class 93707.
3603607151600
Description: Value Product name: E559UNC10X24NO2 Thread diameter size (TDZ): No.10 Threads per inch (TPI): 24 Overall length – millimeter (OAL): 58 mm Thread diameter – millimeter (TD): 4.826 mm Threading length – millimeter (THL): 16 mm Connection diameter – millimeter (DCON MS): 5 mm Clamping width – millimeter (WSC): 4 mm Clamping Length – millimeter (LSC): 7 mm Flute count (NOF): 3 Premachined hole diameter – millimeter (PHD): 3.9 mm Usable Length – millimeter (LU): 25 mm
